ID # 28378    CURRENT CATEGORY - VINTAGE

TWO (2) MCI JH-416 CONSOLES - 24 TRACK - NEEDS RESTORATION
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Listing last update on June 28, 2006 - Viewed 407 times

Click on thumbnail to enlarge

TWO (2) MCI JH-416 CONSOLES - 24 TRACK - NEEDS RESTORATION
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]

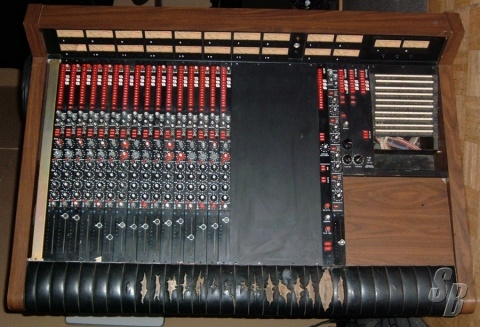

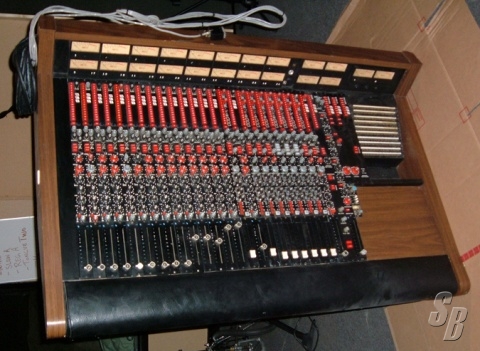

DESCRIPTION: MCI JH-416 (1972) (S#: TBD) SEE DESCRIPTION

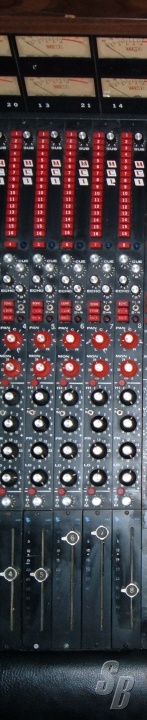

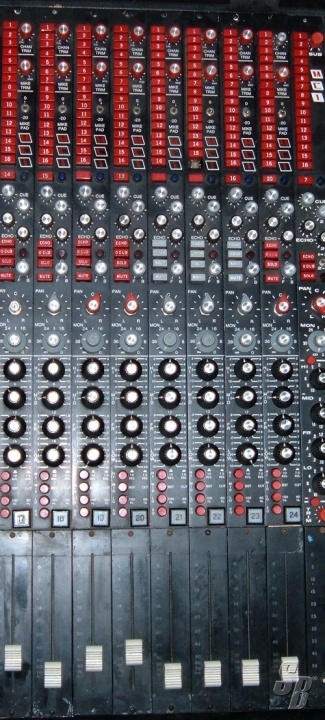

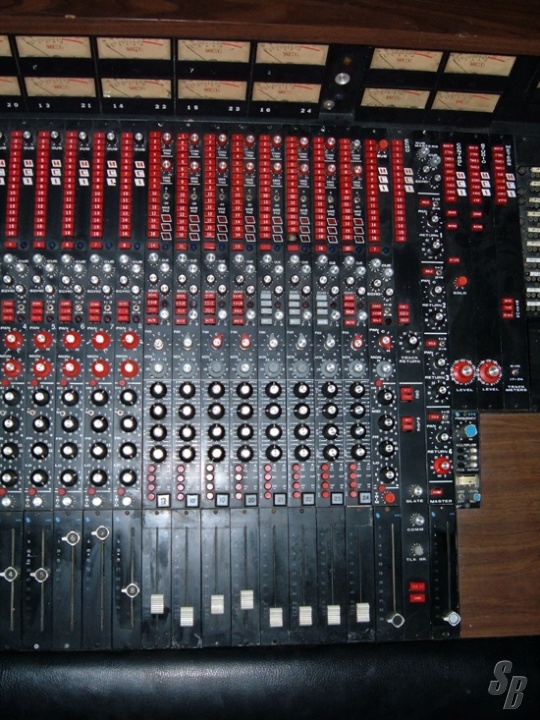

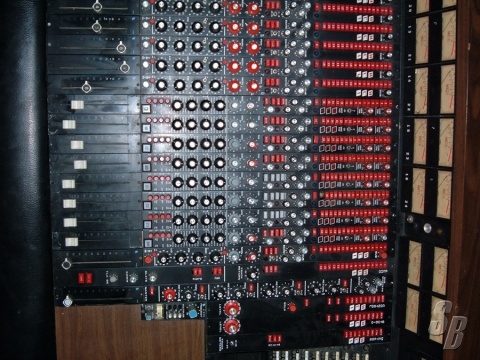

FEATURES: - TWO(2) MCI JH-416 CONSOLES (1 MAIN CONSOLE, OTHER FOR PARTS), FULL 24 TRACK OPERATION, 40 TOTAL MODULES (32 MODULES 416A W/API FADERS - 8 MODULES 416B W/P&G FADERS), 1 SET OF LEG STANDS, 1 SET OF POWER SUPPLIES (3 TOTAL, 1 WORKS, 2 NEED WORK), 48V PHANTOM POWER IN ONE CONSOLE, BUILT IN OSCILLATOR IN ONE CONSOLE, FULL 24X10 PATCH BAY, 22 VU METERS, MCI JH-400 SERIES WAS DESIGNED AS A COMPLETE RECORDING SYSTEM THAT REQUIRES ONLY MACHINES, MONITORS, MIKES, AND CHAMBERS BE CONNECTED FOR USE

EXTRAS: MODULE EXTENDER CARD (ALLOWS YOU TO TROUBLESHOOT MODULE WITH IT STILL PLUGGED INTO CONSOLE), I DON'T HAVE A MANUAL

MODIFICATIONS: ONE CONSOLE HAD WORK DONE YEARS AGO BY BLEVINS AUDIO IN NASHVILLE TN. NOT SURE WHAT WAS DONE OR WHAT WAS FIX, NIETHER DO THEY. I ASKED.

HISTORY: ONE CONSOLE CAME FROM NASHVILLE TN ACUFF ROSE STUDIOS, THE OTHER FLOATED AROUND SAN FRANCISCO STUDIOS FOR A WHILE TILL I ENDED UP WITH IT.

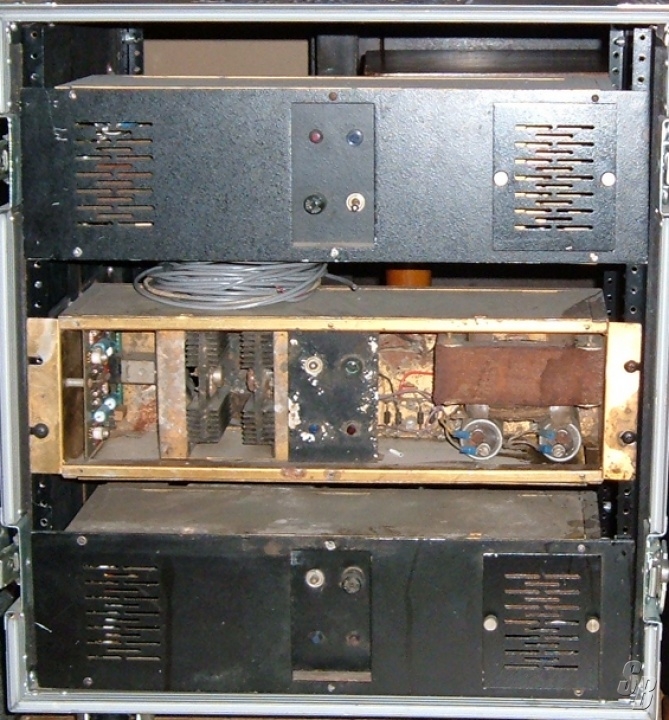

COMMENTS: THIS LISTING IS BEING SOLD AS ONE (1) ITEM. PARTS WILL BE NEEDED, AND THE OTHER CONSOLE HAS MORE THAN ENOUGH FOR RESTORATION. THIS IS NO PLUG AND PLAY, WORK WILL NEED TO BE DONE. I HAVE KEPT THESE CONSLOES SAFE AND IN A GOOD ENVIORNMENT SINCE I GOT THEM. BOTH CONSOLES NEED WORK TO BE FULLY RESTORED. BOTH CAN BE FIXED AND SOLD, OR ONE CAN BE FIXED AND THE OTHER KEPT FOR PARTS. I HAVE NOT TESTED THEM, THEY ARE BEING SOLD "AS IS" DUE TO AGE AND CONDITION. IF YOU HAVE THE TIME AND RESOURCES TO RESTORE THESE CONSLOES, THEY CAN STOP COLLECTING DUST AND START MAKING GREAT RECORDS AGAIN. THERE IS ONLY ONE SET OF POWER SUPPLIES. ONE WORKS THE OTHER TWO NEED TO BE FIXED OR BE REPLACED:THREE INTERCHANGEABLE POWER SUPPLIES ARE USED.
VOLTAGE OUTPUTS ARE DETERMINED BY CONNECTING
APPROPRIATE POWER CABLE FROM CONSOLE.
VOLTAGE: +21V DC OR +24V DC BIPOLAR
REGULATED TO LESS THAN +1% FOR INPUTS OF 95-135V AC AND OUTPUTS UP TO 3 AMPS LESS THAN 1 MV RIPPLE.
CURRENT: 3 AMPS NORMAL OUTPUT. CURRENT LIMITED TO 3.4 AMPS AT THIS POINT THE OUTPUT VOLTAGE GOES TO ZERO.

THIS UNIT WAS NEVER TOURED

SOLD AND PRICED ONLY AS A PAIR

Additional Details
ID#: 28378
Listing Type:
Standard
Model: JH416
Manufacturer: MCI
Condition: SEE DESCRIPTION
Shipping Info: 1100.00 lbs., W 63.60", D 39.65", H 38.45 EACH
Seller's Location: CA, USA
Updated: June 28, 2006
M.S.R.P.: $0.00
Asking Price: SOLD
