ID # 60639    CURRENT CATEGORY - VIDEO: SWITCHERS

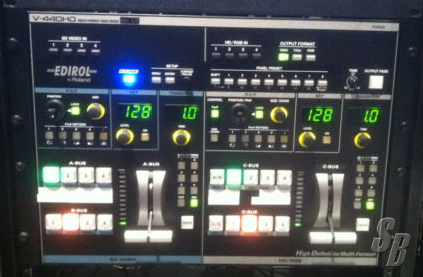

ROLAND V-440HD MULTI-FORMAT VIDEO MIXER EDIROL
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Listing last update on November 22, 2011 - Viewed 372 times

ROLAND V-440HD MULTI-FORMAT VIDEO MIXER EDIROL
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]



ROLAND V-440HD (YOM: 2011) (S#: TBD) LIKE NEW (9-10)

FEATURES: MIX MULTI-FORMAT SIGNAL
CAPABLE TO MIX SD VIDEO, HD VIDEO AND RGB SIGNAL FROM COMPUTERS. NTSC OR PAL OF SD VIDEO, 1080I OR 720P OF HD VIDEO, UPTO SXGA RESOLUTION OF RGB SIGNAL CAN BE INPUT.

OUTPUT MULTI-FORMAT SIGNAL
SELECTABLE OUTPUT FORMAT. 1080I OR 720P FOR HDTV AND RGB FOR COMPUTER DISPLAY.

SEAMLESS MIXING/SWITCHING
THANKS TO THE BUILT-IN UP CONVERTER AND SCAN CONVERTER, TOTALLY SEAMLESS MIXING OR SWITCHING OF DIFFERENT FORMAT SIGNAL IS POSSIBLE WITHOUT ANY EXTERNAL DEVICE OR ANY COMPLICATED OPERATION.

SIMPLE OPERATION OF EFFECTS
EXREMELY SIMPLE AND INTUITIVE OPERATION OF EFFECTS. TURNING DIAL TO SET KEY LEVEL OR PINP SIZE. JOYSTICK TO ADJUST PINP POSITION. DIAL TO SET TIME OF AUTO TRANSITION EFFECTS.

MULTIPLE UNITS CONNECTABLE
WITH THROUGH OUTPUT OF VIDEO SIGNAL AND MIDI CONNECTION, MULTIPLE UNITS CAN BE CASCADED FOR WIDE IMAGE (32:9 ETC) OUTPUT TO MULTIPLE SCREENS.

REMOTE CONTROLABLE
V-LINK MAKE THIS REMOTE CONTROLABLE FROM EXTERNAL ROLAND/EDIROL MUSIC INSTRUMENTS. REMOTE CONTROL FROM COMPUTER CONNECTED VIA RS-232C IS ALSO POSSIBLE.

EXTRAS: MANUAL, AND POWER CABLE.

MODIFICATIONS: SPECIFICATION
VIDEO PROCESSING
VIDEO FORMAT SD : NTSC OR PAL [CVBS, S (Y/C)]
HD : 1080/59.94I/50I SMPTE274M (Y/PB/PR TRILEVEL SYNC), 720/59.94P/50P SMPTE296M (Y/PB/PR TRILEVEL SYNC)
RGB INPUT : 640X480/60/75, 800X600/60/75, 1024X768/60/75, 1280X768/60/75, 1280X1024/60
* RGB VH: POSITIVE/NEGATIVE LOGIC
* VESA DMT VERSION 1.0 REVISION 10 CONFORM
RGB OUTPUT : 640X480/75, 800X600/60/75, 1024X768/60/75, 1280X768/60/75, 1280X1024/60, 1366X768/60/75
* VESA DMT VERSION 1.0 REVISION 10 CONFORM
640X480/60 (640X480/60 PIXEL RATE IS 25.0MHZ ( 0.014) IT MAY NOT BE DISPLAYED CORRECTLY, DEPENDING ON THE DISPLAY/PROJECTOR.)
VIDEO SAMPLING RATE SD : 4:2:2 (Y/CB/CR) 8-BIT 13.5 MHZ (BT.601)
HD : 4:4:4 (Y/PB/PR) 8-BIT 74.1758 MHZ / 74.25 MHZ
RGB : 4:4:4 (R/G/B) 8-BIT 25 MHZ TO 110 MHZ
EFFECTS VIDEO TRANSITION : CUT, MIX, WIPE (6 PATTERNS, REVERSE, SOFTEDGE)
COMPOSITION FX : PICTURE IN PICTURE, CHROMA KEY (BLUE/GREEN), LUMINANCE KEY (WHITE/BLACK), PICTURE IN PICTURE WITH ZOOM/PAN (HD/RGB SIDE)
MULTI-SCREEN PRESENTATION : 2 SCREENS X 1 LINE, 3 SCREENS X 1 LINE, 2 SCREENS X 2 LINE, 3 SCREENS X 2 LINES
SYNCHRONIZATION MULTIPLE UNITS BY MIDI
MASTER FADE : 0 TO 4 SECONDS BLACK OR WHITE
CONNECTORS
SD INPUT S-VIDEO (Y/C) PREFERENTIAL X 4 : 4 PIN MINI DIN TYPE (Y: 1.0 VP-P, C: 0.286 VP-P, 75 OHMS)
VIDEO (COMPOSITE) X 4 : BNC TYPE (1.0 VP-P, 75 OHMS)
HD/RGB INPUT * BNC TYPE OR D-SUB TYPE ARE IN/THRUOUT USE COMBINEDLY BNC TYPE X 4 : HD: Y/PB/PR (1.0 VP-P, 75 OHMS, TRILEVEL SYNC), RGB:R/G/B (0.7 VP-P, 75 OHMS), H (5VTTL), V (5VTTL)
D-SUB 15PIN SHRINK TYPE X 4 : HD: Y/PB/PR (1.0 VP-P, 75 OHMS, TRILEVEL SYNC, RGB:R/G/B (0.7 VP-P, 75 OHMS), H (5VTTL), V (5VTTL)
SD OUTPUT PGM S-VIDEO (Y/C) : 4-PIN MINI DIN TYPE (Y: 1.0 VP-P, C: 0.286 VP-P, 75 OHMS) PGM VIDEO (COMPOSITE) : BNC TYPE (1.0 VP-P, 75 OHMS)
PREVIEW (COMPOSITE) : BNC TYPE (1.0 VP-P, 75 OHMS), OSD MENU OUTPUT
HD OUTPUT PGM COMPONENT HD : BNC TYPE X 2 (1.0 VP-P, 75 OHMS, TRILEVEL SYNC)
PREVIEW COMPONENT HD : BNC TYPE (1.0 VP-P, 75 OHMS, TRILEVEL SYNC), OSD MENU OUTPUT (SELECTABLE DISPLAY
RGB OUTPUT PGM RGB : D-SUB 15 PIN SHRINK TYPE X 2 (R/G/B 0.7 VP-P, 75 OHMS, 5 VTTL SYNC)
PREVIEW RGB D-SUB 15 PIN SHRINK TYPE (0.7 VP-P, 75 OHMS, 5 VTTL SYNC), OSD MENU OUTPUT (SELECTABLE DISPLAY)
* COMPONENT & RGB OUTPUTS ARE SELECTABLE
REMOTE CONTROL SURFACE MIDI 5 PIN DIN TYPE (IN, OUT/THRU)
REMOTE TERMINAL (RS-232C D-SUB 9PIN
TALLY OUTPUT FOR SD SECTION D-SUB 15 PIN SHRINK TYPE, INPUT (MAX): 12 V, 200 MA OPEN COLLECTOR TYPE
FOR HD SECTION D-SUB 15 PIN SHRINK TYPE, INPUT (MAX): 12 V, 200 MA OPEN COLLECTOR TYPE
OTHERS POWER SUPPLY : AC 117 V, AC 230 V, AC 240 V (50/60 HZ), AC 220 V (60 HZ)
POWER CONSUMPTION 50W
SIZE AND WEIGHT
WIDTH 482 MM; 19 INCHES
DEPTH 308 MM; 12-1/8 INCHES
HEIGHT 130 MM; 5-1/8 INCHES
WEIGHT 6.8 KG; 15 LBS.

HISTORY: USED FOR 5 MONTHS. HAS BEEN STORED IN RACK THE ENTIRE TIME.

COMMENTS: EXCELLENT LIKE NEW CONDITION.

THIS UNIT WAS NEVER TOURED

Additional Details
ID#: 60639
Listing Type:
Standard
Model: V-440HD
Manufacturer: ROLAND
Condition: LIKE NEW (9-10)
Shipping Info: 15.00 lbs.,
Seller's Location: IL, USA
Updated: November 22, 2011
M.S.R.P.: $8,899.95
Asking Price: SOLD
