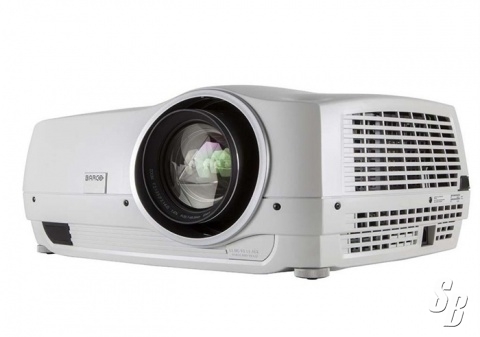

BARCO CRPN-52B PROJECTOR DLP PROJECTOR
[PRICED PER UNIT - 0 AVAILABLE AT TIME OF LISTING]
Listing last update on June 03, 2015 - Viewed 67 times

BARCO CRPN-52B PROJECTOR DLP PROJECTOR R9021001


PRODUCT SPECIFICATIONS
CRPNï½­52B
PROJECTOR TYPE
PANORAMA SINGLEï½­CHIP DLP PROJECTOR
TECHNOLOGY
LVDC DMD WITH DARKCHIP3
RESOLUTION
2,560 X 1,080 (PANORAMA)
BRIGHTNESS
5,000 LUMENS
CONTRAST RATIO
6,500:1
BRIGHTNESS UNIFORMITY
>90%
ASPECT RATIO
21:9 (2,37:1) PANORAMA
LENSES
ALL PURE GLASS LENSES: 0.8:1 EN42 WIDE ANGLE LENS; 0.8ï½­1.21:1 EN46 ULTRA WIDE
ZOOM LENS; 1.2ï½­1.7:1 EN43 WIDE ANGLE LENS; 1.7ï½­2.5:1 EN41 STANDARD ZOOM
OPTICAL LENS SHIFT
VERTICAL: ï½­222% TO +222%; HORIZONTAL: ï½­78% TO +78% (ON ZOOM LENSES)
COLOR CORRECTION
REALCOLOR
LAMPS
2 X 300W UHP VIDI
LAMP LIFETIME
UP TO 2,000 HOURS (FULL POWER) / UP TO 2,500 HOURS (ECO MODE)
LAMP WARRANTY (FIELD REPLACE/ FACTORY REPLACE)
500 HOURS OR 90 DAYS
SEALED DLP CORE
YES
ORIENTATION
TABLE ï½­ CEILING
INTEGRATED WEB SERVER
YES
3D
PASSIVE POLARIZED AND INFITEC (2 PROJECTORS)
INPUTS
2 X DVIï½­I; 2 X HDMI 1.3A; 2 X VGA; VIDEO INPUTS; 1 X COMPONENT; 1 X
Sï½­VIDEO
INPUT RESOLUTIONS
UP TO 2,560 X 1,600 PIXELS INPUT ON ALL MODELS. OUTPUT RESOLUTION DEPENDS ON
NATIVE RESOLUTION; HDTV (1080P, 1080I, 720P); EDTV (576P, 480P); SDTV (576I,
480I); NTSC, PAL, SECAM; PROGRESSIVE SCAN
MAX. PIXEL CLOCK
165 MHZ
SOFTWARE TOOLS
PROJECTOR TOOLSET, PRONET
CONTROL
1 X RJï½­45 TCP/IP; 1 X 9ï½­PIN Dï½­SUB RS232; 2 X 12V PROGRAMMABLE TRIGGER (3.5MM
MINI JACK); 1 X WIRED REMOTE 3.5MM MINI JACK; 2 X USB
NETWORK CONNECTION
10/100 BASEï½­T, RJï½­45 CONNECTION
POWER REQUIREMENTS
100ï½­240V / 50ï½­60HZ
MAX. POWER CONSUMPTION
912W
NOISE LEVEL (TYPICAL AT 25ï½°C/77ï½°F)
40.9DB (ISO 9296)
OPERATIONAL AMBIENT TEMPERATURE
10ï½­40ï½°C / 50ï½°ï½­104ï½°F
OPERATIONAL HUMIDITY
20ï½­80% RH
DISSIPATION BTU
MAX 3,109 BTU/H
DIMENSIONS (WXLXH)
510 X 233 X 376 MM / 20.08 X 9.17 X 14.80 INCHES
WEIGHT
12.7 KG (28.0 LBS)
SHIPPING DIMENSIONS (WXLXH)
520 X 370 X 780 MM / 20.47 X 14.57 X 30.71 INCHES
SHIPPING WEIGHT FROM FACTORY
20 KG (44 LBS)
STANDARD ACCESSORIES
POWER CORD, WIRELESS REMOTE CONTROL
CERTIFICATIONS
COMPLIANT WITH FCC, PART 15 CLASS A AND CCC, CCSAUS, CUL, UL AND CE

HTTP://WWW.BARCO.COM/EN/PRODUCTS-SOLUTIONS/PROJECTORS/BUSINESS-PROJECTORS/5000-LUMENS-PANORAMA-SINGLE-CHIP-DLP-PROJECTOR.ASPX?TAB=SPECS

HTTP://WWW.BARCO.COM/EN/SPECSHEETS/35C8013D-A10D-493A-BF14-75F68687D957/CRPN-52B.PDF

LIMITED MANUFACTURER'S WARRANTY, FOB, LAS VEGAS, NV.
