ID # 101301    CURRENT CATEGORY - TEST EQUIPMENT

For Sale: LECTROSONICS TM400 TEST AND MEASUREMENT SYSTEM
[PRICED PER UNIT - NEW FROM MANUFACTURER - CALL FOR AVAILABILITY]
Listing last update on September 27, 2017 - Viewed 968 times

LECTROSONICS TM400 TEST AND MEASUREMENT SYSTEM

LECTROSONICS TM400 TEST AND MEASUREMENT SYSTEM

*SYSTEM DOES NOT INCLUDE MICROPHONE

  • REPLACES LONG CABLE BETWEEN CALIBRATED MICROPHONE AND TEST EQUIPMENT
  • 24-BIT, 88.2 KHZ DIGITAL SIGNAL HANDLING FOR COMPANDOR-FREE AUDIO
  • 256 SYNTHESIZED UHF FREQUENCIES FOR WIDE CHOICE OF TUNINGS TO AVOID INTERFERENCE
  • RUGGED ALL-METAL CONSTRUCTION
  • RECEIVER:
    • LOW NOISE, ROBUST RF FRONT END
    • BALANCED XLR AUDIO OUTPUT
    • SMARTTUNING™ WITH GRAPHIC DISPLAY FOR EASY SELECTION OF CLEAR RF FREQUENCIES
  • TRANSMITTER:
    • CONVERTS MICROPHONES WITH XLR JACKS TO WIRELESS OPERATION
    • SELECTABLE 5, 18, 48 VOLT POWERING
    • 100 MW RF OUTPUT POWER FOR LONG RANGE
    • MEMBRANE SWITCH CONTROL PANEL WITH LCD DISPLAY

THE TM400 SYSTEM WAS DESIGNED TO PROVIDE THE IDEAL LINK BETWEEN CALIBRATED TEST MICROPHONES AND MEASUREMENT EQUIPMENT SUCH AS SIM®, SIA SMAART LIVE®, TEF® OR OTHER SYSTEMS. BY USING A RADIO LINK, LONG CABLES CAN BE ELIMINATED THUS SAVING TIME AND PROVIDING OPPORTUNITIES FOR ADDITIONAL MEASUREMENTS TO INCREASE ACCURACY. THE MICROPHONE CAN EVEN BE MOVED AROUND IN THE VENUE WHILE THE AUDIENCE IS PRESENT – SOMETHING THAT IS IMPOSSIBLE WITH A CABLED MEASUREMENT MICROPHONE.

LECTROSONICS DIGITAL HYBRID WIRELESS™ (U.S. PATENT PENDING) USES A PROPRIETARY ALGORITHM TO ENCODE THE DIGITAL AUDIO INFORMATION INTO AN ANALOG FORMAT WHICH CAN BE TRANSMITTED IN A ROBUST MANNER OVER AN ANALOG FM WIRELESS LINK. THIS COMBINATION OFFERS THE SUPERB AUDIO QUALITY OF A PURE DIGITAL SYSTEM AND THE OUTSTANDING OPERATING RANGE OF THE FINEST FM WIRELESS SYSTEMS. THE DIGITAL AUDIO CHAIN ELIMINATES COMPANDOR ARTIFACTS, AND PROVIDES AUDIO FREQUENCY RESPONSE FLAT TO 20 KHZ. THE RF LINK TAKES ADVANTAGE OF THE SPECTRAL EFFICIENCY CHARACTERISTICS OF AN AGGRESSIVELY OPTIMIZED FM RADIO SYSTEM.

THIS DIGITAL/ANALOG HYBRID TECHNIQUE HAS SOME VERY BENEFICIAL PROPERTIES. BECAUSE THE INFORMATION BEING TRANSMITTED IS DIGITALLY ENCODED, USEABLE DYNAMIC RANGE IS MUCH HIGHER THAN A COMPANDOR CAN OFFER AND THERE IS NO COMPANDOR IN THE AUDIO SIGNAL TO INTERFERE WITH YOUR MEASUREMENTS.

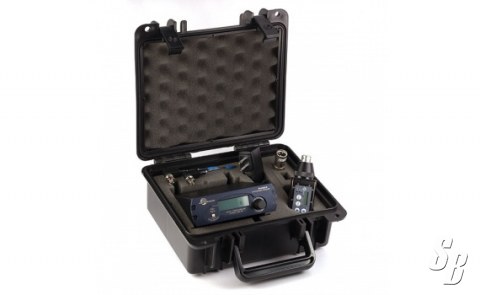

THE TM400 SYSTEM COMES STANDARD WITH THE HMA TRANSMITTER, R400A RECEIVER, AND CCTM400 WATER-RESISTANT CASE. HOWEVER, THE COMPONENTS CAN BE ORDERED SEPARATELY. ALSO, THE R400A RECEIVER CAN BE ORDERED WITH A RACK-MOUNT FRONT PANEL, AT AN ADDITIONAL COST.

INCLUDED IN SYSTEM:

HMA (SPECIFY A, B1, C1 FREQUENCY RANGE)

    • 2 - AA ALKALINE BATTERIES
    • 1 - HM POUCH (PART #PHTRAN3)
    • 1 - QUICKSTART GUIDE

R400A

    • 1 - POWER SUPPLY (PART #DCR12/A4U)
    • 2 - ANTENNAS (PART #A500RAXX)
    • 4 - RUBBER FEET (PART #35664)
    • 1 - MANUAL

MCA-M30 - MIC ADAPTER FOR EARTHWORKS M30 WITH HM OR UH400A/TM

CCTM400 - WATERPROOF CASE

* USE WITH CALIBRATED TEST MICS AND ANALYSIS SOFTWARE

BRAND NEW WITH FULL FACTORY WARRANTY, FOB NM, USA.

WWW.SOUNDBROKER.COM  LINKING BUYERS AND SELLERS TOGETHER SINCE 1997 FOR NEW AND USED PROFESSIONAL AUDIO, LIGHTING, STAGING, PROJECTORS, AND VIDEO EQUIPMENT.

Additional Details
ID#: 101301
Listing Type:
Standard
Model: TM400 TEST MEASURE
Manufacturer: LECTROSONICS
Condition: MFG A STOCK
Shipping Info: 0.00 lbs.,
Seller's Location: NM, USA
Updated: September 27, 2017
M.S.R.P.: $0.00
Offered at: Contact Us
CONSUMER ALERT

Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device.

This particular wireless microphone device operates in portions of the 617-652 MHz or 663-698 MHz frequencies. Beginning in 2017, these frequencies are being transitioned by the Federal Communications Commission (FCC) to the 600 MHz service to meet increasing demand for wireless broadband services. Users of this device must cease operating on these frequencies no later than July 13, 2020. In addition, users of this device may be required to cease operations earlier than that date if their operations could cause harmful interference to a 600 MHz service licensee’s wireless operations on these frequencies.

Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888- CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC’s wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones.

To operate wireless microphone systems at power greater than 50mW, you must qualify as a Part 74 user and be licensed.

NOTE – This has not changed at all and has been in effect for over 20 years. If you qualify and wish to apply for a license go to:

http://www.fcc.gov/Forms/Form601/601.html

Look under BROADCAST AUXILIARY – Land Mobile (Part 74) You will need forms FCC 601 Schedule d and Schedule H

From the FCC docket 10-16 – Page 7 – (boldface has been added by us)

10. Under Section 74.832, only certain entities may be issued licenses authorizing the use of low power auxiliary stations. In particular, these entities fall within the following categories: (1) licensees of AM, FM, TV, or International broadcast stations or low power TV stations; (2) broadcast network entities; (3) certain cable television system operators; (4) motion picture and television program producers as defined in the rules; and (5) certain entities with specified interests in Broadband Radio Service (BRS) and Educational Broadcast Service (EBS) licenses, i.e., BRS licensees (formerly licensees and conditional licensees of stations in the Multipoint Distribution Service and Multi-channel Multipoint Distribution Service), or entities that hold an executed lease agreement with a BRS licensee or conditional licensee or entities that hold an executed lease agreement with an Educational Broadcast Service (formerly Instructional Television Fixed Service) licensee or permittee.25 Cable television operations, motion picture and television program producers may be authorized to operate low power auxiliary stations only in the bands allowed for TV broadcasting.26 All classes of broadcast auxiliary stations provided for in Subpart H, except wireless video assist devices (WVADs), may be operated on a short term basis under the authority conveyed by a Part 73 license or a broadcast auxiliary license without prior authorization, subject to conditions.
