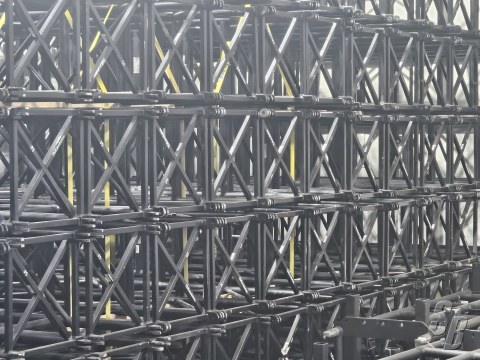

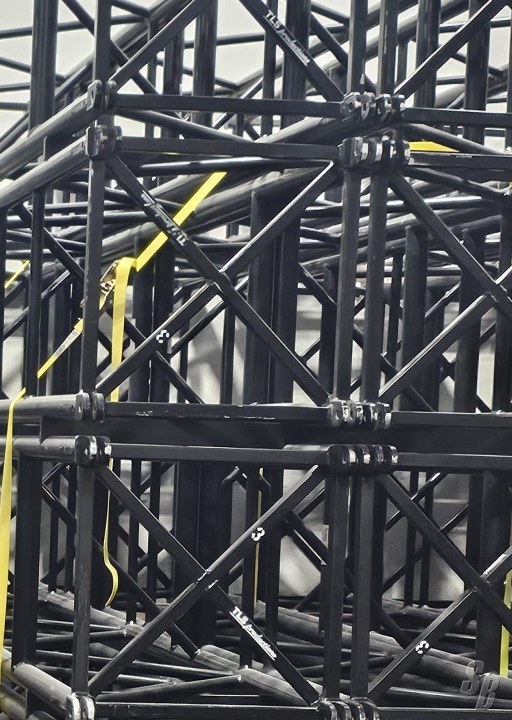

For Sale: SUPERTRUSS 20.5" X 20.5" BOX TRUSS METRIC LENGTH 3M JTE
[PRICED PER UNIT - 148 AVAILABLE AT TIME OF LISTING]
Listing last update on March 11, 2024 - Viewed 62 times

JAMES THOMAS B2030M - CUSTOM (YOM: 2007) (S#: TBD) SUPERB (8-9):

THOMAS HAS RETHOUGHT TRUSS DESIGN TO ENCOMPASS THE CHANGING DEMANDS OF THE TOURING INDUSTRY.

• THE SUPERTRUSS DESIGN FEATURES NEW DOUBLE END CONNECTORS, WHICH ARE ORIENTATED SO THAT THE TRUSS ELEMENTS ARE UNISEX (THEY CAN BE USED EITHER WAY).
• MADE FROM 6061T6 OR 6082T6 ALLOY, THE TRUSS HAS 2“ X 0.157“ MAIN CHORD TUBES AND 1“ X 0.125“ DIAGONAL TUBES. SUPERTRUSS SAVES TRUCK SPACE BECAUSE OF ITS VERY HIGH STRENGTH IN RELATION TO ITS SIZE AND ALSO THE SPACE SAVING DESIGN OF THE CORNERS.
• THE CORNERS ARE SIMPLICITY THEMSELVES.
  • THE 2 WAY CORNER, ONLY A CONNECTING GATE IS REQUIRED TO BRACE BETWEEN THE OUTER FORK CONNECTORS.
  • THE 3 WAY CORNER ONLY REQUIRES A CONNECTING GATE AND 2 SQUARE CONNECTING PLATES.
  • THE 4 WAY CORNER REQUIRES JUST  2 SQUARE CONNECTING PLATES.
• IN ORDER TO USE THE SUPERTRUSS WITH TOWERS, 2 SLEEVE CONNECTING PLATES WITH ROLLER WHEELS ARE REQUIRED WITH 1 OR 2 LADDERS DEPENDING ON HOW MANY TRUSS CONNECTIONS THERE ARE.
  • 600 CORNERS REQUIRE 2 EXTENDED DOUBLE FORK CONNECTORS AND A CONNECTING GATE.
  • OTHER ANGLES CAN BE EASILY MADE TO ORDER.
  • VARIABLE AND VERTICAL CONNECTING FORKS ARE AVAILABLE FOR 0 - 900 OPERATION.

EXTRAS:

4- PINS AND R CLIPS

MODIFICATIONS:

UNITS ARE METRIC IN LENGTH ONLY.

WILL MATE TO STANDARD JTE ST 20.5" BOX TRUSS.

HISTORY:

AUTOSHOW

COMMENTS:

ALL TRUSS IS BLACK

THIS UNIT WAS NEVER TOURED
