42' X 40' STAGE, ROOF AND LIGHTING
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Listing last update on April 04, 2010 - Viewed 100 times

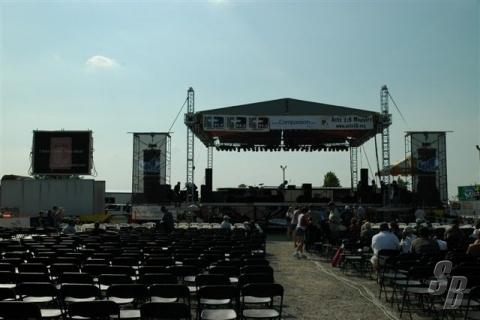

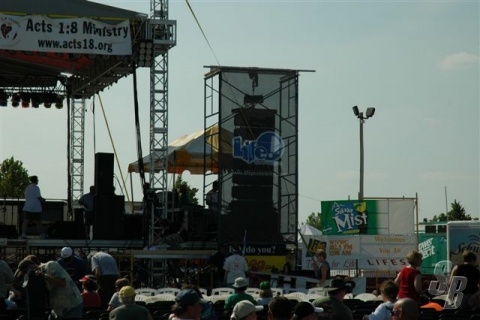

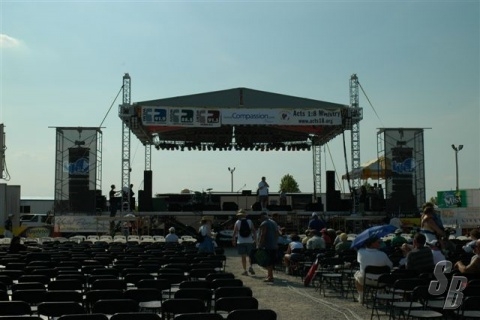

I HAVE A 42 FT X 40 FT STAGE WITH 21' X 15' SOUND WINGS OR IT COULD BE CONFIGURED 63' X 40' W/O SOUND WINGS.

IT USES STANDARD 5' X 7' WACO SCAFFOLD IN ANY HEIGHT YOU WANT, 2' TO 6'. IT COMES WITH 5' WACO SCAFFORD AND ALL THE SCREW JACKS NEEDED.

VERY SIMPLE TO SETUP, AFTER YOU SET THE SCAF AND LEVEL IT, YOU DROP ALUMINUM BEAMS WITH 5" PEGS INTO THE SCAF LEGS AND LAY 3.5' X 5' PANELS THAT WIEGHT ABOUT 45 LBS EACH ONTO THE BEAMS. THE BEAM HAS WHAT WE CALL A SHARKS FIN THAT STICKS UP THE HIEGHT OF THE THICKNESS OF THE STAGE PANEL ON TOP OF IT, THIS SEPARATES THE ROWS OF PANELS AND HOLDS THEM IN PLACE.

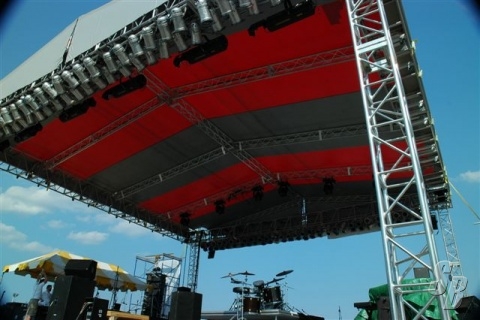

ALSO IN THE PACKAGE IS A 43' X 43' ROOF, MADE UP OF DOUBLE HUNG TOM CAT/THOMAS TRUSS 30" X 26" X 93" WITH A PITCH KIT. IT CAN BE SETUP EITHER FLAT ROOF OR PITCHED. THE TRUSS UP AND DOWN STAGE ARE LOADED W/ 60K OF PAR CANS, 120K TOTAL, WITH ALL THE SOCAPEX CABLE TO WIRE IT UP AND 2 - 36 CHANNEL DIMMER PACKS WITH CAE LEPRICON LB-2400 DIMMERS, 144K OF DIMMING TOTAL. ALSO HAVE A FAT FROG 48 CHANNEL DMX LIGHTING CONSULE AND DMX512 CONVERTER FOR THE RACKS.

THE LIFT SYSTEM IS A 4 TOWER ALLIED LIFT SYSTEM W/ 4 CM ONE TON 60 FT CHAIN MOTORS AND CONTROLLER.

THIS IS A COMPLETE STAGE, ROOF AND LIGHT PACKAGE WITH EVERYTHING NEEDED TO SET IT UP AND OPERATE IT EXCEPT THE 4/0 FEEDER CABLE TO POWER THE DIMMER RACKS.
