ID # 34222    CURRENT CATEGORY - STAGE/MOBILE_STAGE

For Sale: PHOENIX 60'X48' ROOF & STAGE SYSTEM
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Listing last update on January 11, 2016 - Viewed 2995 times

PHOENIX 60'X48' ROOF & STAGE SYSTEM


THE PHOENIX ROOF

HISTORY:
THE ORIGINAL DESIGN OF THE PHOENIX ROOF GOES BACK TO 1978 AND WAS A TFA - TOM FIELDS & ASSOCIATES DESIGN THAT WAS FABRICATED BY MIKE BROWN IN CALIFORNIA.

IF YOU KNOW THE HISTORY OR ORIGIN OF LARGE OUTDOOR ROCK EVENTS DOMESTICALLY, TFA WAS AT THE FOREFRONT OF DESIGN AND MIKE BROWN WAS PARTNERED EARLY ON TO FABRICATE AND ERRECT THEIR VISIONS.

THE ORIGINAL PHOENIX ROOFS HAD THREE CROSS STAGE SUPPORT TRUSSES.

DESCRIPTION:

THIS PHOENIX ROOF IS 60'X48' AND CAN BE RAISED TO 40' ABOVE THE STAGE DECK. ONCE LOCKED INTO PLACE, IT IS LOAD BEARING UP TO 40,000 LBS AND IS RAISED WITH 8 - 2 TON CM LOADSTARS CHAIN HOISTS.

FEATURES:

* STAGE SIZE - 60'X48'X'6'
* WING SIZE 32'X48'X6'

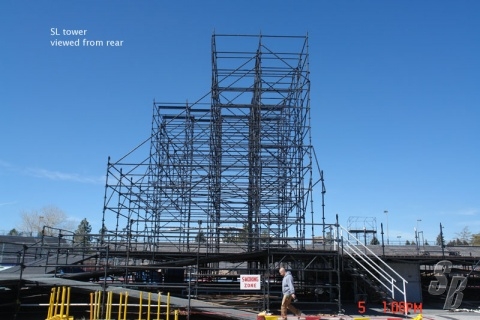

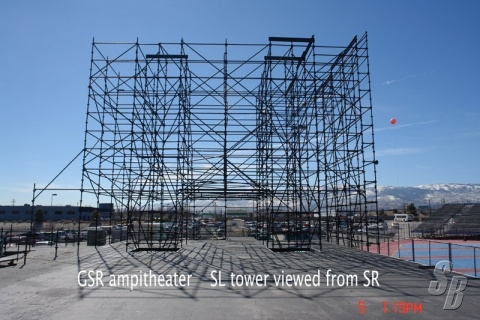

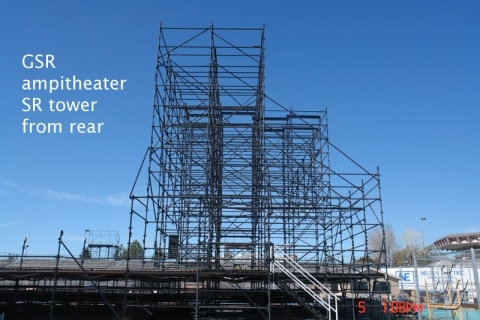

* TOWER HEIGHT APPROX 50'

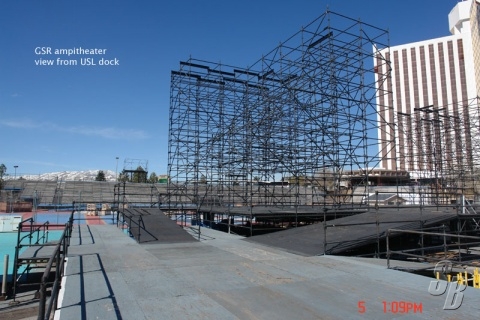

* UP STAGE LOADING DOCK 40'X40'


PLEASE NOTE: ESTIMATED KWIKFORM PART COUNTS.

SCREW JACKS:
252 PIECES.

SPACERS:
8' SPACERS 1500
4' SPACERS 202
2' SPACERS 140

PLAN BRACING:
12' W/SWIVEL CLAMPS 72
10' W/SWIVEL CLAMPS 68
10'6" W/SWIVEL CLAMPS 30
10'8" 45 DIAGONAL BAY STIFFENERS 19
11'3" SWIVEL CLIPS 17
12' SWIVEL CLIPS 67

UPRIGHTS:
CUT FOR STAGE
9'6" - 381
6'6" - 32 PCS.
4' 20 PCS.
2' - 60 PCS.
1' SPECIAL CUT UNITS 40 PCS.

HEADERS:
8' STANDARD
8' REINFORCED / DOUBLE STEEL 8 PCS.
8' ANGLE RAMP HEADERS 10 PCS.

COMMENTS

THIS UNIT BUILT BY REED IN PORTLAND, OR HAS FIVE SUPPORT TRUSSES (11 BAYS) AND FOUR MOTOR LIFT POINTS ON EITHER SIDE.

ROOF MEASURES 60’X 48’

THE ALL ALLUMINUM ROOF WEIGHS APPROX 8,000 POUNDS.

WITH 8 - 2 TON CM LOADSTAR HOISTS, THE LIFTING CAPACITY IS 32,000 LBS.

ONCE THE ROOF IS AT TRIM, ROCKER PLATES ARE INSTALLED IN ALL 8 MOTOR BAYS AND THEN THE ROOF CAN SUPPORT APPROX 40,000 LBS IN ADDITION TO ITS OWN WEIGHT.

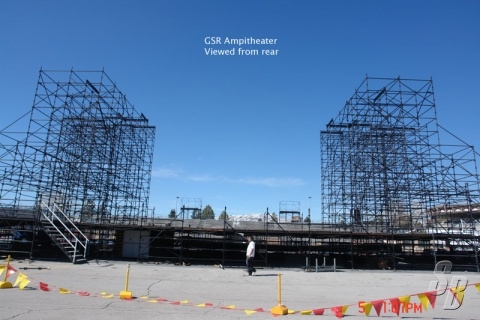

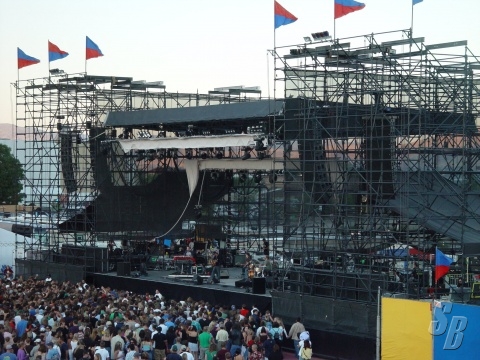

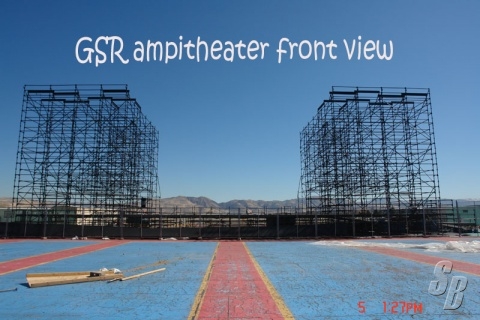

THIS UNIT WAS BUILT AND INSTALLED INITIALLY AT THE CALIFORNIA EXPO AND THEN RELOCATED A FEW YEARS LATER AT THE RENO HILTON.

IT HAS BEEN USED ONLY IN THESE TWO LOCATIONS.

WE WILL PROVIDE PURCHASER W/ENGINEERING CALCULATIONS AND SET OF VELLUM PLANS.

THE SCAFFOLDING IS BLACK AND IN EXCELLENT CONDITION, AS IS THE ALUMINUM ROOF.

THE ROOF SKIN (BLUE) LOOKS GOOD, STORED INDOORS AND FOLDED ON A PALLET.


THE BLOW-THROUGH SCRIM LIKE MATERIAL FOR THE STAGE SKIRT, SOUND WINGS AND BACKDROP ARE ALSO FOLDED AND ON PALLETS. THEY LOOK A BIT WEATHERED ON THE OUTSIDE FROM SUN BUT MAY BE FINE ONCE OPENED EXCEPT FOR THE TOP OF THE FOLD THAT WAS EXPOSED TO THE SUN.

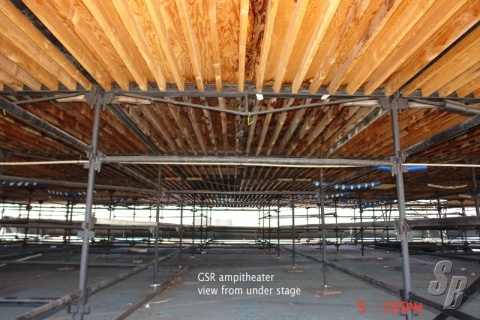

THERE ARE NO STAGING DECKS - THE 4’X8’ ¾” PLYWOOD DECKS SUPPORTRED BY 2X4 STRINGERS WOULD HAVE TO BE BUILT ON SITE ONCE THE STRUCTURE IS ERECTED.


LOCATION:
TRANSPORT FOB LAS VEGAS, NEVADA

* IT WILL TAKE 4 - 53’ FLATBEDS TO TRANSPORT ALL THE STEEL AND ROOF

** IF REQUESTED WE CAN ARRANGE THE TRANSPORT AND AN EXPERIENCED SUPERVISOR ON SITE FOR THE INITIAL BUILD FOR AN ADDITIONAL FEE
