MARTIN WMX HYBRID HORN AND REFLEX LOADED SUBWOOFER
[PRICED PER UNIT - NEW FROM MANUFACTURER - CALL FOR AVAILABILITY]
Listing last update on January 05, 2016 - Viewed 55 times

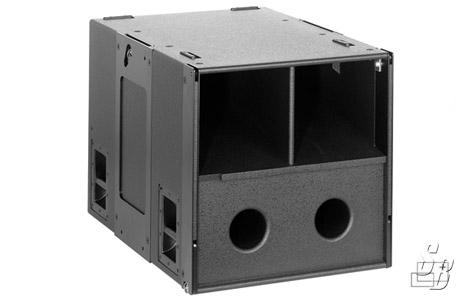

MARTIN WMX HYBRID HORN AND REFLEX LOADED SUBWOOFER

THE MARTIN AUDIO WMX IS A COMPACT, HIGH PERFORMANCE FLOWN OR GROUND STACKED SUBWOOFER FEATURING OUR TRADEMARK HYBRID® LOADING. PRIMARILY INTENDED FOR USE WITH THE W8LM/W8LMD, IT SHARES THE SAME CABINET WIDTH AND IS DIRECTLY COMPATIBLE WITH THE W8LM AND ITS FLYING HARDWARE.

A SINGLE LONG-EXCURSION 18" (460MM)/ 4" (100MM) COIL DRIVER IS FRONT LOADED BY A HYPERBOLIC HORN WITH AN ULTRA-LOW FLARE RATE. THE REAR OF THE DRIVER IS REFLEX LOADED TO EXTEND THE LF OUTPUT TO BELOW THE NATURAL CUT-OFF POINT OF THE HORN. THIS HYBRID® TECHNIQUE MARRIES THE VERY HIGH EFFICIENCY OF HORN LOADING WITH THE EXTENDED LOW FREQUENCY RESPONSE OF A REFLEX ENCLOSURE.

FEATURES
VERY HIGH OUTPUT COMPACT HYBRID® FOLDED HORN/REFLEX LOADED SUBWOOFER.
SINGLE 18" (460MM) ULTRA-LONG EXCURSION HIGH POWER DRIVE UNIT
FREQUENCY RESPONSE 35HZ-150HZ ± 3DB (-10DB @ 28HZ)
104DB 1W/1M
FAST INTEGRAL RIGGING SYSTEM
COMPATABLE WITH W8LM AND W8LMD LINE ARRAY ELEMENTS
CAN BE GROUND STACKED OR FLOWN
SOCKET FOR POLE MOUNTED W8LMD

MANUFACTURERS A STOCK, BRAND NEW WITH FULL WARRANTY
