For Sale: SOUNDBRIDGE SLICE WEDGES / MOBILE PA (WITH AMPS/PROCESSOR/CABLES)
[PRICE SHOWN FOR THE ENTIRE CONTENT OF THIS LISTING]
Listing last update on February 25, 2022 - Viewed 305 times

SOUNDBRIDGE SLICE WEDGES / MOBILE PA (YOM: ?) (S#: TBD) GOOD (7-8) FEATURES:

HIGH-PERFORMANCE MONITOR WEDGES

INCLUDES:

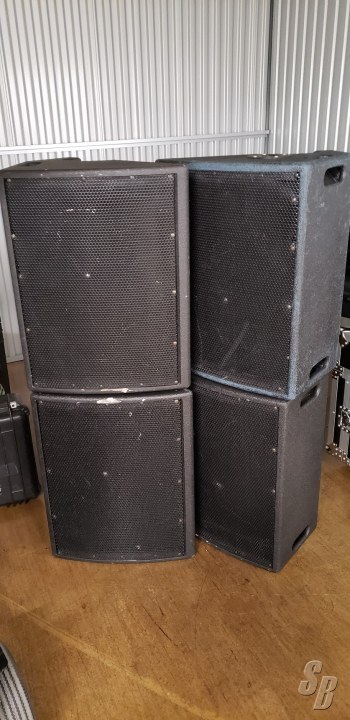

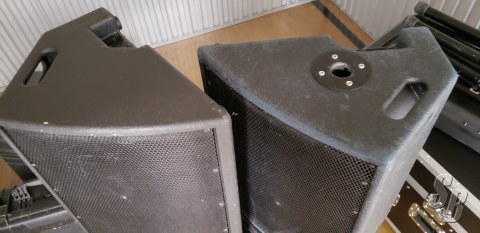

• 4 QTY. 7122WX SOUND BRIDGE SLICES (BI-AMPED) - ALL 4 WITH SPEAKER MOUNT POLE (GEN 4, CURRENTLY ON GEN 5 AS OF 2020)

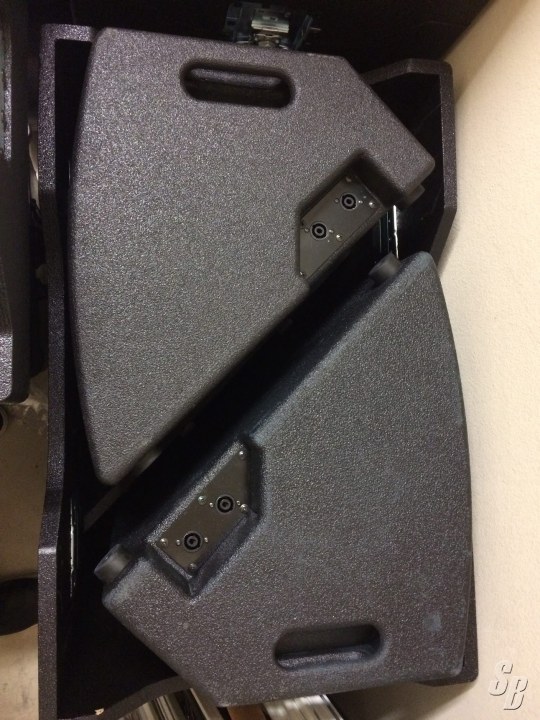

• 2 QTY. 2P-7112 SLICE WEDGE CASES (2 WEDGES PER CASE)

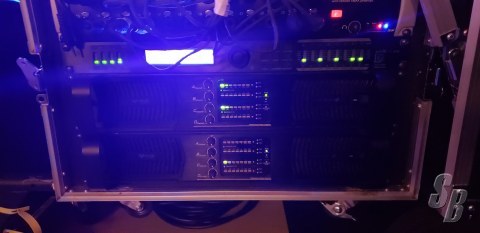

• 2 QTY. 4X13 HIVE 4 CHANNEL - 1300WATT PER CHANNEL AMPLIFIERS

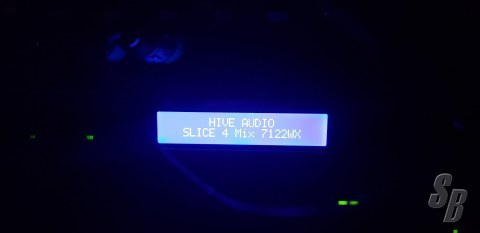

• 1 QTY. HIVE 4IN X 8OUT PROCESSOR FOR 4 INDEPENDENT MIXES - FACTORY SET FOR SLICE7122
• 4 50FT. NL4 CABLES

COMMENTS:

USED MONTHLY A FEW TIMES FOR LOCAL WEDDING EVENTS, CORPORATE MEETINGS, ETC.

PRICE DOES NOT INCLUDE SHIPPING, BUYER PAYS ACTUAL FREIGHT/SHIPPING COST

NOTE: SELLER DOES NOT WANT TO SPLIT UP SYSTEM.

TECH DETAILS ABOUT THE WEDGES:

HORIZONTAL DISPERSION: ASYMMETRICAL, 90-DEGREES NEAR-FIELD NARROWING TO 50-DEGREES AT 3M
VERTICAL DISPERSION: 40-DEGREES

FREQUENCY RESPONSE: 40HZ –TO- 18 KHZ, +/-3DB

MAX SPL: 131DB CONTINUOUS, 137DB PEAK

LF DRIVE UNIT(S): (1) NEODYMIUM 12” CONE
LF: SENSITIVITY: 101DB 1W/1M
LF POWER HANDLING: 900W (AES), 3600W (PEAK)
LF IMPEDANCE: 8-OHMS

HF DRIVE UNIT(S): (1) NEODYMIUM MF/HF EXO
HF SENSITIVITY: 118DB 1W/1M
HF POWER HANDLING: 250W (AES), 1000W (PEAK)
HF IMPEDANCE: 16-OHMS

CABINET CONSTRUCTION: 18MM 13-PLY BALTIC BIRCH, HIGH TENSILE UHMW COMPOSITE
CABINET FINISH:  TOUR-GRADE DURACOAT^TM
CONNECTIONS:  (2) NEUTRIK NL-4 SPEAKON

DIMENSIONS (IMPERIAL): 14.5” X 25.5” X 20.5”
DIMENSIONS (METRIC): 36.8CM X 64.8CM X 52.1CM
WEIGHT: 52LBS (23.6KGS)

SLICE DESCRIPTIONS:

SLICE™= PERFORMANCE
DESIGNED FOR THE CONCERT SOUND INDUSTRY AND THE HIGH-END INSTALLATION MARKET WHERE EXTREMELY HIGH OUTPUT AND SONIC PRECISION ARE CRITICAL, THE SLICE™SERIES OF HIGH-PERFORMANCE STAGE MONITORS STAND ABOVE THE PACK.

LOUD, LIGHT, LOW-PROFILE
BY DELIVERING A POWERFUL 137DB SPL PEAK OUTPUT, WHILE WEIGHING IN AT ONLY 52 POUNDS AND STANDING 14.5” TALL, THE 7122WX IS AT THE TOP OF ITS CLASS WITH REGARDS TO OUTPUT VERSUS SIZE/WEIGHT.

CRISP HIGHS, CLEAN MIDS
A KEY FEATURE OF THE SLICE™ SERIES IS THE USE OF A 2” NEODYMIUM MID/HF EXO DRIVER. ONE DRIVER, WHICH EXCELS AT ELIMINATING CROSSOVER AND PHASE/TIME ANOMALIES, REPRODUCES ALL FREQUENCIES FROM CRITICAL VOCAL INTELLIGIBILITY RANGE UP THROUGH UPPER-HARMONICS AND TO TOP OF THE FREQUENCY BAND. THIS RESULTS IN A CLEAN, PURE VOCAL AND UPPER-MID RESPONSE THAT SOUNDS MORE NATURAL THAN THE TRADITIONAL “PA SOUND” AND CUTS THROUGH BETTER ON A LOUD STAGE. MIXES NEVER SOUND “CROWDED” OR “MUDDY”.

STRONG LOWS
THE 7122WX UTILIZES A HIGH-OUTPUT, HIGH-EFFICIENCY NEODYMIUM 12” LOW-FREQUENCY DRIVER. LOADED IN THE SOLID 13-PLY BIRCH CABINET, THE SYSTEM IS TUNED TO PROVIDE LF EXTENSION BELOW 40HZ.

ROADWORTHY
SLICE™SERIES STAGE MONITORS ARE FINISHED IN 100% SOLID TOUR-GRADE DURACOAT™. THIS SURFACE IS HIGHLY ABRASION RESISTANT FOR RIGOROUS TOURING APPLICATIONS.

UNITS ARE WIRED FOR BIAMP OPERATION. RECOMMENDED AMP AND CABLING CONFIGURATIONS ARE AVAILABLE, AS WELL AS DSP PROCESSOR SETTINGS FOR MANY COMMONLY USED SYSTEM CONTROLLERS.

- LIVE/CONCERT SOUND

- TOURING SOUND COMPANIES

- HOUSES OF WORSHIP

- CLUBS/LOUNGES

- THEATERS/PERFORMANCE VENUES

- CORPORATE RENTAL HOUSES
