58 CHANNEL WHIRLWIND 3-WAY LUNDAHL ISOLATED SPLITTER SNAKE
[PRICE SHOWN FOR THE ENTIRE CONTENT OF THIS LISTING]
Listing last update on April 05, 2016 - Viewed 398 times

WHIRLWIND CUSTOM 58CH (YOM: ?) (S#: TBD) SUPERB (8-9)

FEATURES: CUSTOM WHIRLWIND 58 CHANNEL THREE-WAY LUNDAHL TRANSFORMER ISOLATED SPLITTER SYSTEM.

THIS THREE-WAY ISOLATED SPLITTER SNAKE SYSTEM WAS CUSTOM MADE BY WHIRLWIND FOR A COMPANY CALLED FLAMINGO AUDIO. I PURCHASED THIS FROM FLAMINGO AUDIO IN 2013. YOU CAN CALL THEM AND VERIFY THIS IS LEGITIMATE.

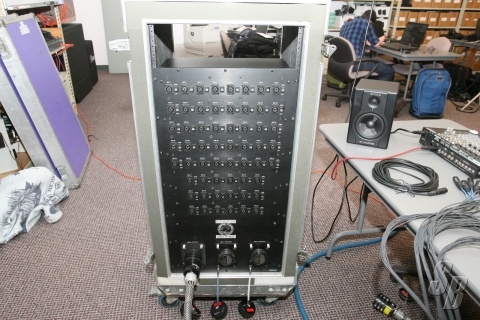

HOUSED IN A GIANT 22U PURPLE ATA 300 SHOCK CASE MEASURING 52” TALL X 26” WIDE X 28” DEEP (INCLUDING ATTACHED 4” CASTER BOARD).

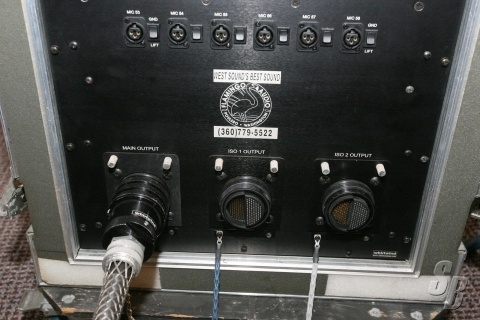

58 XLR INPUTS. ONE DIRECT OUTPUT AND TWO LUNDAHL TRANSFORMER ISOLATED OUTPUTS ON W4 MASS CONNECTORS WITH HINGES. GROUND LIFTS ON EVERY CHANNEL LIFTS PIN 1 FOR THE TWO ISOLATED OUTPUTS. ALL PINS OF ALL MASS CONNECTORS LOOK GREAT.

EXTRAS: THREE OUTPUT CABLES PROVIDED AS FOLLOWS:

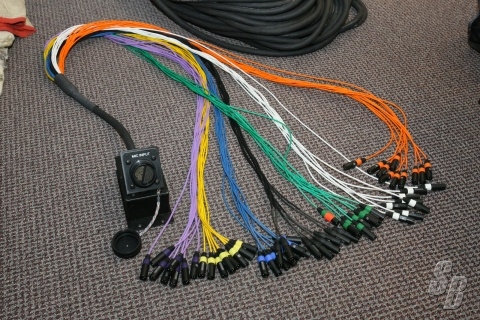

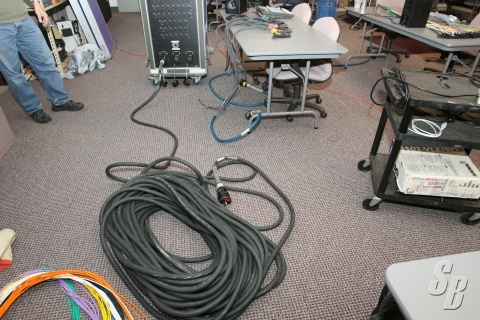

OUTPUT SNAKE A: 250’ 58 CHANNEL FLEX SNAKE TERMINATED MASS TO MASS. THIS 250’ SNAKE CONNECTS TO A 58 CHANNEL DOGHOUSE BOX THAT FANS OUT TO 8 FEET LONG 58 CHANNEL XLR MALES WRAPPED IN SNAKESKIN. CHANNEL 43 ISN’T WORKING. IT’S EITHER A PROBLEM IN THE DOGHOUSE BOX OR 250’ SNAKE. WE’VE TESTED IT, AND IT IS NOT A TRANSFORMER PROBLEM.

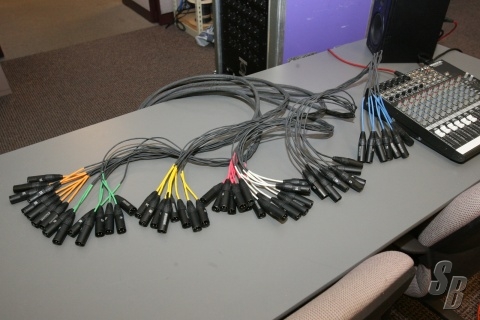

OUTPUT SNAKE B: 10’ 56 CHANNEL MASS THAT FANS OUT (4 FEET, NO SNAKESKIN) TO 56 CHANNEL XLR MALES. THIS COULD BE USED FOR AN ISOLATED RECORDING OUTPUT.

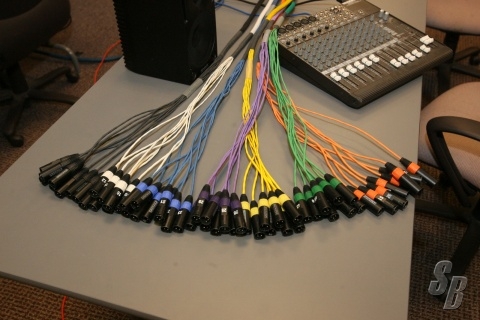

OUTPUT SNAKE C: 25’ 56 CHANNEL MASS THAT FANS OUT (PARTIAL SNAKESKIN IN 8 CHANNEL BUNDLES) TO 56 CHANNEL XLR MALES. THIS COULD BE USED FOR MONITOR WORLD.

OUTPUT SNAKES B AND C COULD BE EXTENDED TO A BROADCAST TRUCK BY PURCHASING A MASS TO MASS SNAKE FROM WHIRLWIND.

ALL CABLING STORES IN THE BACK OF THE ATA CASE.

MODIFICATIONS: NO MODIFICATIONS.

HISTORY: CORPORATE USE.

COMMENTS: WE JUST PAINSTAKINGLY TESTED EVERY INPUT AND OUTPUT AND EVERYTHING WORKS AS DESCRIBED. THE TRANSFORMER USED WAS THE LUNDAHL LL1581XL. I WOULD WANT TO KEEP IT ALL TOGETHER. I HAVE NO USE FOR THE UN-SOLD PARTS.

CHANNEL 43 OF THE SNAKE A ISN’T WORKING, AS STATED ABOVE.

THIS IS IN ABSOLUTELY BEAUTIFUL CONDITION. YOU CAN SEE THIS EXACT SNAKE ON WHIRLWIND’S CUSTOM SHOP SITE:

HTTP://WHIRLWINDUSA.COM/CUSTOM-SHOP/FLAMINGO-AUDIO


THIS UNIT WAS NEVER TOURED
