SSL SL 6056 E/G MIXING CONSOLE IN EXCELLENT CONDITION
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Listing last update on November 15, 2012 - Viewed 289 times

DESCRIPTION: SSL SL 6056 E/ G (YOM: 1988) (S#: TBD) SUPERB (8-9)

FEATURES: SSL 6056 E/G MIXING CONSOLE

56 INPUT MODULES

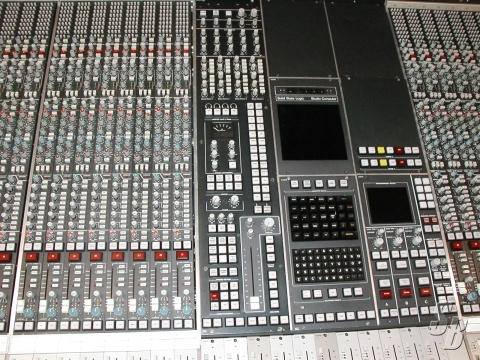

G SERIES CENTER SECTION AUDIO CARD UPGRADE
G SERIES COMPUTER WITH 3.5" FLOOPY DRIVES
G SERIES POWER SUPPLIES
TOTAL RECALL

CONSOLE CONFIGURATION:

INPUT MODULES 1 - 24 ARE STANDARD SL611 MODULES WITH MIC PREAMPS. CH 1 - 8 HAVE 6082291E MIC PREAMP CARDS WITH GRAYHILL PRECISION STEPPED GAIN CONTROLS. CH 9 - 24 HAVE 823E149 TRANSFORMERLESS MIC PREAMP CARDS WITH FULLY VARIABLE GAIN CONTROLS. ALL 24 MODULES ARE FITTED WITH THE 82E242 "BLACK KNOB" EQ CARDS.

INPUT MODULES 25-56 ARE DUAL LINE INPUT STYLE 611 MODULES. THESE MODULES ARE FITTED WITH 82E02 "BROWN KNOB" EQ CARDS AND FEATURE THE “LINE IN TO METERS” MODIFICATION.

ALL THE I/O MODULE VCA CARDS ARE THE NEWER IMPROVED DBX 2151 "STACKED" VCA TYPE, NOT OLDER "CAN TYPE" DBX VCA MODULE. THESE OFFER LOWER DISTORTION, BETTER TRANSIENT RESPONSE AND IMAGE CLARITY.

WHY ARE THERE ONLY 24 MIC PREAMPS AND 32 DUAL LINE INPUTS? WE WERE ABLE TO SELECT THIS CONFIGURATION WHEN WE BOUGHT THE CONSOLE. I LOVED THIS SET UP. HAVING THE ABILITY TO SWITCH BETWEEN TWO DIFFERENT 24 CHANNEL LINE INPUT SOURCES FOR CHANNELS 25-56 –EASILY- IS GREAT! NO NEED FOR 24 PATCH CORDS. I HAD MY 24 TRACK DECK ON LINE INPUT 1 AND MY PROTOOLS RIG ON LINE IN 2. WHO NEEDS MORE THAN 24 MIC PREAMPS ANYWAY! LINE INPUTS ARE WHAT’S NEEDED.

BLACK EQ VS BROWN EQ. THE BLACK 82E242 EQS HAVE THE HP/LP FILTERS OUT OF THE CIRCUIT WHEN THE POT ACTUATES A SWITCH AT THE END OF THE ROTATION. THE HP FILTERS HAVE AN 18 DB PER OCTAVE SLOPE. THE LP FILTERS HAVE AN 12 DB PER OCTAVE SLOPE. THE BROWN 82E02 EQS HAVE THE HP/LP FILTERS ALWAYS IN THE EQ CIRCUIT. THE FILTERS HAVE A 12 DB PER OCTAVE SLOPE. THE FILTER BUT CAN REMOVED FROM THE SIGNAL PATH BY SELECTING THE FILTER TO MON PATCH VIA THE SPLIT SWITCH. THE ALL IMPORTANT EQ PART IS THE SAME AS THE BLACK 242 DESIGN CAME FROM THE BROWN 02 EQ.


THIS MIXING CONSOLE FEATURES:

PRO AUDIO DESIGN'S ORIGINAL (2000) RE-COMISSIONING AND MODIFICATION OF THE CONSOLE INCLUDING THE G SERIES CENTER SECTION AUDIO CARD UPGRADE AND THE G SERIES COMPUTER UPGRADE.

TWO G SERIES POWER SUPPLIES, EACH SUPPLY IS CAPABLE OF RUNNING A 40 MODULE CONSOLE. THIS ASSURES COOL OPERATION OF THE SUPPLIES. THE SUPPLIES FEED THE CONSOLE THROUGH A 3 INPUT CHANGE OVER UNIT, SO AN EXTRA SUPPLY CAN BE FITTED IF DESIRED.

THE TR COMPUTER WAS RECENTLY UPGRADED FOR STABILITY BY BRUCE MILLET OF THE DESK DOCTORS - THE SSL TECHNICAL SPECIALISTS! THE TR COMPUTER WILL BE ROCK SOLID FOR YEARS TO COME.

UPGRADED COMPUTER RIBBON CABLES. THE CABLES ARE EACH ENCASED IN PLASTIC LIKE MULTI-CHANNEL AUDIO CABLE. THE RIBBON IS PROTECTED FROM ABRASION AND IS EASIER TO PULL THROUGH A WIRE TROUGH.

VU METERS .. GOOD OLD ANALOG VU METERS!

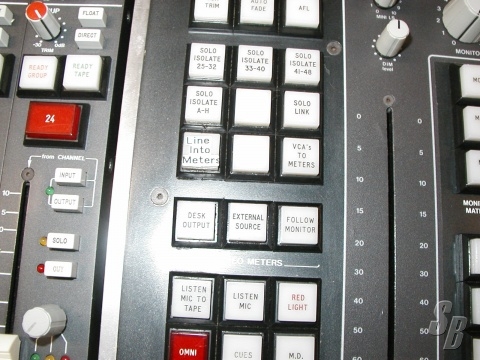

SOLO ISOLATE SWITCHES: EACH BUCKET OF 8 MODULES FROM CHANNEL 25 TO 56 HAVE A SOLO ISOLATE SWITCH LOCATED ON THE 651 MODULE SO THE MODULES WILL NOT MUTE IN SOLO. GREAT FOR EFFECT RETURN FUNCTIONS.

THE I/O MODULE BUSS SWITCH CARDS HAVE ALL BEEN UPGRADED TO THE NEW E-SWITCH POPULATED BOARDS. THESE NEW SWITCHES OPERATE SMOOTHLY AND QUIETLY.

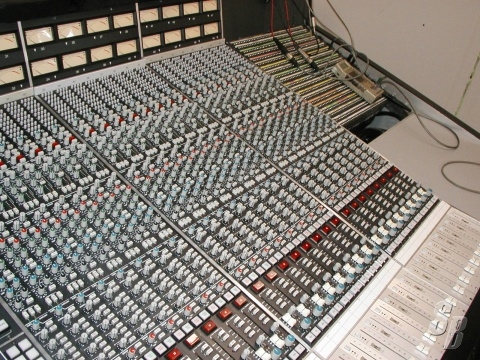

THE RIGHT HAND MOUNTED PATCH BAY FEATURES CHROME PLATED CONNECTORS. XX ROWS OF XX CHANNEL USER CONNECTORS ARE PROVIDED FOR OUTBOARD EQUIPMENT INTERFACE. DOWNLOAD A PDF OF THE PATCHBAY DL LIST HERE

TAPE MACHINE REMOTES: TWO TAPE REMOTE SWITCH GROUPS ARE INCLUDED.

SONY PVM 2950Q 29 INCH COLOR MONITOR FOR THE TR COMPUTER DISPLAY INCLUDED

A FULL SET OF MANUALS ARE INCLUDED AND THEY ARE IN GREAT SHAPE. YOU WILL NOT GET A BEAT-UP SERVICE MANUAL THAT IS MISSING THE IMPORTANT PAGES. YOU WILL GET THE CONSOLE SERVICE MANUAL, THE COMPUTER SERVICE MANUAL, THE CONSOLE OPERATORS MANUAL, TWO COMPUTER OPERATORS MANUAL, TWO CONSOLE SHORTFORM MANUALS, TWO CONSOLE BROCHURES. DOWNLOAD A PDF OF THESE DESCRIPTIVE BROCHURE HERE.

I HAVE PROFESSIONALLY MAINTAINED THIS CONSOLE SINCE 2000. I HAVE 20 YEARS EXPERIENCE MAINTAINING LARGE FORMAT MIXING CONSOLES IN MANY OF NYC'S TOP RECORDING STUDIOS. I HELD THE CHIEF TECH POSITION AT ELECTRIC LADY, ATLANTIC, SOUNDTRACK, PLATINUM ISLAND AND TMF STUDIOS AS WELL AS PROVIDING FREE-LANCE TECHNICAL SERVICES TO MANY OTHERS. I JUST COMPLETED A DETAILED SURFACE AND KNOB CLEANING AND A FULL AUDIO FUNCTION TEST. I WILL DISASSEMBLE AND PACK THE CONSOLE WITH YOUR TECHNICIAN AT NO CHARGE. THIS WILL MAKE YOUR INSTALLATION EASIER AS THE CONSOLE WILL BE IN WELL MARKED PACKAGES THAT YOUR TECHNICIAN IS FAMILIAR WITH. YOU WILL PAY FOR ALL PACKING AND CRATING MATERIALS. TRUCK PICKUP CAN BE DONE EASILY AT THE CONSOLES LOCATION AND WE HAVE A FORKLIFT TO LOAD THE CRATES ONTO THE TRUCK. I AM AVAILABLE, FOR A FEE, TO HELP RE-ASSEMBLE AND RE-COMISSION THE CONSOLE IF NEEDED.


CABLING AND PANELS AVAILABLE. I HAVE A WHOLE STUDIO WIRING PACKAGE THAT WAS USED WITH THIS CONSOLE. THE ARE MANY CUSTOM ENGRAVED ALUMINUM PANELS FOR THIS SYSTEM. THIS WIRING PACKAGE WOULD MAKE A CONSOLE UPGRADE EASY!

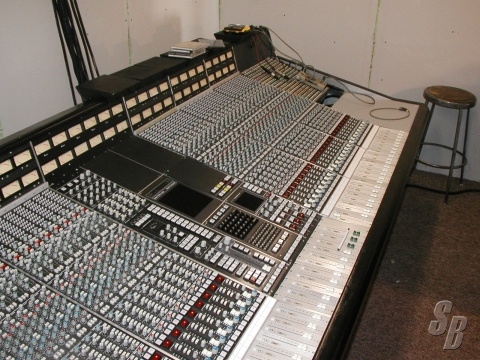

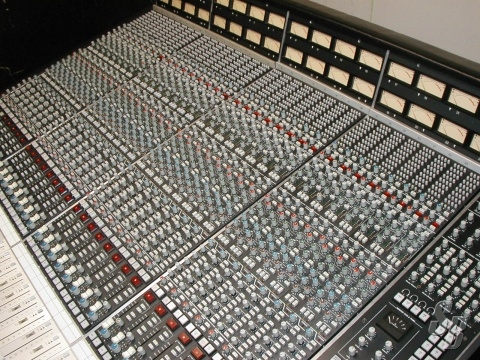

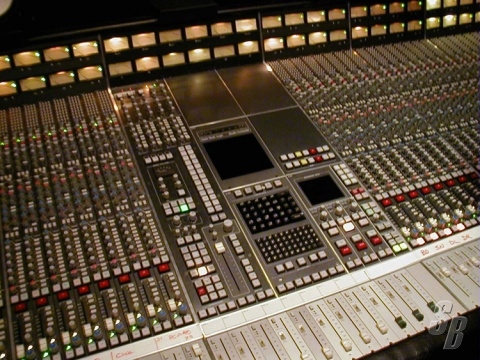

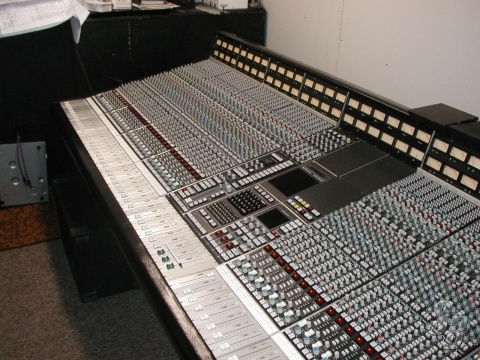

ALL THE PICTURES ON THIS WEB PAGE ARE ACTUAL PHOTOGRAPHS OF THIS MIXING CONSOLE

THE CONSOLE IS SET UP, CALIBRATED AND FULLY FUNCTIONAL.

IT IS STORED IN IT'S OWN HUMIDITY AND TEMPERATURE CONTROLLED ROOM,
READY FOR YOUR TECHNICIAN TO INSPECT.

EXTRAS: INCLUDES SONY PVM 2950Q MONITOR

MODIFICATIONS: STOCK CONFIGURATION

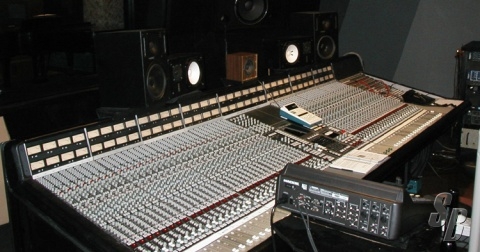

HISTORY: THIS CONSOLE WAS USED IN A PROFESSIONAL STUDIO IN NYC. IT IS CURRENTLY IN MY PRIVATE HOME STUDIO, FULLY FUNCTIONING AND READ YO GO

COMMENTS: THIS CONSOLE IS IN EXCELLENT CONDITION. IT HAS BEEN GONE THROUGH AND HAS HAD ALL FUNCTIONS VERIFIED WORKING.

THIS UNIT WAS NEVER TOURED
