For Sale: REMOTE MOBILE RECORDING TRUCK
[PRICE SHOWN FOR THE ENTIRE CONTENT OF THIS LISTING]
Listing last update on April 19, 2024 - Viewed 999 times

MOBILE RECORDING TRUCK (YOM: ? ) (S#: TBD) SUPERB (8-9) FEATURES:

CLICK HERE TO VIEW: COMPLETE INVENTORY AND PHOTOS

THE OWNER IS RETIRING AND LOOKING TO SELL THIS HIGHLY SOUGHT-AFTER RECORDING TRUCK WHERE RENOWNED AUDIO ENGINEERS (IN NO PARTICULAR ORDER) RON REAVES, ERIC SCHILLING, AND CARLOS ALVEREZ HAVE HAD THE PLEASURE OF OPERATING THIS AUDIO RECORDING TRUCK WHICH HAS BEEN UTILIZED AT EVENTS THAT INCLUDE THE LATIN GRAMMY'S, LA VOZ, AND THE BILLBOARD MUSIC AWARDS AMONG OTHER NOTABLE EVENTS.

FULL DESCRIPTION, SPECS, AND INVENTORY ARE BELOW.

TRUCK SPECIFICATIONS:

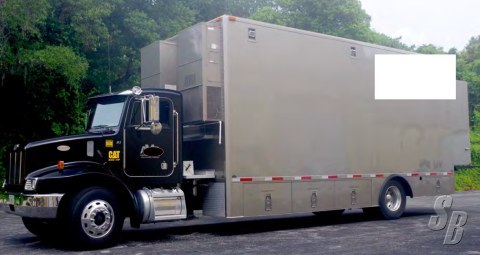

• 2000 PETERBILT MODEL 330 26’ WB 33000 GVW MILEAGE: 58,680
• CAT. C3 300 HP DIESEL. EATON 9SP MANUAL & BENDIX AIR RIDE SUSPENSION.

BODY:

• GERLING 24’ STALLION CLASS FULL ALUMINUM CONSTRUCTION.
• 2” SQUARE TUBE STRUCTURE AND CONTINUOUS ALUMINUM SHEATHING.
• (3) FULL-SIZE EXTERNAL BELLY BAYS (1) 1/2 SIZE & (2) I/O BAYS.
• LIFT-GATE: INTERLIFT STEEL FOLD-OUT WITH 2800 LB CAPACITY, LIFT, AND TILT.
• ALUMINUM & STAIRS WITH STAINLESS STEEL HANDRAILS

HVAC:

• (2) BARD 3-TON WALL PACKAGE UNITS WITH HEATING AND COOLING.
• MIRROR IMAGE UNITS FOR EASY SERVICE
• STREET SIDE UNIT HAS A HOT GAS BYPASS SYSTEM
• SUPPLY DUCT AND VENTING TO NC-17 STANDARDS
• UNDER-FLOOR AIR RETURN.

ELECTRICAL:

• INPUT SERVICE: 240VAC 100 AMP 3 WIRE
• ENVIRONMENTAL POWER - 15KVA MULTI-TAP TRANSFORMER WITH NEUTRAL TAP

  • AVAILABLE VOLTAGE TAPS: 190, 200, 210, 220, 240, 270
  • 14-CIRCUIT LOAD CENTER
• TECHNICAL POWER - 10KVA MULTI-TAP TRANSFORMER WITH NEUTRAL TAP

  • AVAILABLE VOLTAGE TAPS: 190, 200, 210, 220, 240, 270
  • 12-CIRCUIT LOAD CENTER
• BATTERY BACKUP SYSTEM - HOT-SWAP MODULAR INVERTER FRAME
  • (3) 1200 WATT INVERTERS FOR A TOTAL OF 3600-WATT CAPACITY
  • VICTRON 200AH 24V BATTERY PACK
  • VICTRON 16A MULTI-STAGE BATTERY CHARGER
• DUAL ZONE CENTRAL DC POWER SUPPLY:
  • ZONE 1 - RACK +5V, +12V, +15, -15V & ADJ.
  • ZONE 2 - MIXER +5V, +12V, +15,-15V & ADJ.

STUDIO CONSTRUCTION:
ALL METAL SURFACES COATED WITH VBD-5 NOISE-DAMPING COMPOUND

• MID TO HIGH-FREQUENCY ABSORPTION - 2” FOAM BOARD
• LOW-FREQUENCY ABSORPTION - 1LB VINYL MASS BARRIER
• INTERIOR WALL ISOLATION - RSIC-1 ISO CLIP WITH HIGH HAT CHANNEL
• FLOOR ISOLATION - SUSPENDED ALUMINUM STRUCTURE WITH QUIET LINER ACOUSTIC SOUND SEALANT ON ALL EDGES AND CORNERS.

STUDIO SPECIFICATIONS:

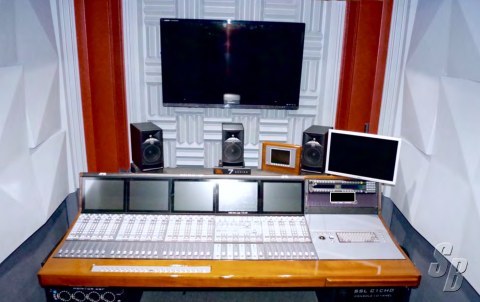

• MIXER AREA
  • SOLID STATE LOGIC C10HD PLUS CONSOLE WITH 40 FADERS
  • (8) 64CH MADI PORTS (512 X 512)
  • 160 FULL CHANNELS + 8 STEREO FX RETURNS
  • 2 PROGRAM BUSSES STEREO & 5.1
  • 8 AUDIO SUBGROUPS - MONO, STEREO & 5.1
  • 16 MIX MINUS/N-1/AUX
  • 8 MONO AUX SENDS
  • SSL-2 INTERFACE USB A OR C OR SUPER ANALOG
  • 192 STAGE INPUT PATHS
  • 5.1 JBL LSR SERIES 705P REFERENCE MONITORS & DOLBY DLP DSP
  • 46” VIDEO MONITOR WITH MULTI-VIEW AND 4 PRESETS
  • WAVES DIGIGRID SERVER 1 WITH PC MULTI-RACK & ASSORT. PLUGINS
  • DK METER
  • RTS KP-32 INTERCOM PANEL
  • 8 LOCAL MICROPHONE INPUTS
  • 48 LOCAL ANALOG LINE INPUTS
  • 48 LOCAL ANALOG LINE OUTPUTS
  • 48 LOCAL AES INPUTS
  • 48 LOCAL AES OUTPUTS
  • 3 LOCAL MADI I/O PORTS
  • (2) OPTICAL (1) BNC
  • 8 HD-SDI AUDIO DEEMBEDDERS
  • 8 HD-SDI AUDIO EMBEDDERS

OUTBOARD EQUIPMENT:

• • COMPUTER GUI
  • TC ELECTRONIC SYSTEM 6000 DSP WITH FX & MASTERING LICENSES
  • WAVES DIGIGRID SERVER 1 WITH PC MULTI-RACK & ASSORT.
  • PLUGINS
    • PLATINUM V10.0.0
    • STUDIO CLASSICS
    • COLLECTION V10.0.0
    • WNS NOISE SUPPRESSOR V10.0.0
    • CLA-76 COMPRESSOR / LIMITER V10.0.0
    • MULTIRACK SOUNDGRID  V9.2.0

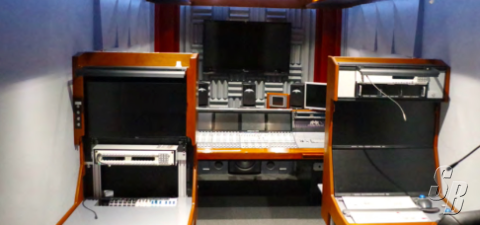

SECONDARY WORKSTATIONS

• WORKSTATION 1 - OPEN STATION

  • AUDIO, VIDEO & DATA PATCH LINES
  • 24” VIDEO MONITOR WITH MULTI-VIEW AND 4 PRESETS
  • RTS KP-32 INTERCOM PANEL.
• WORKSTATION 2 - PROTOOLS STATION
  • OPTOCORE 832 X 768 PRE-CONSOLE ROUTER
  • MIC. PREAMP CONTROL AND RECALL
  • PROTOOLS 12. HDX RECORDER WITH 128CH (EXP. TO 192)
  • ADK WORKSTATION NUENDO RECORDER WITH 192 CH
  • AJA KI-PRO HD VIDEO RECORDER
  • 2 ULTRA-WIDE VIDEO MONITORS FOR RECORDER + 3 SMALL PREVIEW MONITOR
  • RTS KP-32 INTERCOM PANEL
• LOCAL THUNDERBOLT CADDY WITH SSD RECORD DRIVES AUDIO, VIDEO & DATA PATCH LINES

RACK & EIC STATION

EIC STATION:

• • MASTER CONTROL STATION FOR OPTOCORE ROUTERS AND PREAMP,
  • MULTI-VIEW AND VIDEO ROUTERS,
  • KI-PRO RECORDER,
  • MASTER NETWORK SWITCH AND VIDEO EMBEDDER
  • 2 MAC MINI & VIDEO REFERENCE VIDEO MONITORS + KEYBOARD STATIONS

MAIN & INTERCOM RACK:

• • 1 VIDEO REFERENCE VIDEO MONITORS + KEYBOARD STATIONS MASTER PATCH AND TIE-LINE PANEL,
  • SYSTEM SYNC AND DISTRIBUTION,
  • MASTER TIMECODE AND DISTRIBUTION,
  • ALL RECORDERS AND I/O INTERFACES, AND NETWORK DEVICES.

INTERCOM RACK: ZEUS III MATRIX AND KP PATCH PANELS

MAIN RACK WORKBOX DRAWERS:

• DRAWER 1- AUDIENCE MIC. & VOICE-OVER PACKAGE
• DRAWER 2- RECORDING & BACKUP DRIVE
• DRAWER 3- TOOL DRAWER
• DRAWER 4- PATCH CABLES

BELLY BAY I/O PANEL:
AUDIO, VIDEO & DATA PATCH LINES 5.1 ANALOG VU METER

STAGE INTERFACE KART: 216 INPUTS (152 MIC + 64 DANTE)

• CUSTOM ROLLING KART WITH 22AH BATTERY SYSTEM WITH CHARGING SYSTEM.
• CAN OPERATE ID RACKS 6, 6EX, 7 & 8 FOR 120 MINUTES

COMMENTS:

• A SECOND 16-FADER SSL CONSOLE CAN BE PROVIDED TO USE AS A SLAVE OR EMERGENCY SPARE PARTS.
• DEPENDING ON WHERE THE TRUCK IS LOCATED SELLER CAN REFER THEIR CLIENTS SINCE THEY ARE RETIRING.
• THE SELLER WILL CONTINUE TO OFFER SUPPORT FOR THE TRUCK AND TRAINING AS NEEDED.
