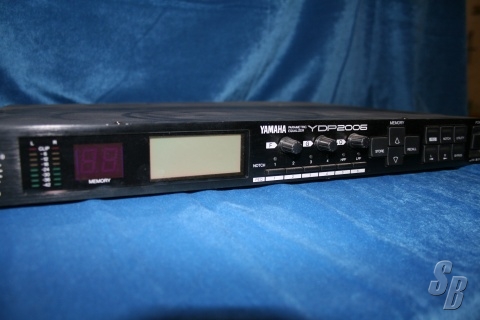

YAMAHA YDP-2006 PARAMETRIC EQUALIZER (YOM: ?) (S#: TBD) GOOD (7-8)
[PRICED PER UNIT - 2 AVAILABLE AT TIME OF LISTING]
Listing last update on August 14, 2020 - Viewed 51 times

YAMAHA YDP-2006 PARAMETRIC EQUALIZER (YOM: ?) (S#: TBD) GOOD (7-8)

FEATURES:

UNMATCHED AUDIO QUALITY
110DB DYNAMIC RANGE, PRECISE RESPONSE FROM 20 HZ TO 20,000 HZ, AND TOTAL HARMONIC DISTORTION LESS THAN 0.007% (EMPHASIS ON) 20-BIT A/D AND D/A CONVERTORS SAMPLING AT 44.1 KHZ.

A CHOICE OF EQ MODES
THERE IS A CHOICE OF TWO EQ MODES. IN THE STEREO MODE IT OFFERS 2-CHANNELS OF 6-BAND PARAMETRIC EQ WHILE IN THE MONO MODE YOU GET A SINGLE CHANNEL OF 12-BAND PARAMETRIC EQUALIZATION. IN EITHER MODE YOU HAVE +/-12 DB GAIN CONTROL IN EACH BAND, PLUS Q CONTROL RANGING FROM 0.5 TO 10.

LPF, HPF, AND MULTIPLE NOTCH FILTERS
IN THE STEREO EQ MODE, INDEPENDENTLY PROGRAMMABLE HIGH-PASS AND LOW-PASS FILTERS AS WELL AS A GROUP OF FOUR NOTCH FILTERS WITH VARIABLE FREQUENCY AND BANDWIDTH. IN THE MONO MODE THE YDP2006 PROVIDES THE SAME HIGH-PASS AND LOW-PASS FILTERS WITH NO LESS THAN EIGHT PROGRAMMABLE NOTCH FILTERS.

40-PROGRAM MEMORY
THE YDP2006 STORES AND RECALLS UP TO 40 DIFFERENT EQ PROGRAMS AS REQUIRED. YOU CAN RECALL VIA THE FRONT-PANEL KEYS OR THE MIDI INTERFACE OR Y-485 BUS.

INDEPENDENTLY PROGRAMMABLE CHANNEL DELAYS
FOR PHASE ALIGNMENT AND SPEAKER DISTANCE COMPENSATION, EACH CHANNEL PROVIDES A VARIABLE DELAY PARAMETER THAT CAN BE SET ANYWHERE FROM 0 TO 714 MILLISECONDS IN SUB-MILLISECOND STEPS.

EASY PROGRAMMING INTERFACE
A GRAPHIC LCD PANEL IS A GRAPHIC REPRESENTATION OF EQ CURVES, SIMULTANEOUS DISPLAY OF RELATED PARAMETERS, AND COMPREHENSIVE DISPLAY LAYOUTS. ANOTHER FEATURE IS THE PROVISION OF THREE ROTARY ENCODERS FOR DATA ENTRY. IN ADDITION IT HAS A PARAMETER COPY FUNCTION THAT ALLOWS PARAMETERS TO BE COPIED FROM AN EXISTING PROGRAM AND THEN EDITED AS REQUIRED.

RELIABLE BALANCED ANALOG INPUTS AND OUTPUTS
ELECTRONICALLY BALANCED INPUT AND OUTPUTS WITH XLR-TYPE CONNECTORS. VERSATILITY IS PROVIDED BY INDEPENDENT -20/+4 DB LEVEL SELECTORS FOR THE INPUTS AND OUTPUTS.

MULTI-EQUALIZER NETWORK CAPABILITY
UP TO 31 YDP2006 UNITS CAN BE INCLUDED IN THE NETWORK. ALL PARAMETERS CAN BE REMOTELY ACCESSED AND CONTROLLED FROM A SINGLE MASTER YDP2006 UNIT OR A COMPUTER RUNNING YAMAHA QS1 DIGITAL EQUALIZER CONTROL SOFTWARE.

MIDI INTERFACE
A MIDI INTERFACE THAT ALLOWS EQ PROGRAMS TO BE RECALLED AND PARAMETER CHANGES TO BE MADE FROM A MIDI SEQUENCER, COMPUTER OR SIMILAR DEVICE. THE MIDI INTERFACE ALSO FEATURES A BULK DUMP FUNCTION THAT ALLOWS THE CONTENTS OF THE MEMORY TO BE TRANSFERRED TO ANY MIDI DEVICE CAPABLE OF RECORDING BULK DATA.

* INPUT ATTENUATOR OF DIGITAL DOMAIN

* EMPHASIS ON/OFF CONTROL

EXTRAS: NONE

MODIFICATIONS: NONE

HISTORY: USED IN CONVENTION SETTINGS AND SMALL VENUES.

COMMENTS: NONE

THIS UNIT WAS NEVER TOURED
