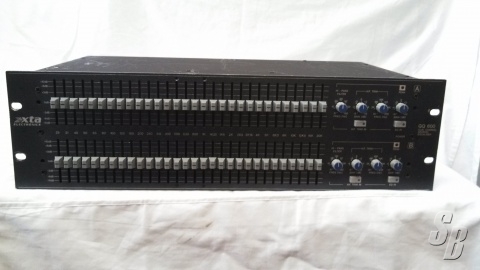

XTA GQ600 ANALOG PROCESSOR - DUAL CHANNEL GRAPHIC EQUALIZER
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Listing last update on February 03, 2016 - Viewed 54 times

GQ 600SPECIFICATIONS
INPUTS TWO, ELECTRONICALLY BALANCED [++]
IMPEDANCE > 10K OHMS
CMRR > 65DB 50HZ - 10KHZ
OUTPUTS TWO, ELECTRONICALLY BALANCED [++]
SOURCE IMP. < 60 OHMS
MIN. LOAD 600 OHMS

MAX. LEVEL ± 23DBM INTO 600 OHM LOAD
GAIN ± 10DB VIA ROTARY CONTROL
FREQUENCY RESP. ± 0.5DB 20HZ TO 20KHZ WITH CONTROLS "FLAT"

EQ'V. INPUT NOISE <- 100DBM (20HZ - 20KHZ UN-WEIGHTED) WITH CONTROLS "FLAT"
DISTORTION @ +18DBM< 0.01% @ 1kHz
Channel Separation > 80DB @ 1KHZ
PEAK INDICATOR THRESHOLD: + 20DBU

H.F TRIM
FILTER TYPE 2ND ORDER, OPTIMUM PHASE, SHELVING
FREQUENCY 2K - 20KHZ
GAIN ± 8DB
H.F TRIM IN/OUT FRONT PANEL SWITCH WITH LED

HIGH-PASS FILTER
FILTER TYPE 12DB/OCTAVE H.P
FREQUENCY (-3DB) 10HZ - 150HZ
LOW-PASS FILTER
FILTER TYPE 18DB/OCTAVE 3DB @ 27KHZ
LPF IN/OUT LINK SELECTABLE ON PCB
EQUALISER SECTION
FILTERS 2 X 301/3 OCTAVE, 25HZ-20KHZ
FILTER TYPE HIGH PERFORMANCE SIMULATED LCR NETWORK
FREQ. TOLERANCE ± 3%
RANGE ± 10DB

POWER 110/120 ± 15% @ 50/60HZ
CONSUMPTION < 20W

WEIGHT 5.0 KG NET (6.7 KG SHIPPING)
SIZE 5.25" (3U) X 19" X 9.3" (133 X 482 X 237MM)
EXCLUDING CONNECTORS.

OPTIONS [++] = OPTIONAL TRANSFORMER BALANCING.
PERSPEX SECURITY COVER.
