ID # 42535    CURRENT CATEGORY - PROCESSING

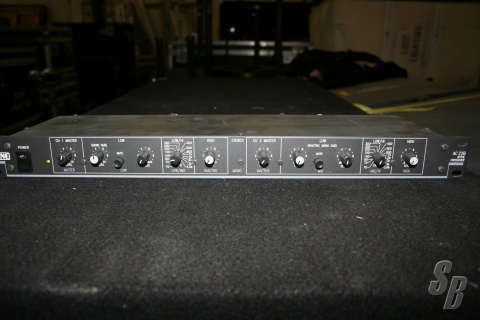

RANE AC 22B (YOM: ?) (S#: 114159) GOOD (7-8)

Listing last update on May 17, 2012 - Viewed 252 times

RANE AC 22B (YOM: ?) (S#: 114159) GOOD (7-8)



RANE AC 22B (YOM: ?) (S#: 114159) GOOD (7-8)

FEATURES: THE AC 22B CAN BE EITHER A STEREO 2-WAY OR MONO 3-WAY
CROSSOVER. LABELS ABOVE THE CONTROLS REFER TO THE UNIT BEING OPERATED
IN THE 2-WAY STEREO MODE. LABELS BELOW THE CONTROLS REFER TO
THE UNIT BEING OPERATED IN THE 3-WAY MONO MODE.
THE FACT THAT THE AC 22B IS A MULTIPLE FUNCTION UNIT MEANS
THE OUTPUTS ARE SWITCHED AROUND DEPENDING ON THE SYSTEM
MODE AND SUBWOOFER SWITCHES ON THE BACK OF THE UNIT.
TO OPERATE THE AC 22B IN STEREO 2-WAY MODE, BE SURE THAT
THE MODE SWITCH IS SET FOR STEREO 2-WAY. FOLLOW THE LABELS
ABOVE THE CONTROLS AND JACKS.
WHEN OPERATED IN THE MONO 3-WAY MODE, THE SWITCH SHOULD
BE SET IN THE MONO 3-WAY POSITION. FOLLOW THE LABELS BELOW
THE CONTROLS AND JACKS. IN MONO 3-WAY MODE THE CHANNEL 1
HIGH OUTPUT IS UNUSABLE. THIS OUTPUT IS THE HIGH-PASS-ONLY PORTION
OF THE MIDRANGE FILTER. THE CHANNEL 1 HIGH LEVEL AND THE
CHANNEL 2 MASTER LEVEL ARE ALSO DEFEATED ON THE FRONT PANEL.
IN AGREEMENT WITH IEC AND AES/ANSI STANDARDS, AC 22B
WIRING CONVENTION IS PIN 2 POSITIVE, PIN 3 NEGATIVE (RETURN), PIN
1 CHASSIS GROUND. SEE THE “SOUND SYSTEM INTERCONNECTION” RANE-
NOTE INCLUDED WITH THIS MANUAL FOR MORE INFORMATION ON CABLING
AND GROUNDING REQUIREMENTS.
NEVER CONNECT ANYTHING EXCEPT AN RS 1 OR
OTHER APPROVED RANE AC POWER SUPPLY TO THE
THING THAT LOOKS LIKE A TELEPHONE JACK ON
THE REAR. THIS IS AN AC SUPPLY AND REQUIRES SOME SPECIAL ATTENTION
IF YOU DO NOT HAVE AN OPERATIONAL POWER SUPPLY EXACTLY
LIKE THE ONE THAT WAS ORIGINALLY PACKED WITH YOUR UNIT.

EXTRAS: NONE

MODIFICATIONS: NONE

HISTORY: USED IN CONVENTIONS

COMMENTS: NONE

THIS UNIT WAS NEVER TOURED

Additional Details
ID#: 42535
Listing Type:
Standard
Model: AC22B
Manufacturer: RANE
Condition: GOOD (7-8)
Shipping Info: 0.00 lbs.,
Seller's Location: LA, USA
Updated: May 17, 2012
M.S.R.P.: $0.00
Asking Price: SOLD
