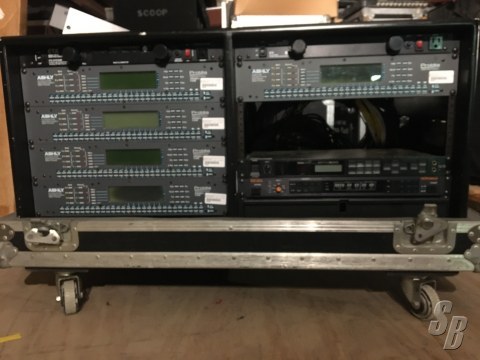

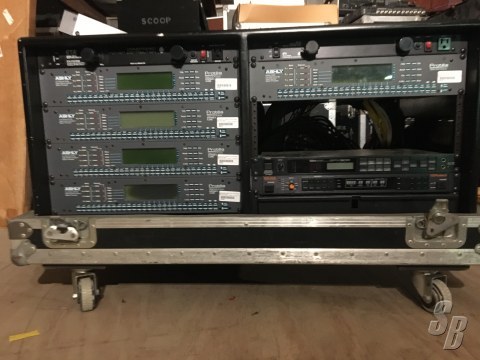

DUAL STAGE MONITOR PROCESSING RACK (W/ 5 ASHLY PROTEA 4.24G)
[PRICE SHOWN FOR THE ENTIRE CONTENT OF THIS LISTING]
Listing last update on October 09, 2021 - Viewed 263 times

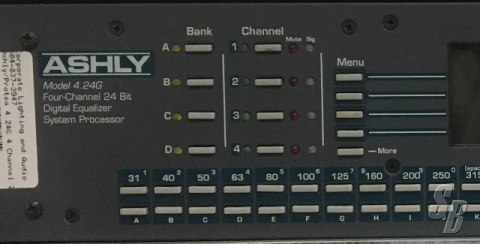

THE 4.24G IS A FOUR-CHANNEL GRAPHIC EQ WITH AN INTUITIVE AND STRAIGHT-FORWARD FRONT PANEL LAYOUT AND HOUSED IN AN ALL-STEEL, TWO SPACE RACK-MOUNT CHASSIS. EACH CHANNEL HAS 28 BANDS OF 1/3-OCTAVE EQ AND ALL THE ADDITIONAL AUDIO PROCESSING TOOLS NEEDED FOR FLAWLESS EQUALIZATION AND SOUND CONTROL.

• INCLUDED IN THE UNIT IS A PROGRAMMABLE COMPRESSOR/LIMITER FOR SPEAKER PROTECTION AND A PROGRAMMABLE DELAY OF UP TO 1.364 SECONDS FOR TIME DELAY APPLICATIONS REQUIRED BY SPEAKER ARRAYS AND CLUSTERS, OR MONITOR SPEAKERS. INDIVIDUAL, PROGRAMMABLE 24DB/OCTAVE HIGH AND LOW PASS FILTERS ALLOW FOR FINE TUNING THE AUDIO SPECTRUM.
• A LARGE FLUORESCENT BACKLIT DISPLAY KEEPS THE OPERATOR CONSTANTLY INFORMED OF EVERY PARAMETER, FUNCTION AND UTILITY, INCLUDING METERING AND USER PREFERENCES. THE 4.24G MAY BE CONTROLLED FROM A REMOTE LOCATION USING THE OPTIONAL PROTEA 4.24RD REMOTE CONTROL.
• FOUR, 28-BAND 1/3 OCTAVE CHANNELS OF GRAPHIC EQ
• CONSTANT Q/RECIPROCAL FILTER DESIGN WITH +/-15DB BOOST AND CUT IN 0.5DB INCREMENTS
• 24-BIT A/D AND D/A AUDIO RESOLUTION WITH 24-BIT/100MHZ (X2) DIGITAL SIGNAL PROCESSING
• PROGRAMMABLE COMPRESSOR/LIMITER WITH ADJUSTABLE THRESHOLD, RATIO, ATTACK AND RELEASE TIMES
• PROGRAMMABLE DELAY OF UP TO 1.364 SECONDS
• PROGRAMMABLE HIGH AND LOW PASS FILTERS
• LARGE 240 X 64 FLUORESCENT BACKLIT DISPLAY
• INPUT AND OUTPUT METERING
• 128 PRESET LOCATIONS AND 50 SCENES
• FULL MIDI IMPLEMENTATION AND PASSWORD PROTECTION OF SYSTEM OPERATION
• RS-232 COMPUTER INTERFACE
