DAKING 52270CMICPRE/91576 COMPRESSOR (YOM: ?) (S#: TBD) SEE DESCRIPTION
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Listing last update on August 05, 2009 - Viewed 65 times

DESCRIPTION: DAKING 52270CMICPRE/91576 COMPRESSOR (YOM: ?) (S#: TBD) SEE DESCRIPTION

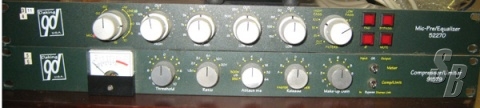

FEATURES: DAKING AUDIO 52270C MIC PRE/EQ & 91576 COMPRESSOR/ LIMITER ORIGINAL VERSION

52270 MIC PRE IS A MONO MIC PREAMP ALL DISCRETE TRANSISTOR CIRCUITRY CLASS "A" AMPLIFIERS WITH
FOUR BAND EQ WITH HARD BYPASS
CONTINUOUSLY VARIABLE BOOST AND CUT: +-16DB
STEPPED FREQUENCIES:
HIGH SHELVING 8-10-12-15K-20K
UPPER MIDS 1.5-3-5-7-9K
LOWER MIDS 125-HZ-250HZ-500HZ-1K-2K
LOW SHELVING 30-50-80-100-150HZ
HIGH & LOW PASS FILTERS 25HZ & 15KHZ
ALL RELAY SWITCHING W/GOLD BI-FURCATED CONTACTS
SWITCHED +48V PHANTOM POWER
REMOTEABLE MUTE AND BYPASS 20DB PAD ON MIC INPUT
STAINLESS STEEL CONSTRUCTION FOR NOISE IMMUNITY WITH ALUMINUM KNOBS
OUTPUT LEVEL CONTROL BEFORE LAST STAGE OF GAIN

91576 COMPRESSOR/ LIMITER
ALL DISCRETE TRANSISTOR CIRCUITRY
TRANSFORMER BALANCED INPUTS AND OUTPUT
CLASS "A" AMPLIFIERS
ALL PARAMETERS SWITCH SELECTABLE & REPEATABLE
THRESHOLD ADJUSTABLE FROM -10 TO +10 IN 2DB STEPS.
RATIOS: 1.5:1, 2:1, 3:1, 5:1, 10:1, AND 20:1
ATTACK 250 MICROSECONDS TO 63 MILLISECONDS
SEVEN RELEASE TIME CONSTANTS:
A. .5 · B. 1 · C. 1.5
D. NEVE 33609 AUTO
E. A&D - COMPEX AUTO
F. FAIRCHILD 670 #5
G. FAIRCHILD 670 #6
MAKE UP GAIN: 0 TO 11DB IN 1DB STEPS
THREE FUNCTION VU METER:
INPUT/OUTPUT/GAIN REDUCTION

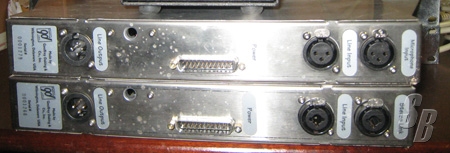

TWO INPUTS: MIC OR LINE
A. XLR +4DBM TRANSFORMER BALANCED
B. 1/4 TRS - 10DB TRANSFORMER BALANCED
STAINLESS STEEL CONSTRUCTION FOR NOISE IMMUNITY WITH ALUMINUM KNOBS.
RACKMOUNTABLE

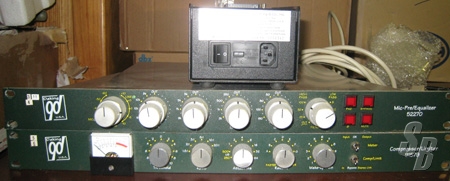

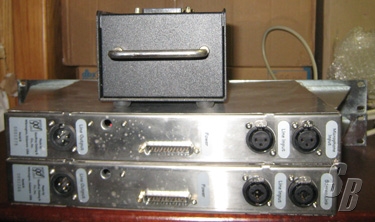

EXTRAS: THE SUPPLIED UNIVERSAL POWER SUPPLY CAN OPERATE AT ANY VOLTAGE FOR USE WORLDWIDE. THE POWER SUPPLY HAS SPACES FOR TWO MORE UNITS.


MODIFICATIONS: NONE

HISTORY: SMOKE FREE STUDIO VERY VERY CLEAN CONDITION
FOR MORE INFORMATION CHECK OUT WEBSITES HTTP://WWW.DAKING.COM/INDEX.HTML
HTTP://MIXONLINE.COM/PRODUCTS/REVIEW/AUDIO_GEOFFREY_DAKING_MICPREEQ/

COMMENTS: CHECK OUT WEBSITES HTTP://WWW.DAKING.COM/INDEX.HTML
HTTP://MIXONLINE.COM/PRODUCTS/REVIEW/AUDIO_GEOFFREY_DAKING_MICPREEQ/

THIS UNIT WAS NEVER TOURED
