KING OF CLUBS (DYNACORD ALPHA CONCEPT)
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Listing last update on September 05, 2008 - Viewed 361 times

DESCRIPTION: DYNACHORD ALPHA X-1/90 (2004) (S#: TBD) SUPERB (8-9)

FEATURES: QTY:
4X ALPHA X1/90 TOPS
4X ALPHA B-3 SUBS

DYNACORD ALPHA CONCEPT IS THE HIGHEST STANDARD IN PROFESSIONAL CLUB SOUND REINFORCEMENT.
DESIGNED AND MANUFACTURED IN GERMANY HAS SET NEW MILESTONES ACROSS THE WORLDS BIGGEST
CLUBS. WITHIN THREE YEARS, ALPHA CONCEPT BECAME THE MARKET LEADER IN THE INDUSTRY. DYNACORD
ALPHA CONCEPT IS SYNONYMOUS WITH HIGH-END AUDIO IN CLUBS AND DISCOTHEQUES, THEREFORE MARKS
THE STANDARD FOR OUTSTANDING SOUND REINFORCEMENT PERFORMANCE IN DISCOTHEQUES. IF YOU
DEMAND OUTSTANDING SOUND PERFORMANCE WITH OPTIMAL SOUND DISPERSION IN THE NEAR FIELD, THE
HIGHEST SPL AND AT THE SAME TIME AN EFFICIENT AND RELIABLE CRYSTAL CLEAR SOUND SYSTEM YOU
FOUND IT.

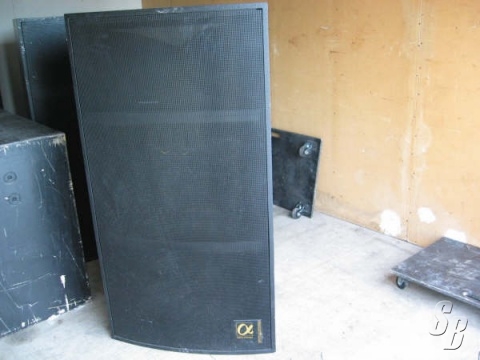

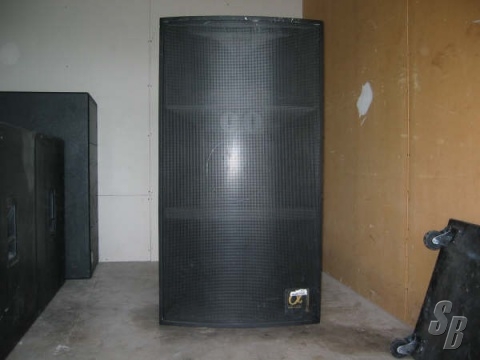

DYNACORD ALPHA X-1/90

THE ALPHA X-1 SYSTEM IS A HORN-LOADED, ACTIVE 3-WAY LOUDSPEAKER SYSTEM. THE BASS-REFLEX TUNING OF THE TWO 15" DRIVERS, COUPLED WITH A CONSTANT DIRECTIVITY HORN, PROVIDES EXTREMELY PRECISE AND PUNCHY REPRODUCTION OF THE LO-MID FREQUENCIES – DOWN TO 80 HZ. IN THE RANGE OF 800 HZ TO 8 KHZ, THE TRULY DYNAMIC AND CLEAR REPRODUCTION OF MID-HI FREQUENCIES IS TAKEN CARE OF BY A 2" HIGH-PERFORMANCE DRIVE UNIT WITH A TRUE CONSTANT DIRECTIVITY HORN (90° X 40°). THE BRILLIANT HI-FREQUENCY REPRODUCTION IS PROVIDED BY TWO DIFFRACTION OR RING RADIATORS (90° OR 60°).

65HZ – 23KHZ

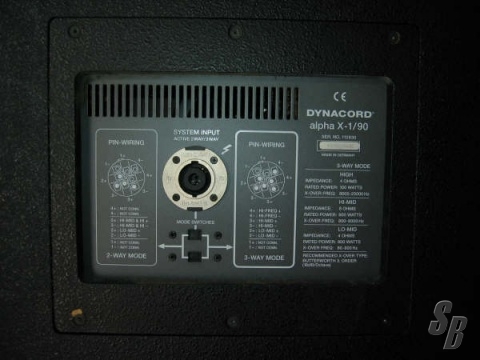

8PIN SPEAKON
1600W PROGRAM / 135 DB SPL
3200W PEAK / 141 DB SPL
DIMENSIONS (WXHXD) 763MM X 1440MM X 720MM
WEIGHT 137KG

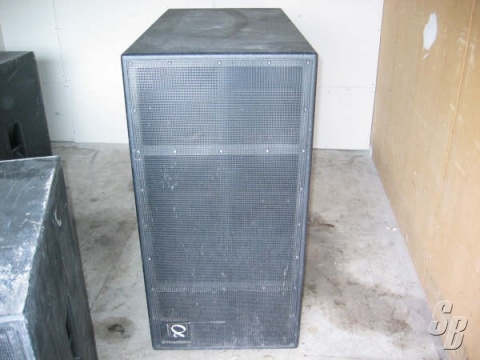

DYNACORD ALPHA B-3

THE ALPHA B-3 SYSTEM INCORPORATES 2 X 18" PWH – PLANAR WAVEGUIDE SUB WOOFERS. THE PWH SUB WOOFERS' CONSTRUCTION ADDITIONALLY LIMITS THE CONE'S EXCURSION, GUARANTEEING TRULY FAITHFUL IMPULSE REPRODUCTION, EXCELLENT DYNAMIC CAPABILITIES, VERY LOW DISTORTION, AND CONTINUOUS RELIABLE OPERATION. ALPHA B-3 SYSTEMS PROVIDE EXTRAORDINARY DIRECTIVITY IN THE LOW-FREQUENCY RANGE DOWN TO 35 HZ, COMBINING THE ADVANTAGES OF DIRECT-RADIATING AND HORN-LOADED SYSTEM PRINCIPLES. THE UNIQUE PWH-DESIGN MAKES THE B-3 SYSTEM SUPERIOR TO ANY CONVENTIONAL SUB WOOFER-DESIGN.

35HZ – 1.7 KHZ
2 X 4 PIN SPEAKON
2000W / 4 OHMS 133 SPL
4000W PEAK / 139 DB SPL
DIMENSIONS (WXHXD) 1200MM X 610MM X 1220MM
WEIGHT 120KG

EXTRAS: NO.

MODIFICATIONS: NO.ALL ORIGINAL

HISTORY: USED IN NIGHT CLUB FOR ABOUT 20 MONTHS. UNITS NEED TO BE CLEANED. SOME SMALL DROPS OF PAINT FELL ON THE BOXES DURING RENOVATIONS. THE CLUB WAS SOLD AND TURNED INTO A LOUNGE THERE IS NO NEED FOR A LARGE SOUND SYSTEM ANYMORE.

COMMENTS: ALL DRIVERS/SPEAKERS/WOOFERS ARE IN PERFECT WORKING CONDITION. SOLD AS A SYSTEM PRICED AS A SYSTEM. PLEASE VISIT DYNACORDS ALPHA CONCEPT WEB SITE FOR MORE INFO:

HTTP://WWW.ALPHACONCEPT-DYNACORD.DE/ENGLISH/NEWS_E.PHP

THIS UNIT WAS NEVER TOURED
