ID # 92351    CURRENT CATEGORY - PA SYSTEMS

APOGEE 3X3S2 (PAIR)
[PRICED PER UNIT - 9 AVAILABLE AT TIME OF LISTING]
Listing last update on January 11, 2018 - Viewed 901 times

Click on thumbnail to enlarge

APOGEE 3X3S2 (PAIR)
[PRICED PER UNIT - 9 AVAILABLE AT TIME OF LISTING]



APOGEE 3X3S2 (YOM: ?) (S#: TBD) GOOD (7-8)

FEATURES: LOW FREQUENCY: DUAL APOGEE 15"(381MM) PERMANENT MAGNET CONE-TYPE DRIVERS ARE TREATED WITH A WATERPROOFING COMPOUND, PROVIDING RESISTANCE TO MOISTURE, AND ENABLING LONG-TERM STABILITY OF
CONE RESONANCE AND CONE MASS PARAMETERS

MID FREQUENCY: ONE APOGEE 2"(51MM) MID-RANGE COMPRESSION DRIVER IS TREATED WITH FERROFLUID® FOR GREATER POWER HANDLING CAPABILITY, LOWER DISTORTION, AND CONTROL OF SHORT-TERM IMPEDANCE
RISE

HIGH FREQUENCY: ONE APOGEE 1"(25MM) COMPRESSION DRIVER TREATED WITH FERROFLUID

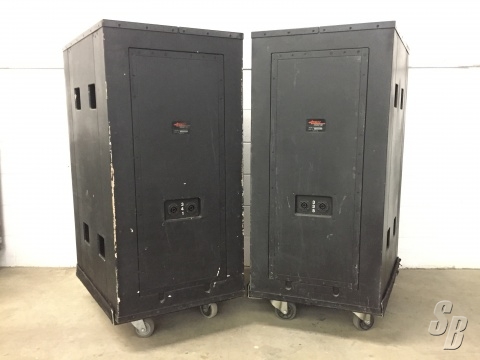

INPUT CONNECTORS: NEUTRIK™ NL8MP SPEAKON™

FORMAT:
TRI-AMPED/THREE WAY
DISPERSION:
H: 60° X V: 40°
FREQUENCY RESPONSE (1M ON AXIS):
55 HZ TO 17.3 KHZ ± 3 DB
MAX. SPL (@1M):
132 DB CONT./138 DB PEAK
PTML (PEAK TRANSIENT MECHANICAL LIMIT):
152 DB
SENSITIVITY (1W @ 1M):
LF: 109 DB/100 HZ TO 1 KHZ
MF: 110 DB/1 KHZ TO 7 KHZ
HF: 95 DB/7 KHZ TO 20 KHZ
NOMINAL IMPEDANCE:
8 OHMS EACH DRIVER; ALL HAVE SEPARATE CONNECTIONS
MAX. POWER HANDLING:
LF: 800W CONT./3200 W PEAK
MF: 150W CONT./600 W PEAK
HF: 100W CONT./400 W PEAK
DIMENSIONS:
FRONT: 29"(737MM) W X 45"(1143MM) H
REAR: 22"(559MM) W X 45"(1143MM) H
DEPTH: 30"(762MM)
WEIGHT:
270 LBS. (122.5 KG) (PER UNIT)

EXTRAS:

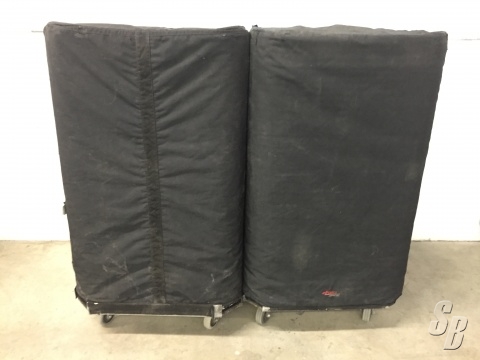

INCLUDES WHEEL DOLLIES, AND BAG COVERS. FLY HARDWARE INSTALLED ON EACH UNIT.
RIGGING HARDWARE:

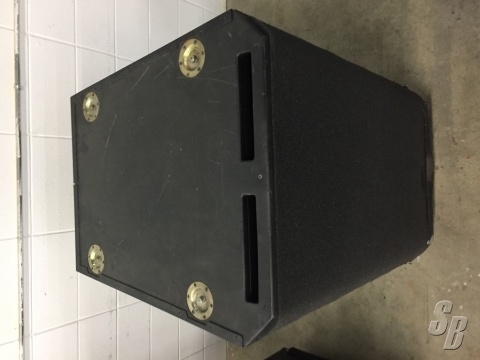

EIGHT 12-GAUGE STEEL NUTPLATES, MOUNTED FOUR ON TOP AND FOUR ON
BOTTOM, RECESSED, NOMINALLY FLUSH; ACCEPTS 3/8"-16 THREAD
STANDARD, (10MM NUTPLATE OR AEROQUIP PAN FITTINGS OPTIONAL);
NUTPLATES ARE BACKED WITH 12-GAUGE STEEL INTERNAL BRACKETS

HARDWARE RIGGING AVAILABLE AS ADDITIONAL OPTIONS: FLYBAR, 15 AND 30 DEGREE COUPLERS AVAILABLE ON REQUEST.

MODIFICATIONS: NO MODIFICATIONS.

HISTORY: FROM OUR RENTAL INVENTORY. SOME TOURING, MOSTLY USED LOCALLY.

COMMENTS: THESE APOGEE 3X3 S2 TRI-AMPED BOXES ARE FROM OUR RENTAL INVENTORY, AND IN OVERALL EXCELLENT HEALTH AND CONDITION. SOME SCRATCHES AND WEAR FROM USE, BUT OVERALL IN GREAT SHAPE. ITEMS ARE SOLD IN PAIRS.

THIS UNIT WAS TOURED

WWW.SOUNDBROKER.COM LINKING BUYERS AND SELLERS TOGETHER SINCE 1997 FOR NEW AND USED PROFESSIONAL AUDIO, LIGHTING, STAGING, PROJECTORS, AND VIDEO EQUIPMENT.

Additional Details
ID#: 92351
Listing Type:
Standard
Model: 3X3S2
Manufacturer: APOGEE
Condition: GOOD (7-8)
Shipping Info: 575.00 lbs.,
Seller's Location: AB, Canada
Updated: January 11, 2018
M.S.R.P.: $0.00
Asking Price: SOLD
