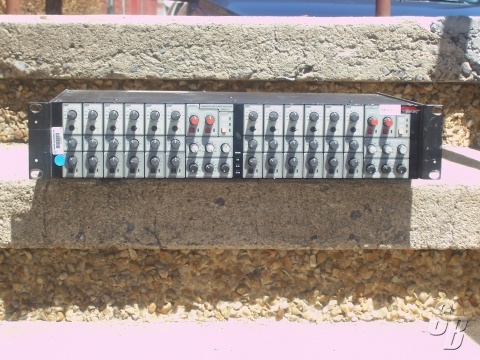

APOGEE CRQ-12 PARAMETRIC MULTI-MODE EQUALIZER
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Listing last update on April 29, 2010 - Viewed 80 times

APOGEE CRQ-12 (YOM: ?) (S#: TBD) SUPERB (8-9)

FEATURES: THE CRQ-12 PARAMETRIC EQUALIZER OFFERS A WEALTH OF POSSIBILITIES FOR SONICALLY SHAPING LARGE, COMPLEX SOUND SYSTEMS. ITS COMBINATION OF HIGH-QUALITY FILTER COMPONENTS AND CONFIGURABLE ARCHITECTURE HANDLES THE MOST DIFFICULT EQUALIZATION TASKS QUICKLY AND ACCURATELY.

THE CRQ-12 IS A "MULTI-MODE" PARAMETRIC EQUALIZER WITH THREE DISTINCT CONFIGURATIONS.
• IN THE 6/6 MODE, THE UNIT FUNCTIONS AS TWO DISCREET EQUALIZERS WITH SIX BANDS EACH. EACH CHANNEL HAS TWO INDEPENDENT OUTPUTS WITH SEPARATE LEVEL CONTROLS AND MUTE SWITCHES, 12 DB PER OCTAVE LOW-PASS AND HIGH-PASS FILTERS WITH ADJUSTABLE CORNER FREQUENCIES, AND LOW AND HIGH FREQUENCY SHELVING FILTERS, EACH WITH ADJUSTABLE TURNOVER FREQUENCY AND THE ABILITY TO BOOST AS WELL AS CUT.
• THE 6/12 MODE UTILIZES A SINGLE INPUT. THE A CHANNEL OUTPUTS ARE DEPENDENT ON THE SETTINGS OF THE FIRST SIX BANDS, WHILE THE B CHANNEL OUTPUTS REFLECT THE SETTINGS OF ALL TWELVE BANDS. EACH CHANNEL RETAINS ITS TWO INDEPENDENT LEVEL CONTROLS AS WELL AS ITS LOW-PASS, HIGH-PASS AND LOW AND HIGH SHELVING CONTROLS.
• IN THE 12/12 MODE, BOTH THE A AND B CHANNEL OUTPUTS REFLECT THE SETTINGS OF ALL TWELVE FILTERS, BUT THE TWO OUTPUT SECTIONS WITH THEIR RESPECTIVE GAIN CONTROLS, LOW AND HIGH PASS CONTROLS, AND SHELVING FILTERS REMAIN INDEPENDENT.
EACH PARAMETRIC FILTER IS FULLY ADJUSTABLE THROUGHOUT THE ENTIRE AUDIO FREQUENCY RANGE (20HZ-20KHZ), BY UTILIZING A THREE-POSITION RANGE SWITCH. EVERY BAND ALSO INCLUDES AN IN/OUT SWITCH WITH A CORRESPONDING LED INDICATOR. THE BOOST AND CUT CONTROLS FEATURE A CENTER DETENT AT THE NEUTRAL POSITION (ZERO BOOST OR CUT) AND PROVIDE A RANGE OF -20 TO +15 DB. BANDWIDTH CONTROLS ALLOW ADJUSTMENT FROM 1/25 OF AN OCTAVE TO MORE THAN 2 OCTAVES WIDE.

THE CRQ-12 UTILIZES EXTREMELY HIGH-GRADE COMPONENTS THROUGHOUT, INCLUDING PRECISION PLASTIC CONDUCTOR POTS, METAL FILM RESISTORS, POLYPROPYLENE CAPACITORS, HIGH-GRADE OP-AMPS SPECIALLY DESIGNED FOR AUDIO FILTER CIRCUITS AND A RUGGED STEEL CHASSIS. THE CRQ-12 IS COOLED BY A VARIABLE SPEED FAN FOR ABSOLUTE STABILITY OF FILTER SETTINGS REGARDLESS OF AMBIENT TEMPERATURE. A PASSIVE "HARD-WIRE" BYPASS LEVEL CONTROL IS UTILIZED ON EACH OUTPUT TO PREVENT FEEDBACK IN THE EVENT OF POWER LOSS.

SPECIFICATIONS:
FREQUENCY RESPONSE 20 HZ: 20 KHZ (±0.5 DB)
DISTORTION <0.003% MEASURED AT +21 DBU (1KHZ)
CROSSTALK -80 DBA
OVERLOAD INDICATION +20 DBU

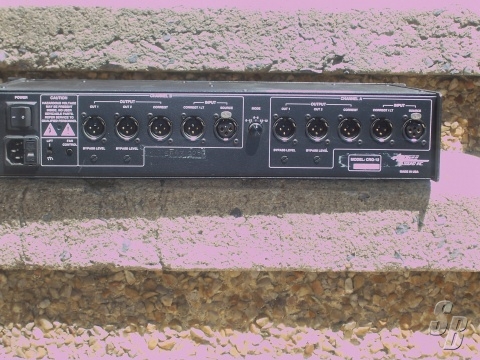

INPUT CONNECTIONS 3 PIN XLR, ELECTRONICALLY BALANCED
INPUT IMPEDANCE 50K OHMS, BALANCED (25K OHMS, UNBALANCED)
OUTPUTS 3 PER CHANNEL (2 HAVE INDEPENDENT LEVEL CONTROL, 1 OUTPUT FIXED)
OUTPUT CONNECTIONS 3 PIN XLR, ELECTRONICALLY BALANCED
OUTPUT IMPEDANCE 600 OHMS, BALANCED (600 OHMS, UNBALANCED)
MAXIMUM OUTPUT LEVEL +25 DBU
DYNAMIC RANGE 115 DB
FILTERS TYPE: PARAMETRIC (VIA RANGE SWITCH), SIX BANDS PER CHANNEL
BANDWIDTH: VARIABLE FROM 1 D25 - 2 OCTAVES
CUT & BOOST: -20 DB, +15 DB
HIGH CUT: 3.2 KHZ : 35 KHZ, 12 DB PER OCTAVE
HIGH FREQUENCY SHELVING: 670 HZ : 11 KHZ, -15 DB, +15 DB
LOW CUT: 15 HZ - 200 HZ, 12 DB PER OCTAVE
LOW FREQUENCY SHELVING: 40 HZ - 430 HZ, -15 DB, +15 DB
BYPASS LEVEL CONTROL PASSIVE, ONE FOR EACH OUTPUT (FOUR TOTAL)
MODE SWITCH DETENTED: SELECTS BETWEEN 6/6, 6/12 AND 12/12 MODES
COOLING VARIABLE SPEED DC FAN
GROUND LIFT DETENTED RECESSED SWITCH
FAN CONTROL PUSH SWITCH: LOCKS FAN IN LOW-SPEED MODE
INDICATORS ONE GREEN LED PER FILTER (IN/OUT), ONE RED LED PER OUTPUT (ON/OFF), TWO COLOR (GREEN/RED) LED FOR SIGNAL PRESENCE AND INPUT OVERLOAD, ONE GREEN LED FOR CHANNEL READY, ONE GREEN LED FOR CHANNEL IN/OUT, THREE GREEN LEDS FOR MODE INDICATION (6/6, 6/12, 12/12)
LINE VOLTAGE SWITCHABLE: 100, 120 OR 220, 240 VAC, 50/60 HZ
CONSTRUCTION 16 GAUGE STEEL CHASSIS, WELDED BOX DESIGN


EXTRAS: NO

MODIFICATIONS: NO

HISTORY: USED ON BROADWAY SHOW

COMMENTS: IN GOOD WORKING CONDITION, SOME MARKS AND SCRATCHES

THIS UNIT WAS NEVER TOURED
