ID # 36436 CURRENT CATEGORY - MICROPHONES/WIRELESS

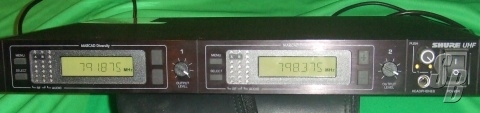

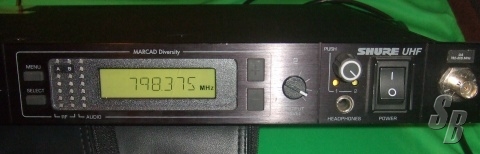

SHURE WIRELESS U4D-UA WITH (2) BETA 87(C)
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Listing last update on September 12, 2008 - Viewed 104 times
Click on thumbnail to enlarge
Asking Price:
SOLD
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
DESCRIPTION: SHURE U4D-UA WITH BETA87C MICS (YOM: ?) (S#: TBD) LIKE NEW (9-10)
FEATURES: THE SHURE U4D IS A DUAL CHANNEL, UHF WIRELESS MICROPHONE RECEIVER DESIGNED FOR USE WITH SHURE UHF SERIES WIRELESS MICROPHONE SYSTEMS. DUAL INTERNAL RECEIVERS ENABLE INDEPENDENT, SIMULTANEOUS OPERATION OF 2 MICROPHONE TRANSMITTERS.
TYPE OF RECEIVER
U4D - RACK/TABLE TOP MOUNTABLE SINGLE UHF
MARCAD® DIVERSITY
RF CARRIER FREQUENCY RANGE
782 - 806 MHZ
APPROX. WORKING RANGE
500 FEET (152.4 M) UNDER TYPICAL
CONDITIONS
OVERALL FREQUENCY RESPONSE
50 HZ - 15 KHZ, +/-2DB
SIGNAL-TO-NOISE RATIO
100 DB (45 KHZ DEVIATION)
# OF CHANNELS
OVER 100 (FREQUENCY SET UA - 782 TO 806 MHZ)

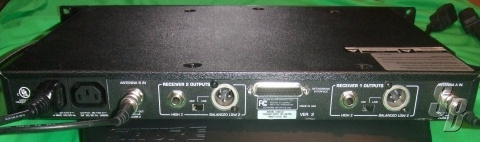

TYPE OF OUTPUT(S)
BALANCED XLR (SWITCHABLE, MIC/LINE) AND 1/4" (HI-Z) PHONE JACK
HEADPHONE MONITORING
YES, 1/4" WITH LEVEL CONTROL
POWER REQUIREMENTS
90 TO 230V AC, 50/60 HZ / INTERNAL POWER SUPPLY 110V/220V SWITCHABLE
BATTERY TYPE/APPROX. LIFE
NOT APPLICABLE, UNIT DOES NOT OPERATE ON BATTERIES

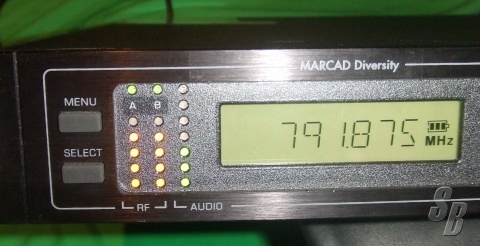

DISPLAY
ACTUAL FREQUENCY IN MEGAHERTZ, GROUP /CHANNEL, PERFORMER'S NAME, SQUELCH SETTING, MENU LOCKOUT STATUS, BATTERY FUEL GAUGE, UHF TV CHANNEL
MOUNTING OPTIONS
RACK/TABLE-TOP MOUNT
ANTENNA TYPE
1/2 WAVE, WITH BNC CONNECTORS
DIMENSIONS
1.75 X 19 X 11.625" (44.5 X 482.6 X 295.3MM) HXWXD
WEIGHT
8.48 LBS. (3.85 KG)

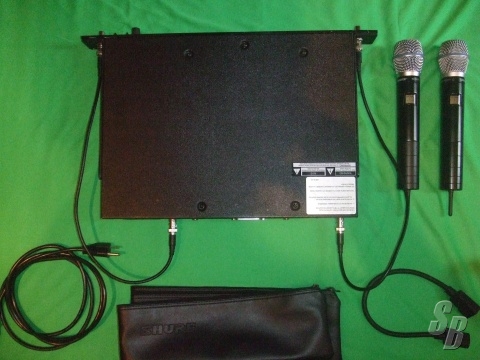

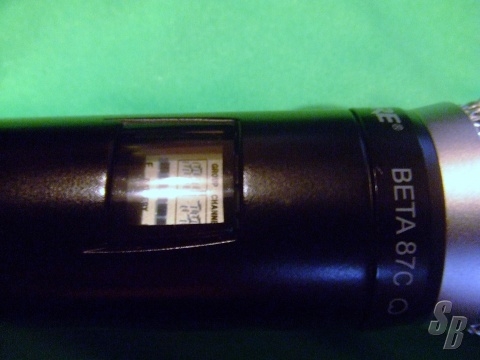

EXTRAS: (2) BETA 87C HAND HELD MICROPHONES
(3) SOFT BAGS FOR MICS/ANTENNA
(2) 1/2 WAVE ANTENNAS
(2) 2-FT BACK-TO-FRONT ANTENNA CABLES
(2) BULK-HEAD ADAPTERS FOR FRONT MOUNTING ANTENNAS
POWER CORD
DAISY CHAIN POWER CORD
MODIFICATIONS: RACK MOUNT KIT INCLUDED WITH FACTORY FRONT MOUNT OR REAR BNC ANTENNA ADAPTERS.
HISTORY: THEATRICAL TOURING APPLICATION.
NO FESTIVALS!
ARTIST OWNED
ITEM WAS USED 3 MONTHS OUT OF THE YEAR PER YEAR FOR LAST 4 YEARS.
TOURED IN A SHOCK MOUNTED RACK WHEN OUT.
COMMENTS: BRAND NEW ANTENNA(S) FROM SHURE!
ITEM WAS USED IN A COMBINER SET-UP ORIGINALLY.
THIS UNIT WAS TOURED
| Additional Details | |
| ID#: | 36436 |
| Listing Type: |
Standard
|
| Model: | U4DUA WITH BETA87C MICS |
| Manufacturer: | SHURE |
| Condition: | LIKE NEW (9-10) |
| Shipping Info: | 8.48 lbs., 1.75 X 19 X 11.625" |
| Seller's Location: | WI, USA |
| Updated: | September 12, 2008 |
| M.S.R.P.: | $0.00 |
| Asking Price: | SOLD |
|
CONSUMER ALERT
Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device.
Wireless microphone device that operate in portions of the 617-652 MHz or 663-698 MHz frequencies. Beginning in 2017, these frequencies are being transitioned by the Federal Communications Commission (FCC) to the 600 MHz service to meet increasing demand for wireless broadband services. Users of this device must cease operating on these frequencies no later than July 13, 2020. In addition, users of this device may be required to cease operations earlier than that date if their operations could cause harmful interference to a 600 MHz service licensee’s wireless operations on these frequencies. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888- CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC’s wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones. |
|
To operate wireless microphone systems at power greater than 50mW, you must qualify as a Part 74 user and be licensed.
NOTE – This has not changed at all and has been in effect for over 20 years. If you qualify and wish to apply for a license go to: http://www.fcc.gov/Forms/Form601/601.html Look under BROADCAST AUXILIARY – Land Mobile (Part 74) You will need forms FCC 601 Schedule d and Schedule H From the FCC docket 10-16 – Page 7 – (boldface has been added by us) 10. Under Section 74.832, only certain entities may be issued licenses authorizing the use of low power auxiliary stations. In particular, these entities fall within the following categories: (1) licensees of AM, FM, TV, or International broadcast stations or low power TV stations; (2) broadcast network entities; (3) certain cable television system operators; (4) motion picture and television program producers as defined in the rules; and (5) certain entities with specified interests in Broadband Radio Service (BRS) and Educational Broadcast Service (EBS) licenses, i.e., BRS licensees (formerly licensees and conditional licensees of stations in the Multipoint Distribution Service and Multi-channel Multipoint Distribution Service), or entities that hold an executed lease agreement with a BRS licensee or conditional licensee or entities that hold an executed lease agreement with an Educational Broadcast Service (formerly Instructional Television Fixed Service) licensee or permittee.25 Cable television operations, motion picture and television program producers may be authorized to operate low power auxiliary stations only in the bands allowed for TV broadcasting.26 All classes of broadcast auxiliary stations provided for in Subpart H, except wireless video assist devices (WVADs), may be operated on a short term basis under the authority conveyed by a Part 73 license or a broadcast auxiliary license without prior authorization, subject to conditions. |
