Buy Us a CoffeeID # 67229 CURRENT CATEGORY - SPEAKERS/LINE ARRAY
YAMAHA 2-WAY SPEAKER
[PRICED PER UNIT - 6 AVAILABLE AT TIME OF LISTING]
Listing last update on February 19, 2013 - Viewed 1075 times
Click on thumbnail to enlarge
Asking Price:
SOLD
[PRICED PER UNIT - 6 AVAILABLE AT TIME OF LISTING]

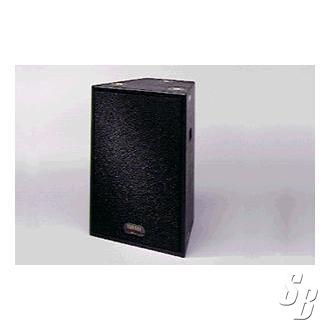

YAMAHA S1520S (YOM: ?) (S#: TBD) GOOD (7-8)
FEATURES: FREQUENCY RESPONSE 45 HZ-20 KHZ, +/-3 DB
POWER CAPACITY: LF NOISE 200 WATTS PROGRAM 400 WATTS MAXIMUM 800 WATTS
POWER CAPACITY: HF NOISE 40 WATTS PROGRAM 80 WATTS MAXIMUM 160 WATTS
MAXIMUM SPL 126 DB @ 1 METER (CONTINUOUS) 133 DB @1 METER (PEAK)
-6 DB COVERAGE ANGLE: S1520S-60 60 DEGREES HORN 60 DEGREES H X 55 DEGREES V
-6DB COVERAGE ANGLE: S1520S-105 105 DEG. HORN 105 DEG. H X 55 DEG. V

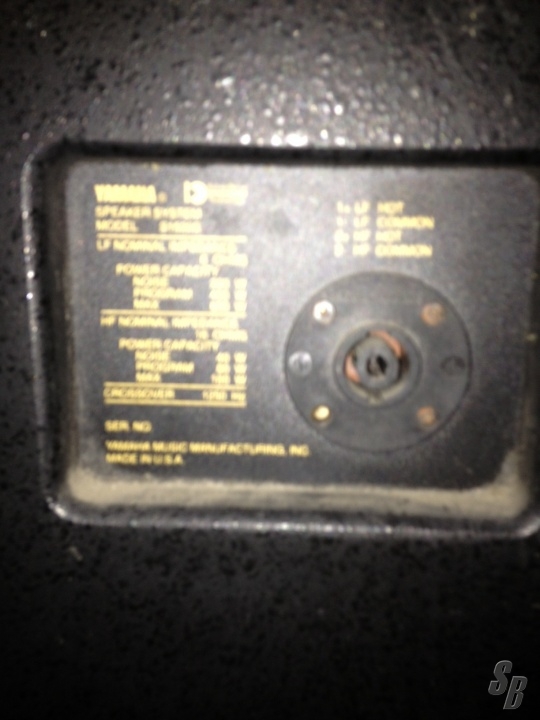

NOMINAL IMPEDANCE LF 6 OHMS HF 16 OHMS
SENSITIVITY (1W/1M) LF 100 DB SPL HF 110 DB SPL
ENCLOSURE TYPE BASS REFLEX
ENCLOSURE VOLUME: 3.35 CU. FT. (95 LITER)
EXTRAS: NO EXTRAS

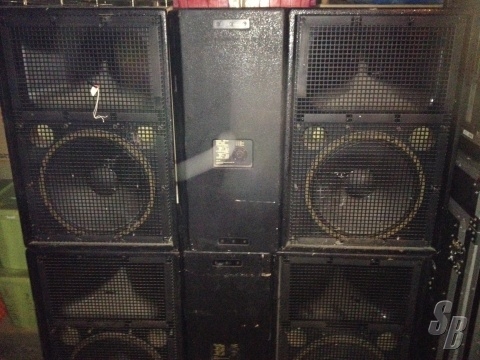

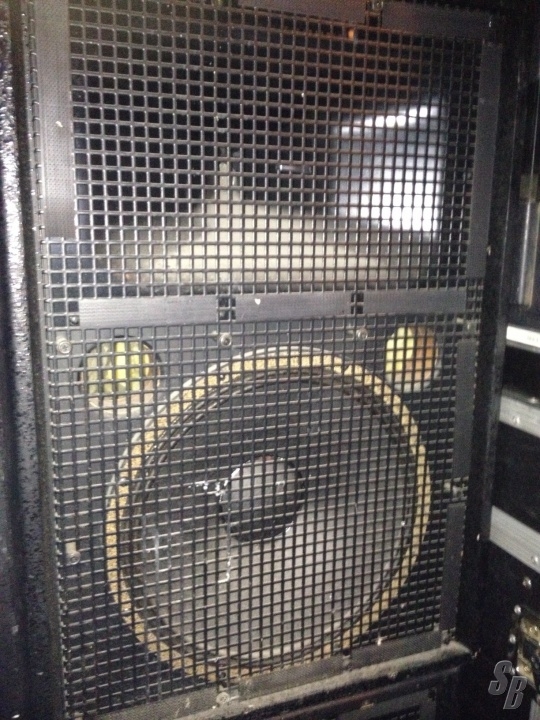

MODIFICATIONS: ALL 6 SPEAKERS HAVE BEEN FULLY SERVICES WITH NEW DIAPHRAGMS.
HISTORY: FLOWN IN A CLUB IN SAN FRANCISCO
COMMENTS: SPEAKERS NEED FOAM PADS
THIS UNIT WAS NEVER TOURED
| Additional Details | |
| ID#: | 67229 |
| Listing Type: |
Standard
|
| Model: | S1520S |
| Manufacturer: | YAMAHA |
| Condition: | GOOD (7-8) |
| Shipping Info: | 105.00 lbs., 31X22X18 |
| Seller's Location: | CA, USA |
| Updated: | February 19, 2013 |
| M.S.R.P.: | $0.00 |
| Asking Price: | SOLD |
