SLS LS6500 COMPACT LINE ARRAY (24UNITS) & 215EL SUBWOOFERS (4 UNITS) PACKAGE
[PRICE SHOWN FOR THE ENTIRE CONTENT OF THIS LISTING]
Listing last update on April 21, 2017 - Viewed 305 times

SLS LOUDSPEAKERS LS6500 215EL (YOM: ?) (S#: TBD) GOOD (7-8)

FEATURES:

YOU ARE VIEWING AN INCREDIBLE LINE ARRAY AND SUB PACKAGE BY SLS AUDIO, AMP RACK AVAILABLE WITH EV CPS2.6 AND 2.11 AMPS, OR WE CAN BUILD A RACK TO YOUR LIKING.

REMOVED FROM A FIXED INSTALL , NEAR MINT CONDITION!!!

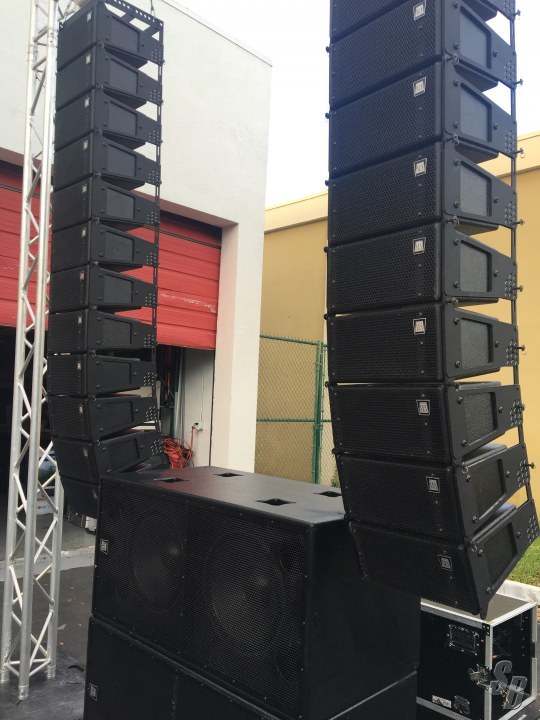

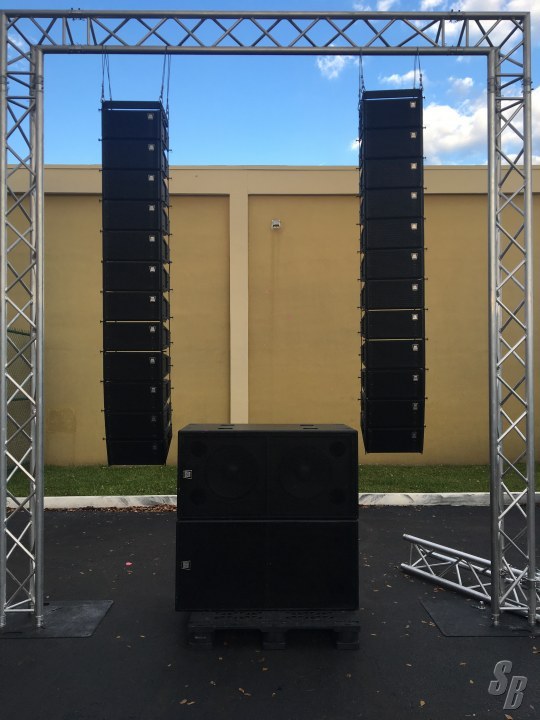

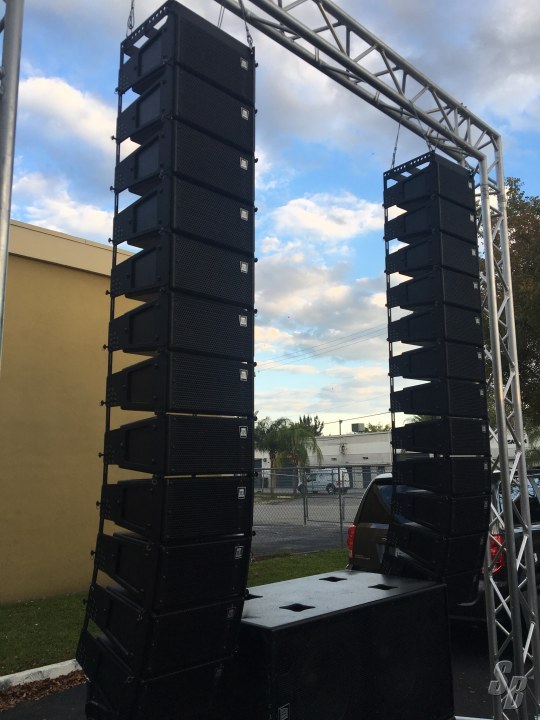

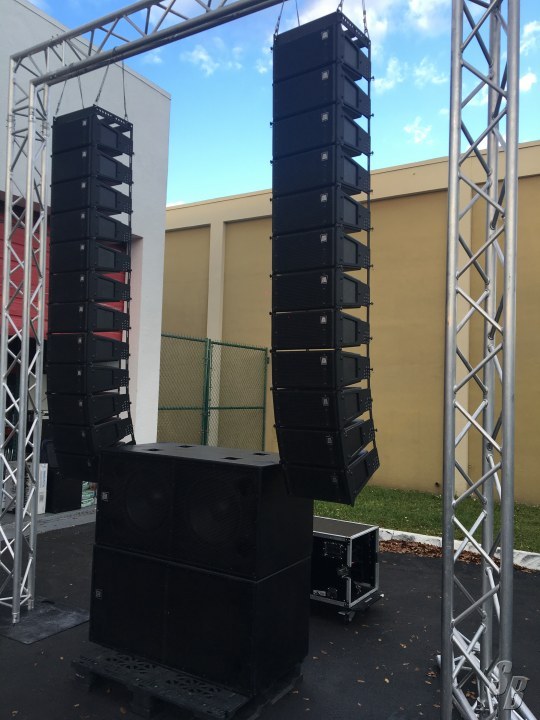

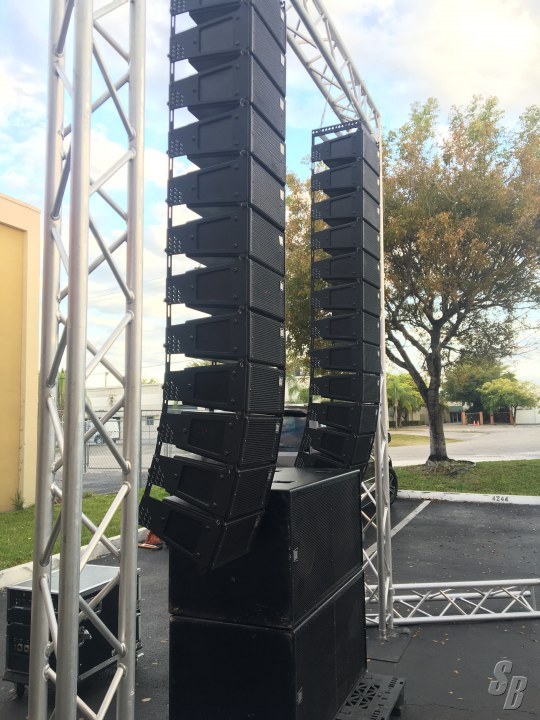

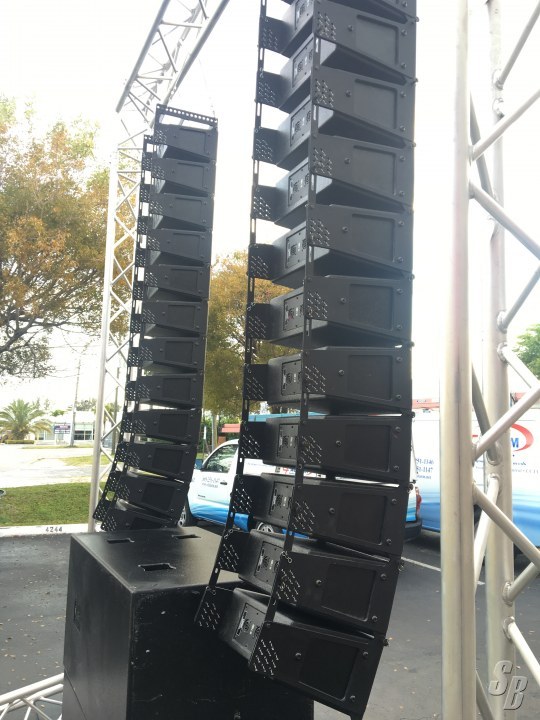

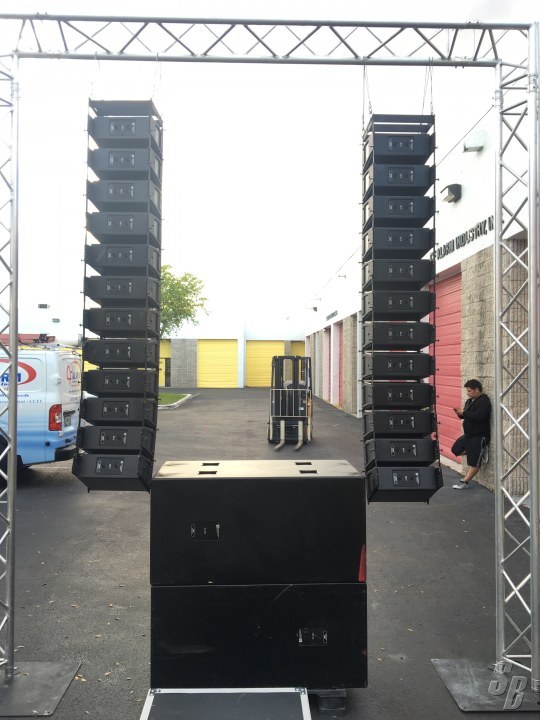

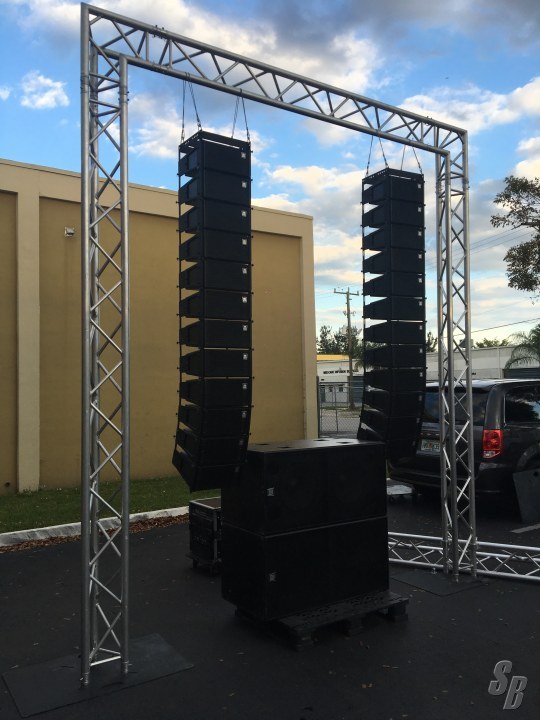

INCLUDES:
(24) LS6500 RIBBON LINE TOPS
(4) 215EL DUAL 15" EXTENDED RANGE SUBWOOFERS

TOPS:
THE LS6500 IS A FULL-RANGE BI-AMPED TRUE LINE SOURCE ARRAY MODULE. IT IS A LIGHTWEIGHT AND COMPACT UNIT ALLOWING LINE ARRAY PERFORMANCE IN A WIDE VARIETY OF VENUES.

THE LS6500 HIGH FREQUENCY SECTION FEATURES A HIGH PERFORMANCE PRD500 PLANAR RIBBON TRANSDUCER DESIGNED AND MANUFACTURED BY SLS AUDIO. THE UNIQUE DESIGN AND PROPERTIES OF THE PLANAR RIBBON DRIVER ALLOWS PRECISE ACOUSTICAL COUPLING OF THE ARRAY AND HENCE, FULL UTILIZATION OF LINE SOURCE (CYLINDRICAL WAVES) BENEFITS.

THE WOOFER SECTION USES A SINGLE HIGH QUALITY 6 ½" DRIVER WITH PARAMETERS CALCULATED TO OFFER A SEAMLESS TRANSITION TO THE PRD500 RIBBON.

SUBWOOFERS:
215EL
FREQUENCY RESPONSE 38-800 HZ -3DB
POWER HANDLING (W) RMS / W) PEAK 1200W (2X600) /
4800W (2X2400)
MAXIMUM SPL 132DB CONT. / 138DB PEAK
DISPERSION ANGLE - - - -L
SENSITIVITY DB SPL @ 1M, (2.83V) 103DB
NOMINAL IMPEDANCE 4 OHMS / 8 OHMS X 2
RECOMMENDED CROSSOVER FREQUENCY 100HZ LO PASS
DRIVE COMPONENTS 15" CONE CAST FRAME WOOFER X 2
INPUT CONNECTIONS 2 X NL4MPR
DIMENSIONS 45.312" (115CM) H, 22" (56CM) W, 23.5" (60CM) D
WEIGHT 145LBS. (66KG)
ENCLOSURE 13-PLY BALTIC BIRCH, BLACK NEVERMAR, WHITE, NATURAL

EXTRAS:

INCLUDED ARE TWO RIGGING BUMPERS

MODIFICATIONS:

NONE

HISTORY:

FIXED INSTALL IN A MULTI USE VENUE

COMMENTS:

N/A

THIS UNIT WAS NEVER TOURED
