ID # 69589    CURRENT CATEGORY - LIGHTING INTELLIGENT

For Sale: ROBE 575 AT COLOR SPOT PAIR
[PRICED PER UNIT - 4 AVAILABLE AT TIME OF LISTING]
Listing last update on March 28, 2019 - Viewed 1040 times

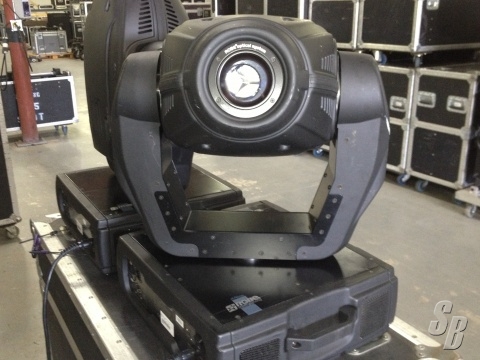

ROBE 575 AT COLOR SPOT PAIR

ROBE COLOR SPOT 575 AT (YOM: ?) (S#: TBD) GOOD (7-8)

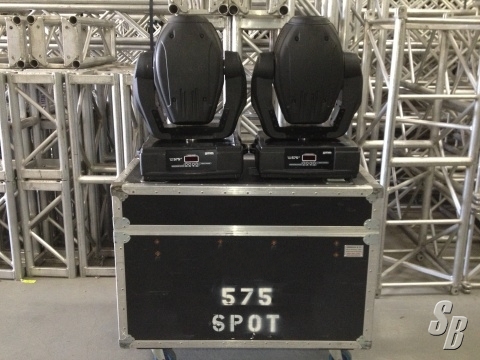

AVAILABLE: PRICED IN PAIRS INCLUDES FREE ROAD CASE.

FEATURES: THE COLORSPOT 575 AT INCLUDES ALL THE EFFECTS IMAGINABLE - TWO SEPARATE GOBO WHEELS WITH THE ″SLOT&LOCK″ SYSTEM, TWO SEPARATE COLOUR WHEELS (ONE WITH THE ″SLOT&LOCK″ SYSTEM), MOTORIZED MULTI-STEP ZOOM WITH THREE DIFFERENT APERTURES OF 15, 18 AND 22 DEGREES, MOTORIZED IRIS, PRISM, SEPARATE AND VARIABLE FROST EFFECT, REMOTE FOCUS AND MORE. A NEW OPTICAL SYSTEM AND A NEW DICHROIC GLASS REFLECTOR INCREASE THE LIGHT OUTPUT OF THE COLORSPOT 575 AT. COMPLETELY NEW SOFTWARE ENABLES VERY SMOOTH ROTATIONS OF GOBOS AND PRISM, AND 8- OR 16-BIT RESOLUTION FOR GOBO INDEXING, PRISM INDEXING AND DIMMER. THIS PRODUCT IS THE RIGHT SOLUTION FOR ALL TYPES OF INSTALLATIONS FROM BIG CLUBS, LARGE DISCOTHEQUES AND VENUES TO CONCERTS AND TOURING APPLICATIONS.

SOURCE
LAMP: COMPACT HIGH-PRESSURE METAL HALIDE LAMP
BASE: GX9.5
APPROVED MODEL: PHILIPS MSR 575/2
CONTROL: AUTOMATIC AND REMOTE ON/OFF
BALLAST: MAGNETIC

OPTICAL SYSTEM
DICHROIC GLASS REFLECTOR FOR MAXIMISING THE LIGHT EFFICIENCY
15, 18 AND 22 DEGREE BEAM ANGLES REMOTELY ADJUSTABLE
ELECTRICAL SPECIFICATION
WIRING OPTIONS: EU MODEL - 208/230/240 V, 50/60 HZ, US MODEL - 100/120/208/230 V, 50/60 HZ
POWER CONSUMPTION: 760 VA AT 230 V/50 HZ

MECHANICAL SPECIFICATION
HEIGHT: 574 MM (22.6 ") - HEAD IN HORIZONTAL POSITION
WIDTH: 470 MM (18.5 ")
DEPTH: 446 MM (17.6 ")
WEIGHT: EU MODEL - 32 KG (70.5 LBS), US MODEL - 36 KG (79.3 LBS)

THERMAL
MAXIMUM AMBIENT TEMPERATURE: 40 °C (104 °F)
MAXIMUM SURFACE TEMPERATURE: 80 °C (176 °F)

STATIC GOBOS
GLASS GOBOS - OUTSIDE DIAMETER: 26.9 MM, IMAGE DIAMETER: 22.5 MM, ALUMINIUM, THICKNESS: 0.5 MM

ROTATING GOBOS
DICHROIC GLASS GOBOS - OUTSIDE DIAMETER: 26.8 MM, IMAGE DIAMETER = 22.0 MM, THICKNESS: 1.1 MM, HIGH TEMPERATURE BOROFLOAT OR BETTER GLASS
GLASS GOBO - OUTSIDE DIAMETER: 26.8 MM, MAX. THICKNESS: 4 MM, HIGH TEMPERATURE BOROFLOAT OR BETTER GLASS

CONTROL AND PROGRAMMING
PROTOCOL: USITT DMX-512, RDM SUPPORT
CONTROL CHANNELS: 19, 21, 27 OR 29
DMX CHANNELS: 4 PROTOCOL MODES

BUILT-IN DEMO SEQUENCES
3-EDITABLE PROGRAMS, EACH UP TO 99 STEPS
STAND-ALONE OPERATION

MASTER/SLAVE OPERATION
DISPLAY: 4-DIGIT LED DISPLAY
PAN/TILT RESOLUTION: 16BIT
COLOUR WHEEL POSITIONING: 8 OR 16BIT
GOBO WHEEL POSITIONING: 8 OR 16BIT
FROST: 8 OR 16BIT
IRIS: 8 OR 16BIT
FOCUS: 8 OR 16BIT
DIMMER: 8 OR 16BIT

CONTROLLABLE SPEED OF FANS
MOVEMENT CONTROL: TRACKING AND VECTOR
BUILT-IN ANALYZER FOR EASY FAULT FINDING

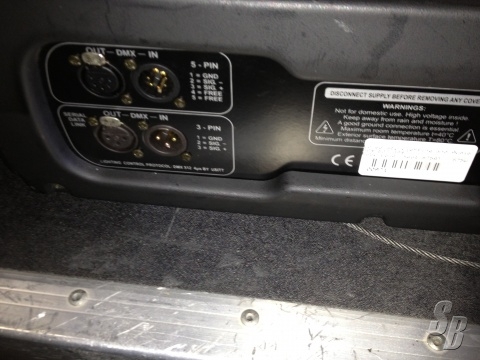

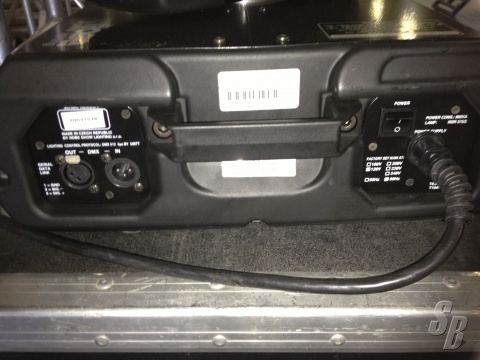

DATA IN/OUT: LOCKING 3-PIN XLR & 5-PIN XLR

ELECTROMECHANICAL EFFECTS
MOTORIZED MULTI-STEP ZOOM WITH THREE DIFFERENT APERTURES (15°, 18°, 22°)
COLOUR WHEEL 1: 9 DICHROIC FILTERS + OPEN
COLOUR WHEEL 2: 8 REPLACEABLE ″SLOT&LOCK″ DICHROIC FILTERS + OPEN(INCLUDING 3200K CORRECTION FILTER AND UV FILTER)
STATIC GOBO WHEEL: 9 REPLACEABLE ″SLOT&LOCK″ METAL GOBOS + OPEN
ROTATING GOBO WHEEL: 7 ROTATING, INDEXABLE, REPLACEABLE ″SLOT&LOCK″ GLASS GOBOS + OPEN
PRISM: 3-FACET PRISM ROTATING IN BOTH DIRECTIONS AT DIFFERENT SPEEDS
FROST EFFECT: SEPARATE, VARIABLE
DIMMER/SHUTTER: FULL RANGE DIMMING AND VARIABLE STROBE EFFECT, ELETRONIC STROBBING
IRIS: MOTORIZED IRIS FOR DIFFERENT BEAM DIAMETERS
FOCUS: MOTORIZED FOCUS
PAN: 530°
TILT: 280°

EXTRAS: MOVERS ARE SOLD AS PAIR ONLY

MODIFICATIONS: NONE

HISTORY: USED IN CONVENTION SETTINGS

COMMENTS: NONE

THIS UNIT WAS NEVER TOURED

WWW.SOUNDBROKER.COM LINKING BUYERS AND SELLERS TOGETHER SINCE 1997 FOR NEW AND USED PROFESSIONAL AUDIO, LIGHTING, STAGING, PROJECTORS, AND VIDEO EQUIPMENT.

Additional Details
ID#: 69589
Listing Type:
Standard
Model: COLOR SPOT 575 AT
Manufacturer: ROBE
Condition: GOOD (7-8)
Shipping Info: 0.00 lbs.,
Seller's Location: LA, USA
Updated: March 28, 2019
M.S.R.P.: $0.00
Offered at: $950.00
