ID # 83067    CURRENT CATEGORY - LIGHTING INTELLIGENT

ELATION EPV-762 MH LED VIDEO PANELS W/ MOVING HEAD (10 FIXTURES) PACKAGED WITH CONTROLLER
[PRICE SHOWN FOR THE ENTIRE CONTENT OF THIS LISTING]
Listing last update on June 06, 2019 - Viewed 1088 times

Click on thumbnail to enlarge

ELATION EPV-762 MH LED VIDEO PANELS W/ MOVING HEAD (10 FIXTURES) PACKAGED WITH CONTROLLER
[PRICE SHOWN FOR THE ENTIRE CONTENT OF THIS LISTING]

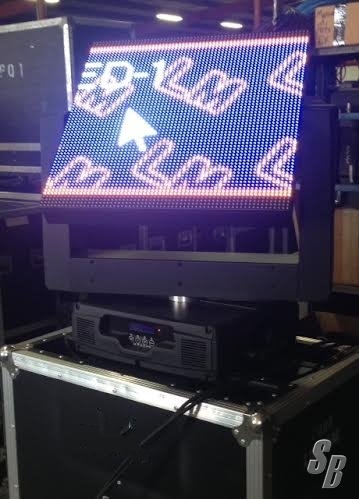

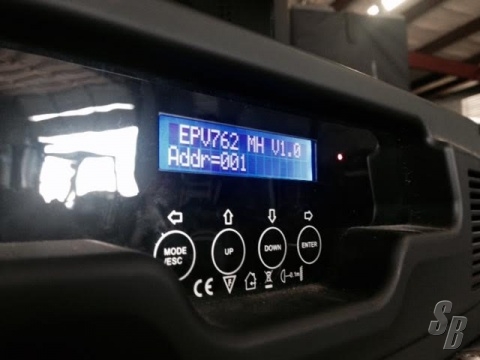

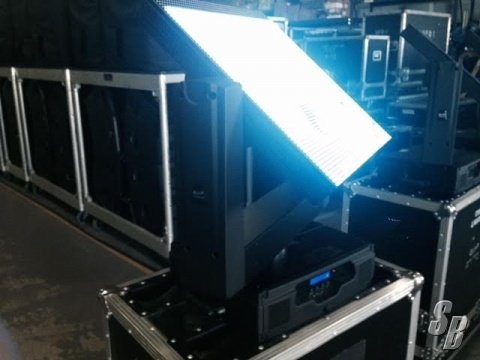

ELATION EPV-762MH (YOM: 2011) (S#: TBD) SUPERB (8-9)

FEATURES:
INTRODUCING THE (EPV) ELATION PRO VIDEO SERIES, HIGH RES LED MOVING HEAD VIDEO PANEL, INNOVATIVE, CREATIVE AND PROFESSIONAL LED VIDEO PRODUCT SOLUTION IDEAL FOR EVENT, DISPLAY AND STAGE. *SEE ADDITIONAL INFO BELOW

EXTRAS:
ITEMS IN THIS PACKAGE INCLUDE:

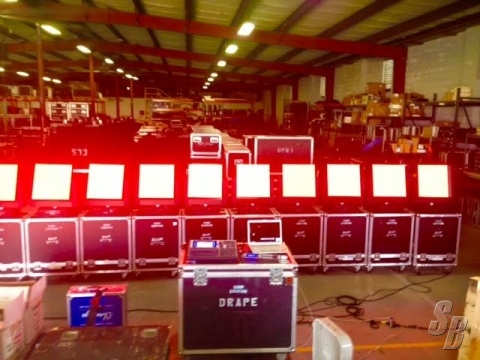

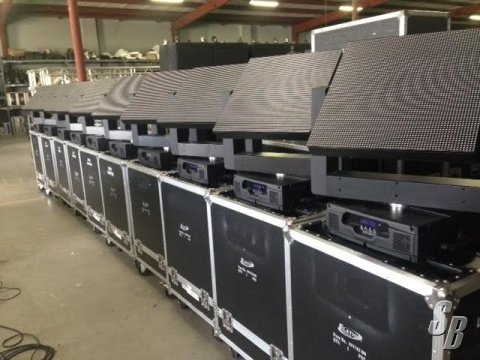

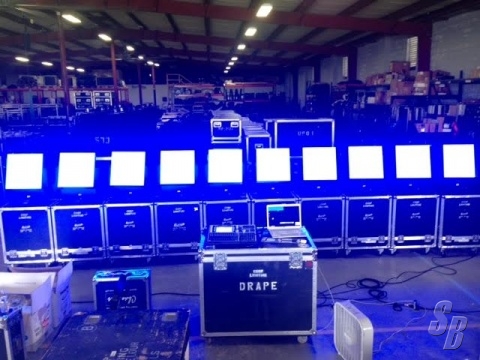

10 EPV-762MH FIXTURES
10 EPV-762MH ROAD CASES W/ CASTERS
20 OMEGA CLAMPS
10 SAFETY CABLES
1 EPV IMAGE VSC IMAGE PROCESSER/SCALER
1 EPV VSC PROCESSER

MODIFICATIONS: NONE

HISTORY: USAGE OF THESE FIXTURES WAS AT A MINIMAL,STILL IN GREAT CONDITION.

COMMENTS: NONE

THIS UNIT WAS NEVER TOURED

*ADDITIONAL INFO
. 3-IN-1 3528 SMD LED

. 7.62MM PIXEL PITCH

. 2,000HZ REFRESH RATE

. 540 X 265 DEGREE PAN / TILT

. PAN / TILT LOCK

. 16-BIT PROCESSING

. 2,000 NITS

. 3PIN & 5PIN DMX INPUTS FOR PAN/TILT CONTROL

. ETHERCON IN/OUT FOR VIDEO SIGNAL

. POWERCON IN/OUT FOR POWER LINK

. 6M MIN. VIEWING DISTANCE

. 17,222 PIXELS PER SQ MTR

. CETLUS APPROVAL

. INDOOR RATED

. 100-240V BUILT IN PSU

. 350WATTS (230W AVG)

. FRAME SIZE: 488MM X 488MM (19.2” X 19.2”)

. PIXELS PER PANEL: 64 X 64 (4,096 PIXELS TOTAL PER PANEL)

. 53LBS / 24KG

. FOR USE WITH EPV VSC OR EPV IMAGE VSC VIDEO PROCESSOR

. CETLUS APPROVED


ABOUT FROM ELATION.COM

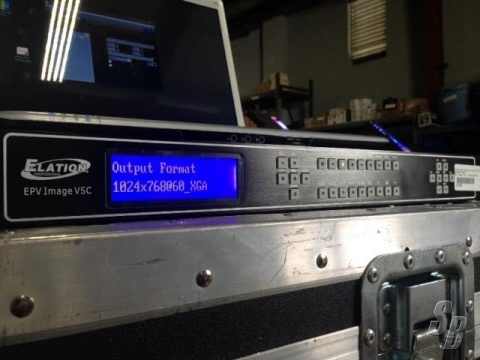

DESIGNED FOR USE WITH OUR EPV VIDEO PANELS BUT IS ALSO COMPATIBLE WITH MOST VIDEO PRODUCTS ON THE MARKET TODAY. THE EPV IMAGE VSC IS A COMBINED VIDEO IMAGE PROCESSOR AND SCALER WITH THE LATEST HIGH PERFORMANCE IMAGE PROCESSING TECHNOLOGY. THE EPV IMAGE VSC ALLOWS FOR A DVD PLAYER, CAMERA, ETC... TO BE CONNECTED DIRECTLY INTO IT SO NO COMPUTER IS NEEDED TO PLAY VIDEO CONTENT. EPV IMAGE VSC CAN HANDLE FOLLOWING VIDEO WITHOUT LIMIT, INCLUDE CVBS, COMPOSITE, S-VIDEO (YC),YCBCR,YPBPR,RGBHV,VGA,DVI-D,HDMI,SDI,SD-SDI,HD-SDI.


FEATURES:
. INPUT: (3) COMPOSITE, (1) SVIDEO, (1) VGA, (1) DVI,
(2) HDMI, (2) SDI (HD & SD COMPATIBLE
. OUTPUT: DVI AND VGA
. SUPORTS PIP, POP, PBP AS WELL AS USER-DEFINED
PIXEL-BASED SCALE AND DUAL-CHANNEL OPERATION
. SUPPORTS OUT RESOLUTION UP TO 2048 X 1152 X 60HZ
. SUPPORTS KEYBOARD OPERATION
. SUPPORTS SERIAL AND TCP/IP REMOTE CONTROL

FUNCTION
. SOURCE SWITCH TOW SIGNAL GROUPS WITH ALPHA KEY OPERATION
. PIP FOR SD WITH HD AND HD WITH HD
. POP FOR SD WITH HD, HD WITH HD, VIDEO WITH PC
. TEST PATTERN GENERATOR, SCHEDULE, HARDWARE TIMING, TEXT OVERLAY
AND LOGO INSERT.
. ALPHA KEY SUPPORT

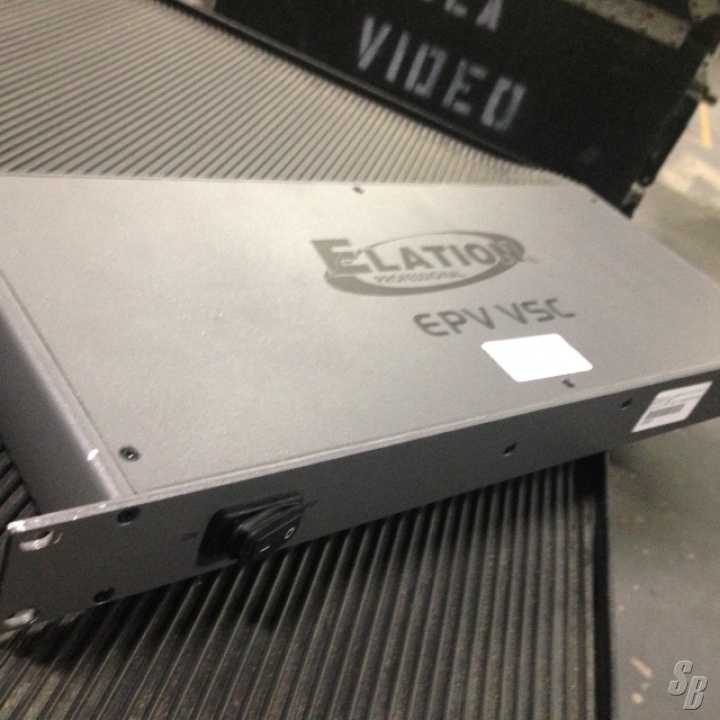

THE EPV VSC IS A 19” RACK MOUNT, FULL-COLOR, SYNCHRONOUS VIDEO CONTROLLER FOR ALL EPV SERIES VIDEO SCREENS. CONTROL IS VIA STANDARD WINDOWS PC WITH DVI OUTPUT CONNECTION. IT INCLUDES TWO RJ45 SIGNAL OUTPUT PORTS ON THE REAR, WHICH ALLOWS CONNECTION FOR UP TO TWO LED VIDEO DISPLAYS. USING A STANDARD CAT6E ETHERNET CABLE, THE EPV VSC TRANSMITS 1920 X 1080 PIXEL RESOLUTION WITHIN A MAX DISTANCE OF 100M. THE VSC SOFTWARE INCLUDES A MANAGEMENT SOFTWARE, WHICH ALLOWS FOR ALL CONFIGURATION, SIZING, MAPPING AND COLOR CALIBRATION OF EPV PANELS.

COMPOSITION: POWDER COATED STEEL
DIMENSIONS: 19.2”X7.25”X1.8”
WEIGHT: 10LBS / 4.5KG
DOT CORRECTION: COLORBRATE SYSTEM
MAX RESOLUTION: 1920 X 1080 PIXELS
GREY LEVEL: 0-665336 LEVELS
HIGH FREQUENCY REFRESH RATE: = 4000HZ
MOUNTING: FREE STANDING ON RUBBER FEET OR 19” RACKMOUNT
FRONT PANEL CONTROLS: N/A
REAR PANEL CONNECTIONS: AC INPUT, LAN OUTPUT, USB AND DVI INPUT
COMMAND COMMUNICATION: USB
SIGNAL INPUT: DVI
SIGNAL OUTPUT: LAN, CAT5

WWW.SOUNDBROKER.COM CELEBRATING OUR 20TH ANNIVERSARY LINKING BUYERS AND SELLERS TOGETHER SINCE 1997 FOR NEW AND USED PROFESSIONAL AUDIO, LIGHTING, STAGING, PROJECTORS, AND VIDEO EQUIPMENT.

Additional Details
ID#: 83067
Listing Type:
Standard
Model: EPV-762MH
Manufacturer: ELATION
Condition: SUPERB (8-9)
Shipping Info: 0.00 lbs.,
Seller's Location: LA, USA
Updated: June 06, 2019
M.S.R.P.: $0.00
Asking Price: SOLD
