SOUNDCRAFT K3 THEATER (40CH.) (YOM: ?) (S#: RW5208000499) GOOD (7-8)

Listing last update on August 25, 2012 - Viewed 120 times

SOUNDCRAFT K3 THEATER (40CH.) (YOM: ?) (S#: RW5208000499) GOOD

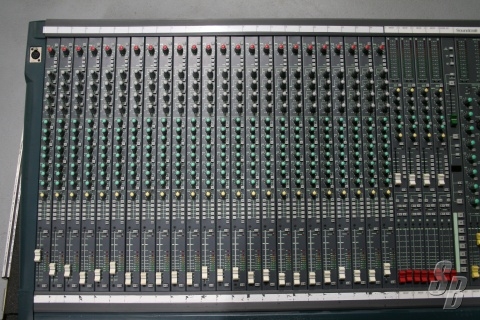

FEATURES: 40 MONO INPUT MODULES, EACH FEATURING:
XLR MIC, 1/4" LINE (HI-Z), 1/4" DIRECT O/P (PRE EQ),
1/4" INSERT SEND, 1/4" INSERT RETURN
SWITCHED +48V PHANTOM, PHASE REVERSE
100HZ HI-PASS FILTER
EQ - 4 SWEPT BANDS - SWITCHABLE BYPASS
8 AUX SENDS, SWITCHED IN PAIRS PRE/POST FADE.
INDIVIDUALLY SWITCHED SENDS TO GROUPS, MIX AND MONO
8 LED METER, MUTE AND SOLO BUTTON
100MM FADER

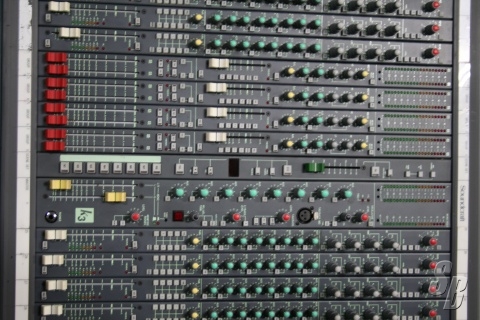

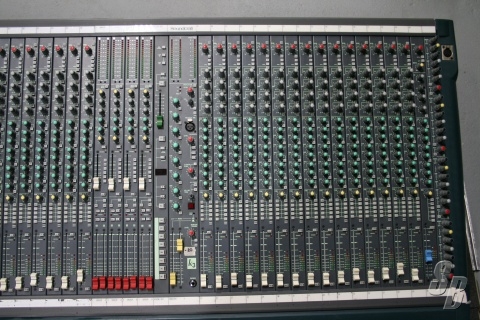

OUTPUT & MASTER MODULES COMPRISING:
L AND R OUTPUTS ON XLRM. MONO OUTPUT ON XLRM
1/4" INSERT SEND, 1/4" INSERT RETURN ACROSS EACH.
TALKBACK INPUT ON XLRF.
TALKBACK SWITCHABLE TO GROUPS, AUX, AND TO XLRM OUTPUT
OSCILLATOR, CONTROL ROOM, RECORD OUTPUTS ON XLRM
MASTER AUX OUTPUTS ON 1/4" JACK.

GROUPS:
EACH GROUP MODULE ALSO HAS A STEREO EFFECTS RETURN, ADDING FOUR EXTRA STEREO LINE INPUTS WITH FULL ROUTING AND ACCESS TO AUX 1&2.
THE INPUTS ARE 1/4" STEREO JACK.
GROUP OUTPUTS ARE XLRM, PLUS 1/4" SEND AND RETURN.
OUTPUT IS CONTROLLED BY 100MM FADER.

MIDI:
THE MIDI/SCENE SET MODULE ALLOWS THE K3 TO STORE 128 SCENES, WHICH ARE RECALLED EITHER BY PRESSING ONE OF THE EIGHT MUTE BUTTONS, OR BY SELECTING A SCENE USING THE 3-CHARACTER LED. THE MODULE WILL ALSO OUTPUT PROGRAMMED MIDI VALUES WHEN A SCENE IS RECALLED, WHICH IS USEFUL FOR CHANGING EFFECTS UNITS.

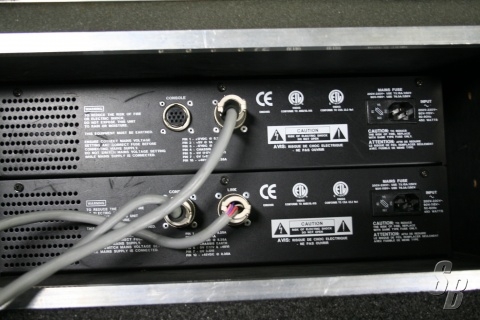

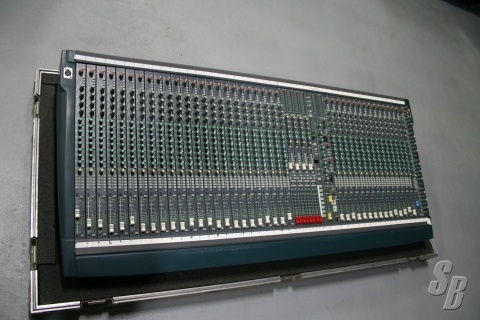

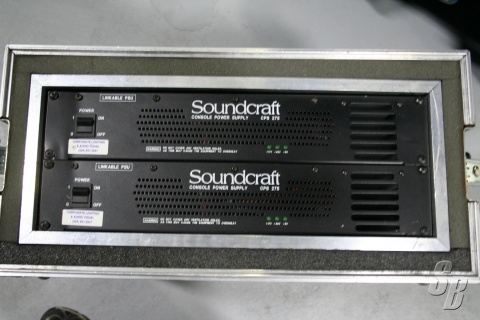

EXTRAS: CONSOLE COMES ROAD CASE W/ CASTERS, 2 LAMPS, AND TWO POWER SUPPLIES. POWER SUPPLIES ALSO COME IN ROAD CASE. MAY HAVE 1 OR 2 EXTRA MODULES.

MODIFICATIONS: NONE

HISTORY: USED IN SMALL CONVENTIONAL SETTINGS, LOCAL, & NATIONAL SHOWS.

COMMENTS: NO ADDITIONAL COMMENTS.

THIS UNIT WAS NEVER TOURED
