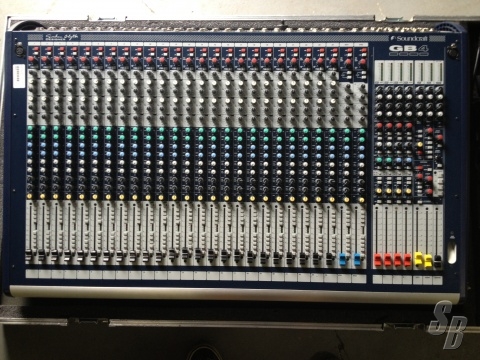

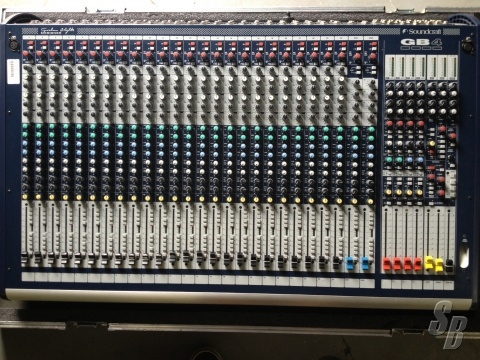

SOUNDCRAFT GB4 24CH
[PRICE SHOWN FOR THE ENTIRE CONTENT OF THIS LISTING]
Listing last update on August 29, 2013 - Viewed 126 times

SOUNDCRAFT GB4 24CH (YOM: ?) (S#: TBD) SUPERB (8-9)

FEATURES: THE SOUNDCRAFT GB4 MIXER SETS A NEW STANDARD IN AFFORDABLE HIGH-END MIXING. THIS 24-CHANNEL MIXER IS LADEN WITH CAPABILITIES AND QUALITY FEATURES: GB30 MIC PREAMPS, REENGINEERED CIRCUIT TOPOLOGY AND EQ DESIGNS, RIGID STEEL CHASSIS, HIGH-QUALITY VERTICALLY MOUNTED FIBERGLASS PCB CHANNEL STRIPS, INDIVIDUALLY NUTTED POTENTIOMETERS, ANGLED REAR PANEL THAT ALLOWS PATCHING FROM THE FRONT, AND MORE--ABOVE ALL, THE QUALITY, ENGINEERING, AND DESIGN FOR WHICH SOUNDCRAFT IS FAMOUS.

THE GB4-24 IS 24-CHANNEL, 4-BUS MIXING CONSOLE DESIGNED AND CONSTRUCTED TO ENSURE RUGGED RELIABILITY UNDER STRESSFUL TOUR CONDITIONS. ALL INPUT MODULES HAVE INDIVIDUAL VERTICALLY-MOUNTED PCB'S FITTED TO THE STEEL CHASSIS.

THIS SOUNDCRAFT MIXER IS DESIGNED FOR PERFORMANCE VENUE INSTALLATION OR SMALL TOURING SYSTEM APPLICATIONS. THE DUAL-MODE TOPOLOGY ALLOWS IT TO TO BE USED FOR FOH OR MONITOR DUTIES, WITH FADER CONTROL OF GROUP OR AUX OUTPUTS.

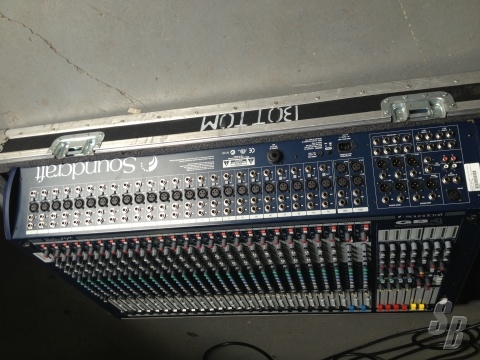

ALTHOUGH LARGELY CONVENTIONAL IN LAYOUT, THE SOUNDCRAFT GB4 MIXING CONSOLE DOES HAVE SOME UNIQUE MECHANICAL FEATURES. THE RUGGED STEEL CHASSIS HAS A SLOPING REAR CONNECTOR PANEL SO THAT IT IS EASIER TO CONFIGURE FROM IN FRONT OF THE DESK, WHILE THE INTEGRAL POWER SUPPLY HAS A LINK OPTION FOR AN EXTERNAL BACKUP PSU.

4 MUTE GROUPS ALLOW SEVERAL CHANNELS TO BE MUTED SIMULTANEOUSLY. ANOTHER UNIQUE FEATURE ON THE SOUNDCRAFT GB4-24 MIXER IS THE LIMITER ON A SET OF DEDICATED RECORD OUTPUTS THAT MAKES IT EASIER TO CREATE A STEREO RECORDING OF THE MIX.

THE SOUNDCRAFT CONSOLE ALSO FEATURES AN OUTPUT MATRIX WITH 7 FEEDS TO 4 OUTPUTS, FED FROM THE GROUP BUSES AND MAIN L, R, AND C (MONO) OUTPUTS.

THE GB4 OFFERS A COMPREHENSIVE SET OF FUNCTIONS IN A SMALL AND COST-EFFECTIVE FOOTPRINT, AND DELIVERS THE HIGH PERFORMANCE AND RELIABILITY YOU EXPECT FROM A SOUNDCRAFT MIXER.
FEATURES
24-CHANNEL FRAME SIZE
GB30 MIC PREAMPS
PRECISION EQUALIZATION CIRCUITRY
DIRECT OUTPUTS ON EVERY CHANNEL
TALKBACK FACILITY
100MM FADERS
SWITCHABLE 48V PHANTOM POWERING ON EVERY CHANNEL
18DB/OCTAVE HIGH-PASS FILTER
4 MUTE GROUPS
12-SEGMENT LED METERING
RECORD OUTPUT WITH LIMITER
2 FULL-FEATURE STEREO CHANNELS
2 STEREO RETURNS
8 AUX SENDS (4 ARE PRE/POST SWITCHABLE)
4 SUB GROUPS (SWAP WITH AUXES 1-4


EXTRAS: COMES WITH ROAD CASE GOOSENECK LAMPS AND POWER CORD

MODIFICATIONS: NONE

HISTORY: USED IN CONVENTION SETTINGS

COMMENTS: PLEASE NOTE: PLATINUM MEMBERS HAVE THE OPTION TO BUY THIS DIRECTLY FROM THE SELLER FOR A MINIMUM OF $100 LESS THEN THE PRICE LISTED HERE.

FOR THE DETAILS, PLEASE CLICK ON THIS LINK: HTTP://WWW.SOUNDBROKER.COM/USERS/UPGRADE/

PLEASE NOTE WHEN GOING DIRECT YOU AGREE TO THE FOLLOWING:

1) BUYER AND SELLER BEWARE AND YOU AGREE TO HOLD SOUNDBROKER.COM HARMLESS

2) THE AGGREGATE VALUE OF THE GEAR MUST BE $2,500.00 OR LESS

3) IF EITHER PARTY WANTS SOUNDBROKER.COM TO HOLD THE MONEY, BOTH PARTIES MUST AGREE AND THERE IS A 3% FEE

4) SOUNDBROKER.COM HAS RIGHT TO OFFER A QUOTE FOR SHIPPING SERVICES (OPTIONAL)

THIS UNIT WAS NEVER TOURED
