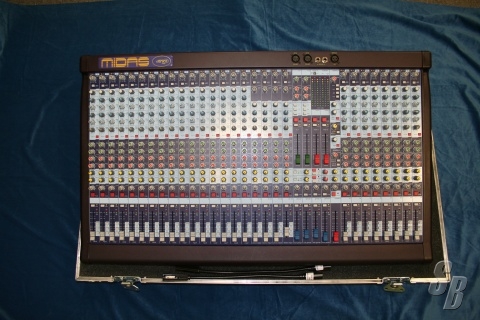

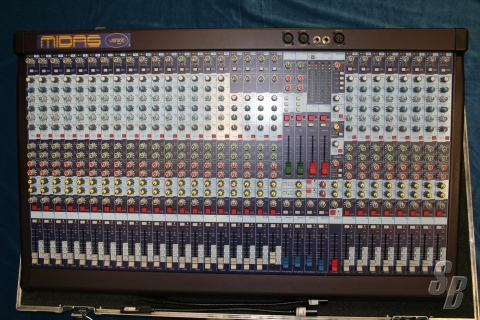

MIDAS VENICE 320 MIXING CONSOLE
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Listing last update on March 23, 2011 - Viewed 84 times

MIDAS 320 (YOM: ?) (S#: TBD) LIKE NEW (9-10)

FEATURES: 320
VENICE IS MIDAS’ FIRST TRULY COMPACT CONSOLE, BUILT IN DIRECT RESPONSE TO CUSTOMER DEMAND. IT DOES EXACTLY WHAT WAS ASKED, IN THAT IT PROVIDES A HIGH QUALITY ALTERNATIVE IN A HUGE NUMBER OF APPLICATIONS WHERE PREVIOUSLY MIDAS WAS NOT AN OPTION. THESE RANGE FROM SMALLER CONFERENCE OR LIVE BAND APPLICATIONS, TO EFFECTS RETURNS OR ADDITIONAL INPUTS IN A LARGE MULTI-CONSOLE APPLICATION, OR INDEED AS PART OF A SMALL COMPLETE MOBILE SYSTEM. IT ALSO PROVIDES THE PERFECT FEATURE SET FOR LIVE ACTS THAT NEED TO MIX THEIR OWN FOH AND MONITOR SOUND FROM ON STAGE AND IS COMPACT AND LIGHT ENOUGH TO FIT ON EVEN THE MOST CRAMPED PERFORMANCE AREA.
AS USUAL, MIDAS HAS PAID ATTENTION TO THE DETAILS THAT SET THEIR CONSOLES APART, TAKING CARE TO PROVIDE HIGH QUALITY MIC PREAMPS AND A STABLE, RESPONSIVE EQ SECTION, JUST AS MIDAS DO ON THE LARGER CONSOLES. THE SIMPLE BUT INTUITIVE OUTPUTS MAKE THE OVERALL CONFIGURATION OF THE CONSOLE EXTREMELY QUICK AND EASY TO USE.


FEATURES AND SPECIFICATIONS VENICE 160 VENICE 240 VENICE 320
INPUTS (TOTAL) 30 38 46
MONO-INPUTS (MIC/LINE) WITH INSERTS 8 16 24
STEREO-LINE/MONO-MIC-INPUT CHANNELS 4/4 4/4 4/4
STEREO-EFFECT-RETURNS (LINE) 4 4 4
STEREO-TAPE-RETURN (LINE) 1 LEFT/RIGHT

BUSSES 15
SUBGROUPS 4
AUX PRE-FADER (MONITOR) 2
AUX POST-FADER (EFFECTS) 2
AUX SWITCHABLE PRE/POST-FADER 2
MASTER L/R 2
MONO-PFL 1
STEREO-AFL 2

OUTPUTS
SUBGROUPS (WITH INSERTS) 4 IMPEDANCE BALANCED 1/4 INCH JACKS
AUX PRE-FADER (MONITOR) 2 XLR (BALANCED)
AUX POST-FADER (EFFECTS) 2 IMPEDANCE BALANCED 1/4 INCH JACKS
AUX SWITCHABLE PRE/POST-FADER 2 XLR (BALANCED)
MASTER (WITH INSERTS) 2 XLR (BALANCED)
MASTER B OUT
(SWITCHABLE MONO/STEREO, PRE-POST FADER) 2 XLR (BALANCED)
TAPE SEND (RECORDING) 1 STEREO (PHONO)
DIRECT OUTPUTS (1/4 INCH JACK) 8 16 24
STEREO-HEADPHONES 2 STEREO-1/4 INCH JACK
STEREO-SPEAKERS 2 IMPEDANCE BALANCED 1/4 INCH JACKS

SIZE (MM/INCH)
WIDTH 490 / 19.3“ 698 / 27.5“ 906 / 35.7“
DEPTH 568 / 22.4“ 568 / 22.4“ 568 / 22.4“
HEIGHTS 194 / 7.6“ 194 / 7.6“ 194 / 7.6“

WEIGHT (KG/LBS) 16,4 / 36.2 21,1/ 46.5 25,8 / 56.9

POWER CONSUMPTION 75W 95W 120W

MAINS VOLTAGE 110V/120V/220V/230V/240V, 50-60HZ

ADDITIONAL FEATURES
CONNECTOR FOR DESK LAMPS 2 X 12V/5W (4-PIN XLR)
19“-RACK-MOUNTING- KIT YES YES YES
ROTATABLE CONNECTOR PANEL YES YES YES
EXTERNAL POWER SUPPLY (EPS 1200, NOT INCLUDED) YES YES YES

ACCESORIES
DUST COVER (INCLUDED)
12 V DESK LAMP (NOT INCLUDED)
INPUT TRANSFORMER (NOT INCLUDED)

VENICE TECHNICAL SPECIFICATIONS
INPUT IMPEDANCE MIC 2K BALANCED
LINE 20K BALANCED

INPUT GAIN MIC CONTINUOUSLY VARIABLE FROM
0DB TO + 60DB
LINE MONO CHANNEL CONTINUOUSLY VARIABLE FROM
- 20DB TO + 40DB
LINE STEREO CHANNEL CONTINUOUSLY VARIABLE FROM
- 20DB TO + 20DB
LINE LEVEL INPUTS 0DB

MAXIMUM INPUT LEVEL MIC + 22DBU
LINE LEVEL INPUTS + 22DBU
LINE MONO CHANNEL + 42DBU
LINE STEREO CHANNEL + 28DBU

CMR AT 100HZ MIC (GAIN + 40DB) TYP. 75DB
CMR AT 1KHZ MIC (GAIN + 40DB) > 85DB
LINE > 45DB

FREQUENCY RESPONSE (20 TO 20KHZ)
(GAIN + 60DB) MIC TO MIX + 0DB TO - 1DB

NOISE (20 TO 20KHZ)
(GAIN + 60DB) MIC EIN REF. 150OHMS - 129DBU

SYSTEM NOISE (20 TO 20KHZ)
SUMMING NOISE
(16 CHANNELS ROUTED WITH FADERS DOWN) - 90DBU

LINE TO MIX NOISE
(16 CHANNELS ROUTED AT 0DB, PAN CENTRE) - 86DBU

DISTORTION AT 1KHZ MIC TO INSERT (+ 30DB GAIN, + 20DBU OUTPUT) TYP 0.0007%

MIC TO MIX (+30DB GAIN, + 20DBU OUTPUT) < 0.009%

CROSSTALK AT 1KHZ CHANNEL TO CHANNEL < - 80DB
MIX TO MIX < - 80DB
CHANNEL TO MIX < - 80dB
Fader Attenuation > 100DB
SWITCH REJECTION > 100DB

OUTPUT IMPEDANCE ALL LINE OUTPUTS 75 OHMS BALANCED SOURCE
HEADPHONES TO DRIVE 32OHMS

MAXIMUM OUTPUT LEVEL MASTER OUTPUTS ON XLR + 25DBU
ALL OTHER OUTPUTS ON XLR + 22DBU
ALL OUTPUTS ON 1/4 INCH JACKS + 22DBU
HEADPHONES + 22DBU/600OHMS

NOMINAL SIGNAL LEVEL MIC - 60DBU TO 0 DBU
LINE 0DBU

EQUALISER MONO CHANNEL HI PASS SLOPE 12DB / OCT
HI PASS FREQUENCY 80HZ

TREBLE GAIN CONTINUOUSLY VARIABLE
+ 15 DB TO - 15 DB
CENTRE DETENT = 0DB

TREBLE FREQUENCY 12K

HI MID GAIN CONTINUOUSLY VARIABLE
+ 15 DB TO - 15 DB
CENTRE DETENT = 0DB

HI MID FREQUENCY CONTINUOUSLY VARIABLE
CENTRE FROM 400HZ TO 8K
HI MID BANDWIDTH 1 OCT. (Q = 1.4)

LO MID GAIN CONTINUOUSLY VARIABLE
+ 15 DB TO - 15 DB
CENTRE DETENT = 0DB

LO MID FREQUENCY CONTINUOUSLY VARIABLE
CENTRE FROM 100HZ TO 2K

LO MID BANDWITH 1 OCT. (Q = 1.4)

BASS GAIN CONTINUOUSLY VARIABLE
+ 15 DB TO - 15 DB
CENTRE DETENT = 0DB

BASS SHELVING FREQUENCY 80HZ

EQUALISER STEREO CHANNEL HI PASS SLOPE 12DB / OCT
HI PASS FREQUENCY 80HZ

TREBLE GAIN CONTINUOUSLY VARIABLE
+ 15 DB TO - 15 DB
CENTRE DETENT = 0DB

TREBLE FREQUENCY 12K

HI MID GAIN CONTINUOUSLY VARIABLE
+ 15 DB TO - 15 DB
CENTRE DETENT = 0DB

HI MID FREQUENCY 3K

HI MID BANDWIDTH 1.4 OCT. (Q = 1)

LO MID GAIN CONTINUOUSLY VARIABLE
+ 15 DB TO - 15 DB
CENTRE DETENT = 0DB

LO MID FREQUENCY 300HZ

LO MID BANDWIDTH 1.4 OCT. (Q = 1)

BASS GAIN CONTINUOUSLY VARIABLE
+ 15 DB TO - 15 DB
CENTRE DETENT = 0DB

BASS SHELVING FREQUENCY 80HZ





EXTRAS: MANUAL COMES IN .PDF FORMAT

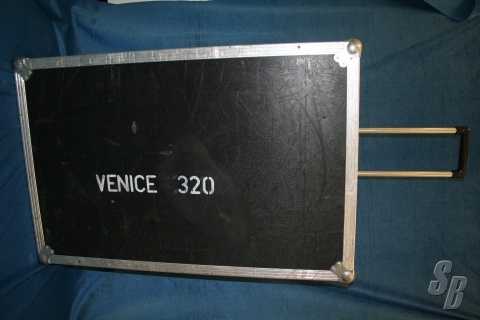

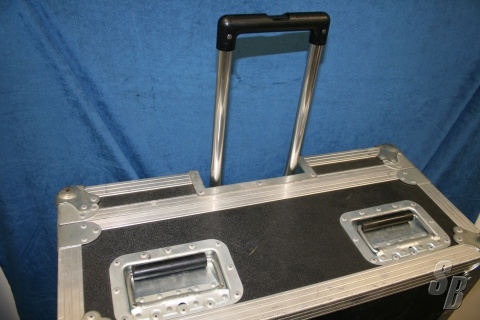

HEAVY DUTY ROAD CASE, SLIP COVER, AND LED LAMP INCLUDED!!!

MODIFICATIONS: NONE

HISTORY: USED IN CONVENTION SETTINGS

COMMENTS: NONE

THIS UNIT WAS NEVER TOURED
