ID # 93701    CURRENT CATEGORY - CONSOLE

For Sale: APB-DYNASONICS PRORACK-HOUSE
[PRICED PER UNIT - 0 AVAILABLE AT TIME OF LISTING]
Listing last update on August 07, 2019 - Viewed 936 times

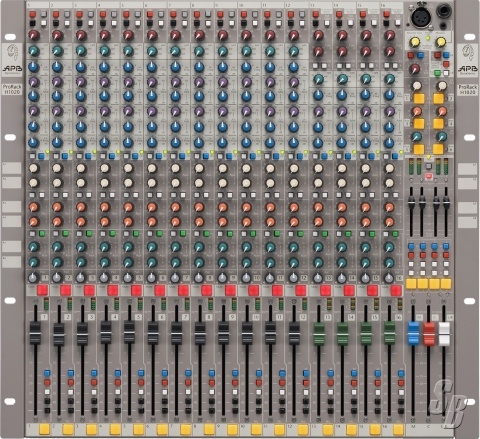

APB-DYNASONICS PRORACK-HOUSE

*** APB-DYNASONICS IS NOT ABLE TO CURRENTLY BUILD THIS ITEM - SOUNDBROKER IS NOT ABLE TO ACCEPT ORDERS AT THIS TIME ***

PRORACK-HOUSE (20MIC/LINE IN X 4 SUB-GROUP)

20 MICROPHONE PRE-AMPLIFIERS IN TOTAL. 12 MONO MIC/LINE INPUT CHANNELS AND 4 DUAL-MONO/STEREO MIC/LINE INPUT CHANNELS, ALL WITH SPECTRA-QUALITY MICROPHONE PREAMPLIFIERS IN A 10U (17.5" IN X 19") PACKAGE.

  • MINIMUM PHASE SHIFT CIRCUITRY AND INTERNAL MOTHER BOARD/DAUGHTER BOARD CONSTRUCTION DERIVED FROM THE SPECTRA CONSOLE DESIGN.
  • 48 VOLT PHANTOM POWER SWITCH, POLARITY REVERSE SWITCH, MIC/LINE SWITCH, MIC PAD SWITCH ON INPUT CHANNELS. (COMBO MIC/LINE/PAD SWITCH ON STEREO INPUT CHANNELS).
  • VARIABLE FREQUENCY HIGH-PASS FILTERS ON ALL MONO AND STEREO INPUT CHANNELS WITH A 20HZ TO 400HZ SWEEP RANGE AT 12DB PER OCTAVE.
  • MONO INPUT CHANNELS FEATURE FIXED HIGH AND LOW FREQUENCY EQ BANDS AND TWO MID-SWEEP EQ BANDS, WITH EQ ON SWITCH WITH LED. THE STEREO CHANNELS FEATURE FIXED HIGH AND LOW FREQUENCY EQ BANDS AND A SINGLE MID-SWEEP EQ BASED ON SPECTRA CIRCUITRY.
  • SIX AUX SENDS; EACH PAIR OF SENDS SWITCHABLE BETWEEN A PRE OR POST FADER SOURCE. IN THE PRE-FADER POSITION, AN ADDITIONAL FRONT PANEL SWITCH DETERMINES IF THAT PRE-FADER SIGNAL IS DERIVED PRE OR POST EQ. AUX CONTROLS 5 AND 6 MAY BE SWITCHED TO BECOME A STEREO PAIR.
  • ALL CHANNELS CAN ASSIGN TO LEFT-RIGHT, CENTER AND MONO MIX BUS ASSIGNMENT ALONG WITH ADDITIONAL ASSIGNMENT SWITCHES TO SUBGROUPS 1-2 AND 3-4. THESE OUTPUTS (INCLUDING AUX OUTPUTS) EACH HAVE BALANCED XLR OUTPUTS, TRS BUS INPUTS AND TRS INSERT CONNECTORS.
  • LEFT-RIGHT, CENTER AND MONO MIX OUTPUT LEVEL CAN BE SWITCHED FROM LINE LEVEL TO MIC LEVEL.
  • INTERNALLY ILLUMINATED MUTE AND PFL/AFL SWITCHES ALONG WITH 6-SEGMENT LED CHANNEL METERING AND 100MM FADERS ON ALL INPUT CHANNELS.
  • FOUR LED METERS CAN MONITOR THE LEFT, RIGHT, CENTER AND MONO OUTPUTS OR THE GROUP 1-4 OUTPUTS. METERS AUTO-SWITCH TO SHOW SOLO LEVELS.
  • BUS LEVEL SIGNAL MONITORING USING BI-COLOR LED'S ON ALL 14 MIX BUSES: LEFT, RIGHT, CENTER, AND MONO, GROUPS 1-4, AND AUX 1-6.
  • 100-240 VAC, 50/60HZ POWER SUPPLY - FIELD REPLACEABLE (PLUG IN) WITHOUT DISASSEMBLY OF MIXER.
  • REAR PANEL ROTATES AND MAY BE LOCKED IN ANY OF THREE PRESET ANGLES (REFERENCED TO THE FRONT PANEL) - 90 DEGREES, 135 DEGREES, OR 180 DEGREES.
  • ADJUSTABLE LAMP DIMMER PROVIDED FOR THE 4-PIN XLR CONNECTOR FOR USE WITH (OPTIONAL) GOOSENECK LAMP.

CLICK HERE FOR MFG SPECS, DETAILS, PICTURES

NEW WITH FACTORY WARRANTY

WWW.SOUNDBROKER.COM LINKING BUYERS AND SELLERS TOGETHER SINCE 1997 FOR NEW AND USED PROFESSIONAL AUDIO, LIGHTING, STAGING, PROJECTORS, AND VIDEO EQUIPMENT.

Additional Details
ID#: 93701
Listing Type:
Standard
Model: PRORACK HOUSE
Manufacturer: APB DYNASONICS
Condition: MFG A STOCK
Shipping Info: 0.00 lbs.,
Seller's Location: CA, USA
Updated: August 07, 2019
M.S.R.P.: $0.00
Offered at: Contact Us
