SOUNDCRAFT - VI6 STANDARD DIGITAL LIVE CONSOLE
[PRICED PER UNIT - NEW FROM MANUFACTURER - CALL FOR AVAILABILITY]
Listing last update on March 09, 2015 - Viewed 39 times

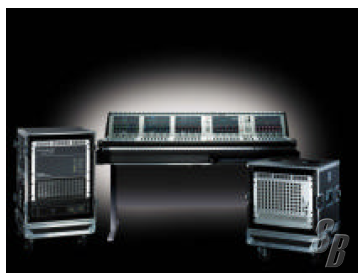

SOUNDCRAFT VI6 STANDARD - VI SYSTEMS INCLUDES CONTROL SURFACE, LOCAL RACK, AND STAGEBOX. DOES NOT INCLUDE ROADCASES OR CAT5 CABLE
PART NUMBER VI6 96.2-CAT5

MAX NUMBER OF SIMULTANEOUS MIXING CHANNELS
96 MONO INPUTS INTO 35 OUTPUTS. PAIRS OF MONO INPUTS CAN BE LINKED TO CREATE STEREO CHANNELS.
INSERT POINTS
24 INSERT SEND/RETURN PAIRS CAN BE CONFIGURED (USING AVAILABLE I/O) AND ASSIGNED TO ANY OF THE 96 INPUTS OR 35 OUTPUT CHANNELS.
DIRECT OUTPUTS
ALL 96 INPUT CHANNELS CAN HAVE DIRECT OUTPUTS IN ADDITION TO THEIR INTERNAL BUS ROUTING, ASSUMING SUFFICIENT I/O IS AVAILABLE (EG OPTICAL MADI CARD).
BUSSES
32 GRP/AUX/MATRIX, PLUS MAIN LCR MIX AND LR SOLO BUSSES (MAXIMUM OF 16 MATRIX OUTPUTS CAN BE CONFIGURED).

CONNECTIVITY
CONNECTION FROM LOCAL RACK TO STAGEBOX: STANDARD FIT: CAT5 OR CAT7 CABLE, WITH AMPHENOL RJF CONNECTORS. OPTIONAL: FIBRE OPTICAL INTERFACE CARD (ADDITIONAL COST).
MAX DISTANCE, LOCAL RACK TO STAGEBOX: 100M USING SOUNDCRAFT-APPROVED FLEXIBLE REEL-MOUNTED CAT5 CABLE, 130M USING CAT7 PERMANENT INSTALLATION CABLE.
GPIO FACILITY: THERE ARE 16 GPIO CONTACT CLOSURE INPUTS AND OUTPUTS ON THE LOCAL RACK, AND 8 INPUTS AND OUTPUTS ON THE STAGEBOX.
MIDI: THERE IS 1 MIDI IN AND 2 MIDI OUTS ON THE REAR OF THE CONTROL SURFACE.

BRAND NEW FROM MANUFACTURER WITH FULL FACTORY WARRANTY, FOB CA.
