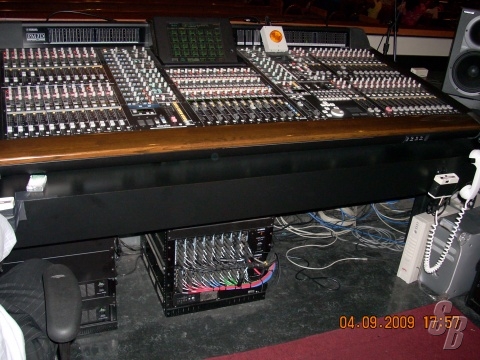

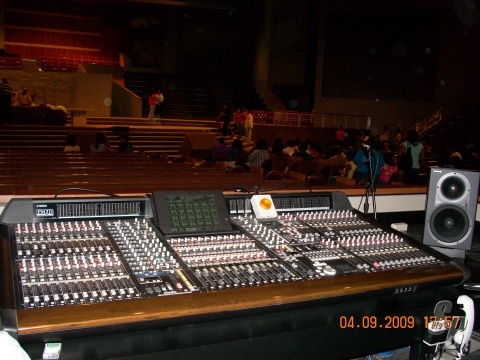

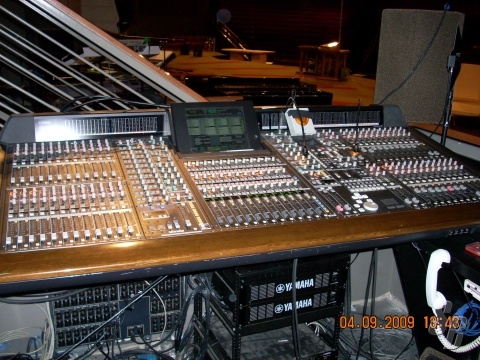

GREAT PM1D DIGITAL CONSOLE
[PRICED PER UNIT - 3 AVAILABLE AT TIME OF LISTING]
Listing last update on November 11, 2011 - Viewed 121 times

YAMAHA PM1DS (YOM: 1999) (S#: TBD) SUPERB (8-9)

FEATURES: YAMAHA PM1D DIGITAL AUDIO MIXING SYSTEM WITH VERSION 2 UPGRADE. IT FEATURES OVER 96 CHANNELS OF INPUTS. 48 MIX, 24 MATRIXES, 12 DCA, 8 STEREO EFFECTS, AND COMPS, GATES ON EACH CHANNEL.

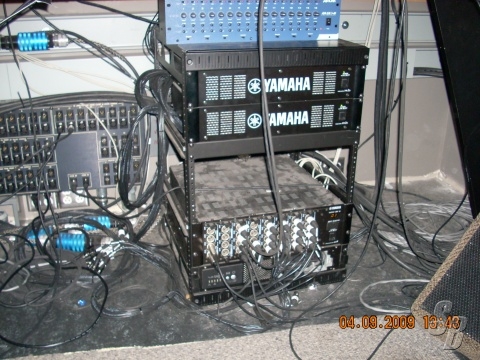

HAS REDUNDANT POWER SUPPLIES

EXTRAS: NONE

MODIFICATIONS: OUTPUTS ARE LOCAL AND HAS DI/O8 BOX

HISTORY: PERMANENT INSTALL IN HOUSE OF WORSHIP

COMMENTS:

WE CURRENTLY HAVE 3 CORE SYSTEMS WITH CONTROL SURFACES, MIX ENGINES AND TWO POWER SUPPLIES PER CONTROL SURFACE (6 IN ALL).
WE HAVE 11 ANALOG INPUT FRAMES, FULLY POPULATED WITH 8 4-INPUT CARDS EACH ... A TOTAL OF 32 INPUTS PER FRAME.
WE HAVE 5 ANALOG OUTPUT FRAMES, FULLY POPULATED WITH 8 4-OUTPUT CARDS EACH ... A TOTAL OF 32 OUTPUTS PER FRAME.
AND WE HAVE 2 DIGITAL AUDIO I/O FRAMES. ONE OF THE FRAMES HAS NO CARDS INSTALLED. THE OTHER ONE HAS TWO ANALOG INPUT CARDS (8 INPUTS TOTAL), 2 ANALOG OUTPUT CARDS (8 OUTPUTS TOTAL), AND 3 AES/EBU DIGITAL AUDIO CARDS (24 CHANNELS TOTAL).

SO THAT'S A TOTAL OF 360 ANALOG INPUTS BY 168 ANALOG OUTPUTS, PLUS 24 DIGITAL AUDIO I/O'S (!).

SO, IF WE DIVIDED THESE RICHES ROUGHLY EVENLY WE COULD END UP WITH THREE SYSTEMS, TWO WITH 4 INPUT AND 2 OUTPUT FRAMES (128X64) AND ONE WITH 3 INPUT AND 1 OUTPUT FRAMES (96X32). WE COULD MOVE THE CARDS AROUND IN THE TWO DIGITAL I/O FRAMES SO THAT EACH HAD 1 ANALOG INPUT CARD AND 1 ANALOG OUTPUT CARD AND ONE AES/EBU CARD ... 4X4X8. THE EXTRA AES/EBU CARD COULD BE SOLD SEPARATELY OR INCLUDED IN ONE OF THE TWO DIGITAL AUDIO FRAMES SO IT WOULD HAVE TWICE THE NUMBER OF DIGITAL AUDIO CHANNELS, 4X4X16.

WE COULD ALSO BUNDLE THE WHOLE THING TOGETHER INTO ONE MASSIVE SYSTEM OR "PART IT OUT" AND SELL EACH INDIVIDUAL COMPONENT SEPARATELY.

THE CONSOLES DO NOT HAVE CASES BUT THE RACKS ARE IN 44 SPACE SHOCK MOUNT RACKS.


NO ISSUES, CONSISTENT WEEKLY USAGE IN WORSHIP SERVICES.

THIS UNIT WAS NEVER TOURED

48 SPACE SHOCK MOUNT CASES ROAD READY AVAILABLE AND NEGOTIABLE.
