ID # 82105    CURRENT CATEGORY - CONSOLE/DIGITAL

PROFILE AVID VENUE | STAGE 64 RACK (48 X 8) W/ 3 YEAR AVID ADVANTAGE ELITE LIVE SUPPORT
[PRICED PER UNIT - NEW FROM MANUFACTURER - CALL FOR AVAILABILITY]
Listing last update on June 01, 2018 - Viewed 591 times

PROFILE AVID VENUE | STAGE 64 RACK (48 X 8) W/ 3 YEAR AVID ADVANTAGE ELITE LIVE SUPPORT
[PRICED PER UNIT - NEW FROM MANUFACTURER - CALL FOR AVAILABILITY]

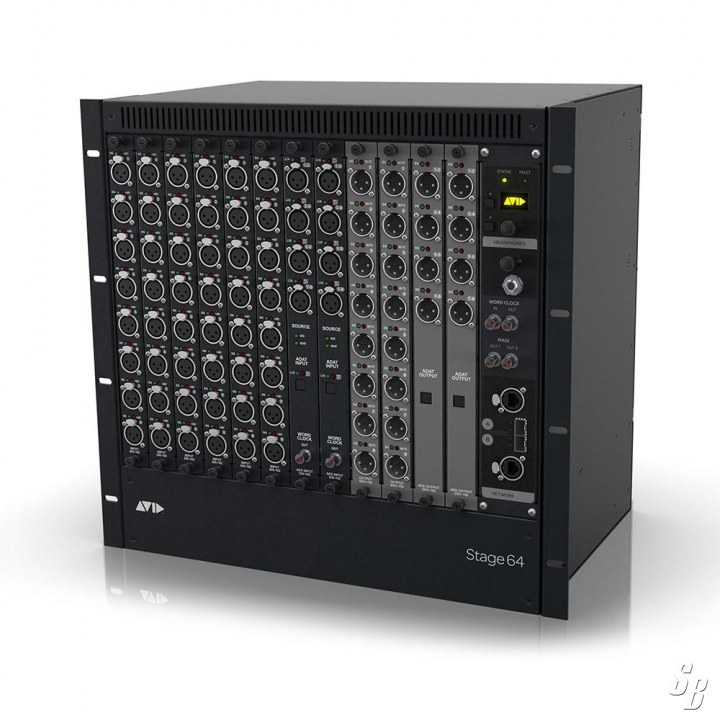

AVID VENUE | STAGE 64 RACK (48 X 8)

DESCRIPTION:
STAGE RACK SERVES AS THE REMOTE I/O COMPONENT OF THE D-SHOW AND PROFILE LIVE SOUND SYSTEMS FOR STAGE CONNECTIONS. WORKING IN CONJUNCTION WITH THE FOH RACK, STAGE RACK CAN BE EXPANDED TO HOUSE A VARIETY OF ANALOG AND DIGITAL INPUTS AND OUTPUTS FOR MIC AND LINE-LEVEL CONNECTIONS, WHICH ARE DELIVERED VIA A 75 OHM BNC DIGITAL SNAKE CONNECTION TO THE DSP MIX ENGINE CARDS HOUSED IN THE FOH RACK. UP TO TWO STAGE RACKS CAN BE USED SIMULTANEOUSLY WITH A D-SHOW OR PROFILE SYSTEM TO HANDLE LARGE-SCALE STAGE PRODUCTIONS TO 96 TOTAL MIC/LINE INPUTS AND OUTPUTS.

KEY FEATURES:

  • DURABLE 10-SPACE STEEL RACK HOUSES A MAXIMUM OF 48 INPUTS AND 48 OUTPUTS
  • BASE CONFIGURATION COMES STANDARD WITH 48 ANALOG XLR MIC/LINE INPUTS (MAXIMUM CAPACITY) AND 8 ANALOG XLR LINE OUTPUTS (EXPANDABLE TO 48 WITH OPTIONAL OUTPUT CARDS)
  • UP TO TWO STAGE RACKS CAN BE CONNECTED TO AN FOH RACK FOR A TOTAL I/O COUNT OF 96 MIC/LINE INPUTS AND OUTPUTS
  • HIGH-QUALITY REMOTE CONNECTION FROM THE STAGE RACK TO AN FOH RACK VIA DUAL REDUNDANT 75 OHM BNC DIGITAL SNAKES (NOT INCLUDED) DELIVERS MAXIMUM AUDIO FIDELITY
  • SUPPORTS OPTIONAL ANALOG, DIGITAL, AND A-NET OUTPUT CARDS, WHICH OFFER ADDITIONAL 8-CHANNEL OUTPUT EXPANSION (UP TO 48 TOTAL OUTPUTS)
  • CUSTOMIZE THE I/O WITH ANY NUMBER AND COMBINATION OF ANALOG AND/OR DIGITAL INPUTS, ANALOG AND/OR DIGITAL OUTPUTS, AND A-NET OUTPUTS TO 48 TOTAL INPUTS AND OUTPUTS IN A SINGLE RACK
  • COMES STANDARD WITH DUAL REDUNDANT, FIELD-REPLACEABLE POWER SUPPLIES

NOTE: INCLUDES ONE YEAR AVID ADVANTAGE EXPERT PLUS WITH HARDWARE COVERAGE (A $700 USD VALUE)

PART# 9935-65975-00

WWW.SOUNDBROKER.COM LINKING BUYERS AND SELLERS TOGETHER SINCE 1997 FOR NEW AND USED PROFESSIONAL AUDIO, LIGHTING, STAGING, PROJECTORS, AND VIDEO EQUIPMENT.

KEY WORDS: AVID VENUE STAGE 64 RACKS CARDS INPUT OUTPUT

SoundBroker.com Says: If you would like a free copy of the "Avid S6L Handbook", click Inquire About Listing and include the word "Handbook" and we will send you one.

Additional Details
ID#: 82105
Listing Type:
Standard
Model: STAGE 64 RACK 48X8
Manufacturer: AVID
Condition: MFG A STOCK
Shipping Info: 0.00 lbs.,
Seller's Location: MA, USA
Updated: June 01, 2018
M.S.R.P.: $0.00
Asking Price: SOLD
