DP569 MULTICHANNEL DOLBY DIGITAL ENCODER
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Listing last update on December 12, 2009 - Viewed 109 times

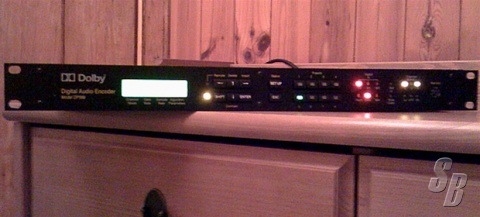

DOLBY DP569 (YOM: 1999) (S#: 500473) LIKE NEW (9-10)

FEATURES: E DOLBY DP569 IS THE REFERENCE DOLBY DIGITAL MULTICHANNEL AUDIO ENCODER FOR DIGITAL TELEVISION AND DVD AUTHORING APPLICATIONS.

THE DP569 IS DESIGNED FOR DIGITAL TELEVISION AND DISC-AUTHORING APPLICATIONS, INCLUDING AUTOMATED BROADCAST INSTALLATIONS AND MASTERING FOR DVD AND OTHER RECORDED MEDIA. SUPPORTING ENCODED BIT RANGES FROM 56 TO 640 (KBPS) AND CHANNEL CONFIGURATIONS FROM MONO TO 5.1-CHANNEL SURROUND SOUND, THE DP569 IS OUR REFERENCE ENCODER FOR DOLBY DIGITAL MULTICHANNEL AUDIO. FEATURES FOR BROADCAST AND DVD AUTHORING.

EXTRAS: DP569 DOLBY DIGITAL MULTICHANNEL AUDIO ENCODER USER'S MANUAL

DP569 MULTICHANNEL DOLBY DIGITAL ENCODER QUICK START GUIDE

MODIFICATIONS: AUDIO CODING ALGORITHMS: DOLBY DIGITAL (AC-3 AS PER ATSC A/52A SPECIFICATION).

AUDIO SAMPLING RATES: 32, 44.1, OR 48 KHZ; USER-SELECTABLE SAMPLE-RATE CONVERSION FOR INDEPENDENT INPUT AND ENCODED SAMPLING RATES.

FREQUENCY RESPONSE: LOWER LIMIT: 20 HZ; UPPER LIMIT VARIES WITH DATA RATE, SAMPLE RATE, AND CHANNEL MODE; ±0.25 DB.

DISTORTION: 0.01% AT 1 KHZ; 0.02%, 20 HZ ALGORITHM UPPER LIMIT.

DYNAMIC RANGE: 110 DB

CODING DELAY: VARIES DEPENDING ON OPERATING MODE; MINIMUM 187 MS TO MAXIMUM 450 MS. USER-SPECIFIED OR AUTOMATIC FROM EXTERNAL TTL PULSE (EXTERNAL DELAY INPUT).

TEST TONE GENERATOR: 1 KHZ (NOMINAL) TONE AT 18 DB, 20 DB, OR Μ DB (DIGITAL SILENCE) REFERENCED TO DIGITAL FULL-SCALE.

POWER REQUIREMENTS: 90–264 VAC, 50–60 HZ, AUTO SENSING, 15 W MAXIMUM; THIS UNIT IS DESIGNED TO OPERATE FROM A CENTRALLY SWITCHED POWER SOURCE.

DIMENSIONS AND WEIGHT: 1-U RACKMOUNT: 44 × 483 × 305 MM (1.75 × 19 × 12 INCHES), NET: 3.9 KG (8.5 LB).

HISTORY: PROFESSIONAL AUDIO MASTERING FACILITY

COMMENTS: ALL ITEMS ARE DISPATCHED BY INTERNATIONAL COURIER SERVICE. MIX DESIGN ARE HAPPY TO PROVIDE A DETAILED NO OBLIGATION SHIPPING QUOTATION TO ANY LOCATION WORLDWIDE PRIOR TO THE COMPLETION OF YOUR ORDER. WE ARE ALSO HAPPY TO CONSIDER ANY ALTERNATIVE SHIPPING ARRANGEMENTS AT THE CLIENT’S REQUEST.

THIS UNIT WAS NEVER TOURED
