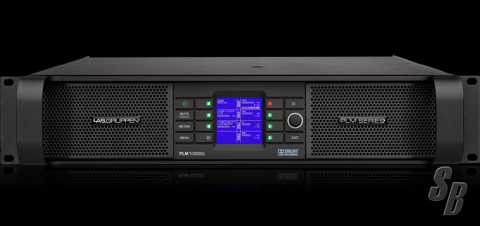

LABGRUPPEN PLM10000Q AMPLIFIER W/ DSP, 2300W/CH @ 4OHMS
[PRICED PER UNIT - 2 AVAILABLE AT TIME OF LISTING]
Listing last update on January 05, 2017 - Viewed 126 times

LAB.GRUPPEN PLM10000Q (YOM: ?) (S#: 00125380 V20/08, 00124700 V17/08) SUPERB (8-9)

FEATURES: LABGRUPPEN PLM10000Q, 2X INPUT 4X OUTPUT POWER AMPLIFIER W/ DSP, 2300W/CH @ 4OHMS.

LOCAL PICKUP OR WORLDWIDE SHIPPING (BUYER PAYS SHIPPING).
- 2350 W PER CHANNEL @ 2 OHMS**
- 2300 W PER CHANNEL @ 4 OHMS**
- 2U CHASSIS WEIGHING ONLY 13.5 KG (30 LBS)
- CLASS TD® OUTPUT STAGE
- REGULATED SWITCH MODE POWER SUPPLY (R.SMPS™)
- COPPER-FINNED INTERCOOLER® WITH TRANSVERSE-MOUNTED OUTPUT DEVICES
- FULL SUITE OF PROTECTION AND FAULT MONITORING FEATURES
- COMPREHENSIVE LOUDSPEAKER PRESET DATABASE
- LOADLIBRARY™ LOAD “FINGERPRINT” (IDENTITY AND CHARACTERISTICS) DATA
- COMPREHENSIVE LOADSMART™ LOAD VERIFICATION AND SPEAKERSAFE™ CONTINUOUS LOUDSPEAKER PERFORMANCE MONITORING
- DANTE™ LOW-LATENCY DIGITAL NETWORK INCLUDED AS STANDARD
- COMPATIBLE WITH LAKE LM 26, DOLBY® LAKE PROCESSOR AND OTHER LEGACY LAKE DEVICES
- PRIMARY AND SECONDARY NETWORK CONNECTIONS
- DIGITALLY CONTROLLED ”AMPLIFIER GAIN” ADJUSTABLE IN 0.1 DB STEPS FROM 22 TO 44 DB
- DIGITAL OUTPUT ATTENUATION IN 0.25 DB STEPS FROM -INF TO 0 DB

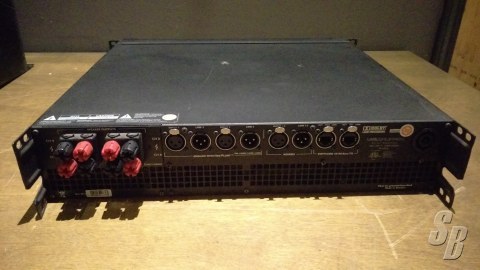

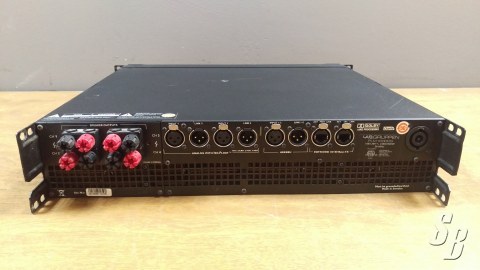

- BINDING POST OR NEUTRIK® SPEAKON® (1 X NLT8, 2 X NLT4) POWER OUTPUT CONNECTORS
- DIGITALLY IMPLEMENTED, ZERO-OVERSHOOT INTER-SAMPLE VOLTAGE PEAK LIMITING (ISVPL™) ADJUSTABLE IN 0.1 V STEPS FROM 17.8 TO 153 V
- POWER AVERAGE LIMITER (PAL)
- HIGH-BRIGHTNESS FRONT-PANEL LCD DISPLAY
- MOISTURE RESISTANT SILICONE TOUCHPAD FOR FRONT-PANEL DISPLAY MODE SELECTION AND MENU NAVIGATION
** MORE POWER AVAILABLE WHEN DRIVEN ASYMMETRICALLY.

POWER AMPLIFIER
ALTHOUGH BASED ON TECHNOLOGY IN LAB.GRUPPEN’S ROAD-PROVEN â–¸ FP+ SERIES, THE AMPLIFIER PLATFORM IN THE PLM 10000Q POWERED LOUDSPEAKER MANAGEMENT SYSTEM INCORPORATES FURTHER ENHANCEMENTS FOR EVEN GREATER SUSTAINED OUTPUT POWER. THE BASIC OUTPUT TOPOLOGY REMAINS LAB.GRUPPEN’S PATENTED CLASS TD (OFFERING CLASS D EFFICIENCY WITH THE SONIC PURITY OF CLASS B DESIGNS), BUT WITH NEW CIRCUITRY FOR â–¸ SUBSTANTIALLY GREATER CURRENT-CARRYING CAPABILITIES. THE REGULATED SWITCH MODE POWER SUPPLY (R.SMPS) IS OPTIMIZED TO DELIVER FULL POWER DURING LONG LOW-FREQUENCY BURSTS, AS WELL AS MAINTAIN STABLE RAIL VOLTAGES DESPITE FLUCTUATING LINE VOLTAGE.

LOAD VERIFICATION AND CONTINUOUS PERFORMANCE MONITORING
THE PLM 10000Q INCLUDES A REVOLUTIONARY SET OF TOOLS FOR FAST, â–¸ ACCURATE LOAD VERIFICATION AND REAL-TIME PERFORMANCE MONITORING. THE KEY TO BOTH FEATURES IS THE LOADLIBRARY, A COMPREHENSIVE DATABASE THAT â–¸ PROVIDES UNIQUE “FINGERPRINTS” (LOAD CHARACTERISTICS) FOR EACH LOUDSPEAKER MODEL IN THE SYSTEM.

LAKE PROCESSING
THE PLM 10000Q CONTAINS FOUR FULL-FEATURED LAKE PROCESSING MODULES, EACH OFFERING PRECISE SETTINGS FOR GAIN, DELAY, CROSSOVER SLOPE, EQUALIZATION, AND LIMITING. EXCLUSIVE LAKE PROCES-â–¸ SING ALGORITHMS ARE INCLUDED FOR RAISED COSINE EQUALIZATION, LINEAR PHASE CROSSOVERS, LIMITERMAX LOUDSPEAKER PROTECTION, AND ISO-FLOAT GROUND ISOLATION. RAISED COSINE EQUALIZATION IS THE FOUNDATION FOR THE LAKE MESA EQ AND THE IDEAL GRAPHIC EQ, THE TWO REVOLUTIONARY EQ INTERFACES USED BY THE DOLBY LAKE PROCESSOR. MESA EQ OFFERS ASYMMETRIC FILTERING TO MATCH THE ASYMMETRIC RESPONSES OF MANY LOUDSPEAKER SYSTEMS. THE IDEAL GRAPHIC EQ OFFERS TRUE SUM-TO-FLAT RESPONSE, SO THE ADJUSTMENTS PROVIDE UNIFORM BOOST AND CUT ALONG WITH GREATER SELECTIVITY.

LAKE CONTROLLER SOFTWARE
LAKE CONTROLLER SOFTWARE PROVIDES A UNIFIED INTERFACE FOR CONTROL AND MONITORING OF ALL FUNCTIONS OF THE POWERED LOUDSPEAKER MANAGEMENT SYSTEM. IN ADDITION TO CONTROLLING ALL â–¸ PARAMETERS OF STANDARD LAKE PROCESSING (THEREFORE APPROPRIATE FOR USE WITH DOLBY LAKE PROCESSORS), ALL NEW VERSIONS PROVIDE CONTROL AND MONITORING OF EXCLUSIVE PLM FEATURES: DIGITAL INPUT GAIN AND ATTENUATION, AND LOAD VERIFICATION AND PERFORMANCE MONITORING VIA LOADSMART AND SPEAKERSAFE. THE FLEXIBLE LAKE CONTROLLER SOFTWARE ENVIRONMENT CAN CONTROL EXTENSIVE NETWORKS OF POWERED LOUDSPEAKER MANAGEMENT SYSTEMS FROM A SINGLE COMPUTER. THE USER INTERFACE IS BASED ON DISCRETE PROCESSING MODULES, WITH EACH MODULE ASSIGNED TO POWER OUTPUTS NORMALLY DEFINED FOR SETS OF BAND-LIMITED DRIVERS (E.G. LOW, MID, HIGH, SUBS). ADJUSTMENTS CAN BE MADE IN REAL TIME TO ANY PARAMETER OF ANY MODULE ON THE NETWORK. MODULES MAY BE ASSIGNED TO GROUPS REPRESENTING SUBSYSTEMS IN LARGER SYSTEMS, SUCH AS MAIN ARRAYS, DELAYS, AND FILLS IN AN ARENA SYSTEM.

DANTE DIGITAL AUDIO NETWORK
THE PLM SERIES POWERED LOUDSPEAKER MANAGEMENT SYSTEMS ARE EQUIPPED AS STANDARD WITH DANTE, A SELF-CONFIGURING DIGITAL AUDIO NETWORKING SOLUTION FROM AUDINATE® OF AUSTRALIA. BASED ON THE NEWEST DEVELOPMENTS IN NETWORKING TECHNOLOGY, DANTE PROVIDES â–¸ RELIABLE, SAMPLE-ACCURATE AUDIO DISTRIBUTION OVER ETHERNET WITH â–¸ EXTREMELY LOW LATENCY. DANTE INCORPORATES ZEN™, AN AUTOMATIC DEVICE DISCOVERY AND SYSTEM CONFIGURATION PROTOCOL WHICH ENABLES PLM SERIES PRODUCTS AND OTHER PRODUCTS WITH DANTE (LIKE DOLBY LAKE PROCESSORS) TO FIND EACH OTHER ON THE NETWORK AND CONFIGURE THEMSELVES.

EXTRAS: 32A POWERCON TAILS INCLUDED

MODIFICATIONS: N/A

HISTORY: INSTALLED IN A VENUE FOR 5 YEARS, WAS PULLED FROM WORKING INSTALLATION. NEVER BEEN USED FOR TOURING.

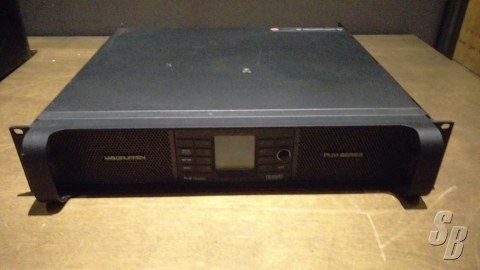

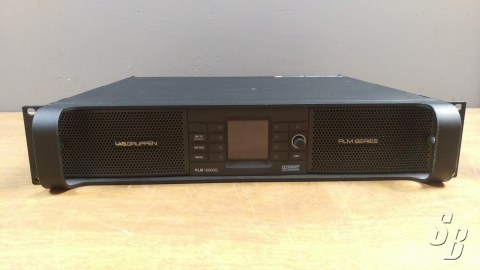

COMMENTS: VERY SLIGHT COSMETIC DAMAGE TO CHASSIS (MINOR SCRATCHES).

THIS UNIT WAS NEVER TOURED
