CREST AUDIO CKS1600-2 POWER PROCESSING AMPLIFIER
[PRICED PER UNIT - 2 AVAILABLE AT TIME OF LISTING]
Listing last update on June 15, 2012 - Viewed 102 times

CREST CKS16002 (YOM: ???) (S#: CKS1600-2D 9709L02) GOOD (7-8)

HTTP://WWW.CRESTAUDIO.COM/MEDIA/PDF/CKS16002_11-20-96.PDF

FEATURES: THE CKS1600-2 POWER PROCESSING AMPLIFIER IS DESIGNED SPECIFICALLY FOR THE UNIQUE REQUIREMENTS OF HIGH-QUALITY COMMERCIAL AND INDUSTRIAL SOUND INSTALLATIONS. DESIGN GOALS MET BY THE CKS1600-2 INCLUDE EXCEPTIONAL SONIC ACCURACY, HIGH EFFICIENCY, MINIMUM POWER CONSUMPTION, COMPREHENSIVE LOUDSPEAKER PROTECTION, AND THE ABILITY TO HANDLE EXTENDED DUTY CYCLES. IN ADDITION, THE CKS1600-2 INCORPORATES OUR PROPRIETARY MODULAR APPROACH--CALLED POWER PROCESSING--TO INPUT/OUTPUT AND EXTERNAL CONTROL CONFIGURATION.
* 715W @ 8OHM - 1130W @ 4OHM - 1440W @ 2 OHM
* 4U, 71LBS

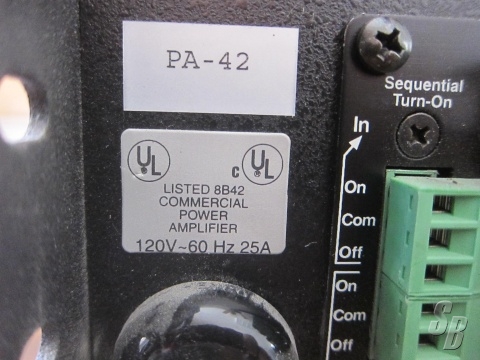

* SEQUENTIAL TURN-ON/OFF (STO)
* POWERSAVE
* 3 MODULE BAYS
* COOL OPERATION
* "OVERBUILT" POWER SUPPLY
* MORE TRANSISTORS
* TOURCLASS PROTECTION CIRCUITS:
O ACL (ACTIVE CLIP LIMITING) PREVENTS SPEAKER DAMAGE WITH GENTLE GAIN REDUCTION AT CLIP THRESHOLD
O IGM (INSTANTANEOUS GAIN MODULATION) MONITORS CONNECTED LOADS TO DETECT CONDITIONS THAT MAY OVERSTRESS OUTPUT DEVICES
O AUTORAMP GRADUALLY INCREASES GAIN TO ATTENUATOR SETTING LEVEL WHEN AMPLIFIER IS TURNED ON
O TOURCLASS ALSO INCLUDES COMPREHENSIVE THERMAL MANAGEMENT; AND SHORT CIRCUIT, DC VOLTAGE, TURN-ON/OFF TRANSIENT, CURRENT INRUSH AND SUB/ULTRASONIC INPUT PROTECTION
* SELECTABLE INPUT SENSITIVITY/VOLTAGE GAIN (INTERNAL JUMPERS)
* UL CERTIFICATION

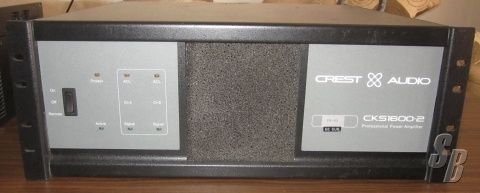

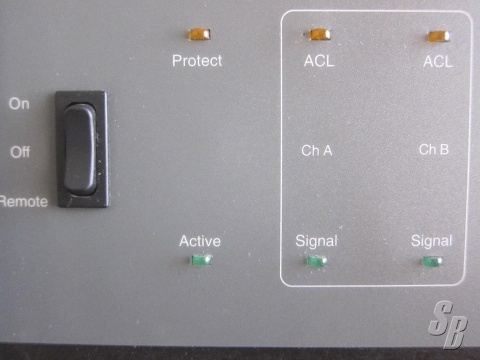

* FRONT PANEL STATUS INDICATION

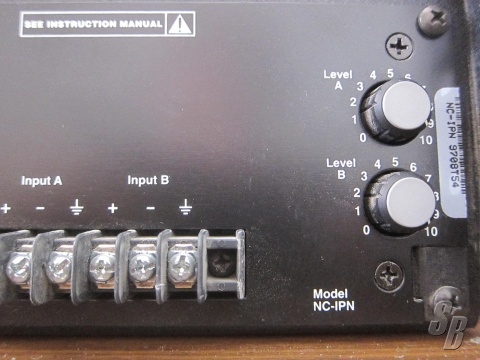

* REAR PANEL ATTENUATORS WITH REMOVABLE KNOBS

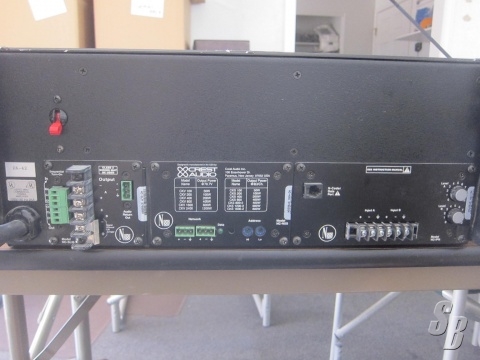

* BARRIER STRIP INPUT AND OUTPUT CONNECTORS
* OPTIONAL INPUT ISOLATION TRANSFORMERS
* FRONT PANEL LABEL AREA

EXTRAS: NO EXTRAS

MODIFICATIONS: NO MODS

HISTORY: COMES FROM A LAS VEGAS HOTEL INSTALL AS THEY HAVE UPGRADED

COMMENTS: 100% WORKING CONDITION,

WE HAVE A FEW NDP-ENG CREST AUDIO ETHERNET NEXSYS GATEWAYS AND CKV 1600 AND CKV 800 AMPLIFIERS THAT WILL BE SOLD SEPARATELY

THIS UNIT WAS NEVER TOURED
