ID # 106221    CURRENT CATEGORY - SPEAKERS/LINE ARRAY

For Sale: JBL AXYS OCTADRIVE DSP-CN 8-CHANNEL LINE DRIVER WITH COBRANET INTERFACE
[PRICED PER UNIT - NEW FROM MANUFACTURER - CALL FOR AVAILABILITY]
Listing last update on February 22, 2018 - Viewed 573 times

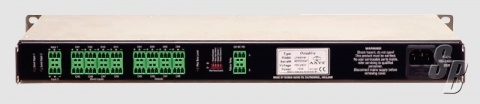

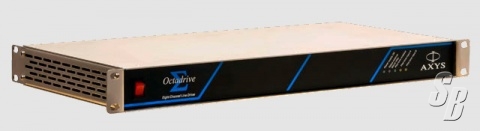

JBL AXYS OCTADRIVE DSP-CN 8-CHANNEL LINE DRIVER WITH COBRANET INTERFACE

JBL AXYS SERIES - ELECTRONICS

AXYS OCTADRIVE DSP-CN 8-CHANNEL LINE DRIVER WITH COBRANET INTERFACE

ABOUT:

THE AXYS OCTADRIVE DSP IS DESIGNED AS A MULTI CHANNEL LINE DRIVER, WITH ON-BOARD DSP AND RISC PROCESSOR, THAT IS INTENDED FOR USE IN PROFESSIONAL AUDIO INSTALLATIONS. ALL THE SIGNAL PROCESSING FUNCTIONS, NECESSARY TO PROPERLY CONTROL AND MONITOR EACH OUTPUT CHANNEL ARE IMPLEMENTED ON-BOARD.

THE UNIT HAS 2 ANALOGUE AUDIO INPUTS, 8 DIGITAL AUDIO INPUTS VIA COBRANET, A DIGITAL SIGNAL PROCESSOR WITH 10 INPUTS AND EIGHT TRANSFORMER BALANCED ANALOGUE OUTPUTS.

ADDITIONAL FUNCTIONALITY IS PROVIDED TO ALLOW SPECIFIC AUDIO PATHS TO BE BROADCAST FROM THE OCTADRIVE VIA COBRANET.

THE ANALOGUE AUDIO INPUTS ARE TRANSFORMER BALANCED & ALL NECESSARY SIGNAL PROCESSING IS IMPLEMENTED IN THE DIGITAL DOMAIN BY MEANS OF A 32 BITS FLOATING POINT DSP.

THE DSP ALLOWS PROVIDES USERS WITH CONTROL OF THE: OUTPUT CHANNEL GAIN, EQUALISATION FILTERS AND DELAYS.

BESIDES THE AFOREMENTIONED, THE DSP ALSO PROVIDES: EQ, PRE-DELAY, VOLUME AND
AUTOGAIN, AND COMPRESSION AS REQUIRED.

THE OUTPUT SECTION IS EQUIPPED WITH EIGHT INDEPENDENT LOW IMPEDANCE DRIVE CHANNELS. EACH OUTPUT IS TRANSFORMER BALANCED AND BE EQUIPPED WITH CIRCUITRY TO COMPENSATE FOR THE DISTORTION CREATED BY THE TRANSFORMERS. HARDWARE BYPASS FUNCTIONALITY FROM ANALOGUE INPUT 1 TO ALL ANALOGUE OUTPUTS IS ALSO PROVIDED.

A HEADPHONE AMPLIFIER IS ALSO BE PROVIDED TO ALLOW LOCAL MONITORING OF ALL ANALOGUE INPUTS AND OUTPUTS.

SEE INSTALLATION & USER MANUAL

BRAND NEW WITH FULL FACTORY WARRANTY, FOB CA, USA.

WWW.SOUNDBROKER.COM LINKING BUYERS AND SELLERS TOGETHER SINCE 1997 FOR NEW AND USED PROFESSIONAL AUDIO, LIGHTING, STAGING, PROJECTORS, AND VIDEO EQUIPMENT.

Additional Details
ID#: 106221
Listing Type:
Standard
Model: AXY-391030
Manufacturer: JBL
Condition: MFG A STOCK
Shipping Info: 0.00 lbs.,
Seller's Location: IL, USA
Updated: February 22, 2018
M.S.R.P.: $0.00
Offered at: Contact Us
