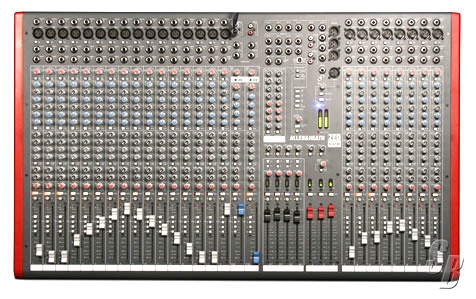

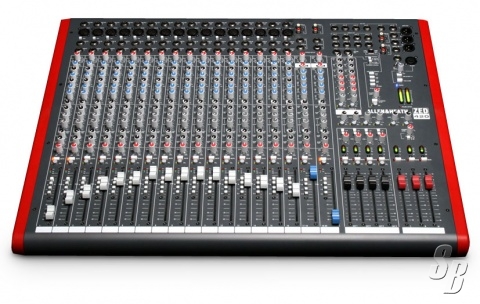

ALLEN & HEATH ZED-428 4 BUSS CONSOLE
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Listing last update on January 20, 2009 - Viewed 644 times

ALLEN & HEATH ZED -428 MFG REP SAMPLE ONLY ONE AVAILABLE.

24 MIC/LINE INPUTS
7X2 MATRIX OUTPUTS
6 AUX SENDS
DIRECT OUTPUTS AND INSERTS ON ALL MONO CHANNELS
INDIVIDUAL PHANTOM POWER
16 MIC/LINE INPUTS
4 BUSS OUTPUTS
DUOPRE DUAL STAGE PREAMPS

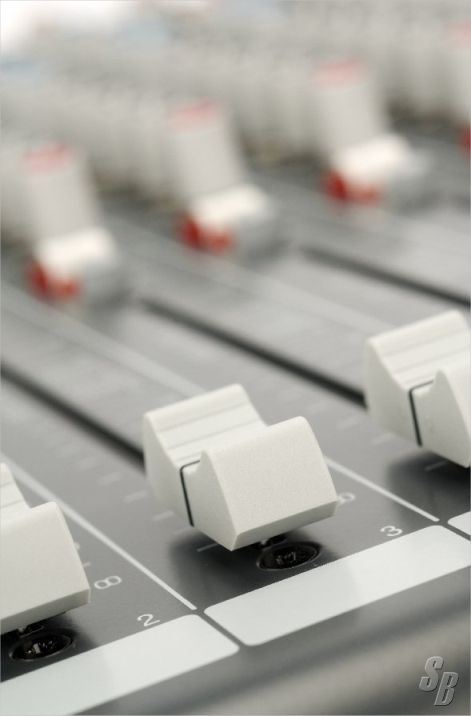

100MM FADERS
4-BAND SEPT-MID EQ

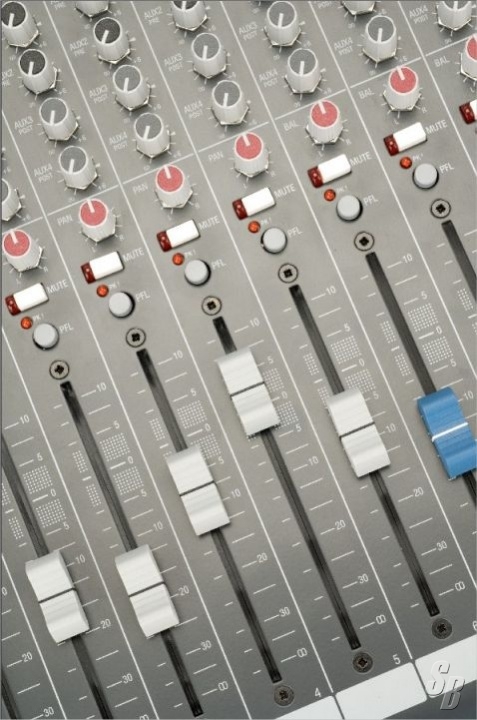

MUTE SWITCH, PFL ON EACH INPUT

4-BAND EQ WITH 2 SWEPT MIDS AND IN/OUT SWITCH

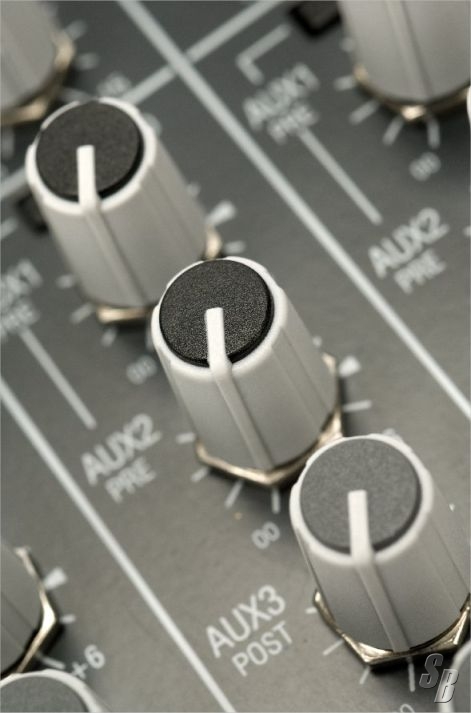

6 AUXILIARY SENDS (2 PRE, 2 POST, 2 PRE/POST)
4 SUB GROUPS FED FROM EACH CHANNEL
L, R AND M MAIN MIX OUTPUTS
INDIVIDUAL CHANNEL 48V PHANTOM POWER
DIRECT OUTPUT ON EVERY MONO CHANNEL
2 DUAL STEREO INPUTS WITH 4-BAND EQ
PEAK AND SIGNAL INDICATION ON EVERY CHANNEL
2 MATRIX SECTIONS AVAILABLE; CAN SEND OUTPUT TO USB
CONFIGURABLE USB STEREO AUDIO IN/OUT
MASTER LEVEL CONTROLS ON ALL OUTPUTS
EASY TO USE LAYOUT ALL CONNECTIONS AND CONTROLS ON TOP SURFACE
CAKEWALK SONAR LE BUNDLED WITH MIXER

THE ZED 4-BUSS SERIES BENEFITS FROM SEVERAL NEW DESIGN ELEMENTS, INCLUDING A NEW DUO PRE MIC PREAMP AND OPTIMIZED MUSIQ EQ SECTION. 6 AUX SENDS WITH AUX 1&2 BEING DEDICATED AS PRE FADER FOR MONITOR MIXES, 3&4 SWITCHABLE PRE/POST AND 5&6 AS DEDICATED EFX SENDS POST FADER. AUX 5&6 CAN ALSO BE SEND TO THE INTEGRATED USB I/O FOR USE AS EFFECTS SENDS. THE ZED
4 BUSS WAS DESIGNED AS A NO COMPROMISE LIVE SOUND/PA MIXER FOR THOSE ON A MORE BUDGET MINDED APPROACH.

THE ZED 4-BUS SERIES TAKES INSPIRATION FROM DIFFERENT PRODUCT LINES WITHIN THE A&H RANGE, COMBINING THEM WITH FRESH NEW IDEAS TO GIVE STUNNING RESULTS IN A NEAT AND EASY TO USE PACKAGE.

THE PADLESS DUOPRETM MIC/LINE PRE-AMPLIFIER IS THE NEW DESIGN FIRST IMPLEMENTED ON THE ZED-14 AND DELIVERS A HIGH-HEADROOM, LOW-NOISE SIGNAL. THE 4 BAND, 2 SWEEP EQ, ALONG WITH THE LOW NOISE SUMMING AMPS, IS BORROWED FROM THE ACCLAIMED GL2400, WHILE THE BUS ARCHITECTURE IS A SIMPLIFIED, BUT EQUALLY COMPREHENSIVE, VERSION OF THAT EMPLOYED IN THE SUCCESSFUL GL SERIES.

THE USB AUDIO INTERFACE, WITH ITS UNIQUELY FLEXIBLE CAPABILITY, ALLOWS DIFFERENT SIGNALS TO BE SENT TO USB, FROM LR OR FROM SELECTED AUX BUSES. THE USB RETURN SIGNAL CAN BE ROUTED STRAIGHT TO THE LR MIX OR TO A STEREO CHANNEL. THE CONNECTORS ARE PLACED ON THE TOP SURFACE FOR EASY PLUGGING & PATCHING, AND THE CONSTRUCTION, WITH INDIVIDUAL CIRCUIT BOARDS FIRMLY NUTTED TO THE TOP PANEL, IS AS ROCK SOLID AS ALLEN & HEATHæ‹… TOP OF THE RANGE ML SERIES MIXERS.

NEW WITH FULL FACTORY WARRANTY, FOB LAS VEGAS
