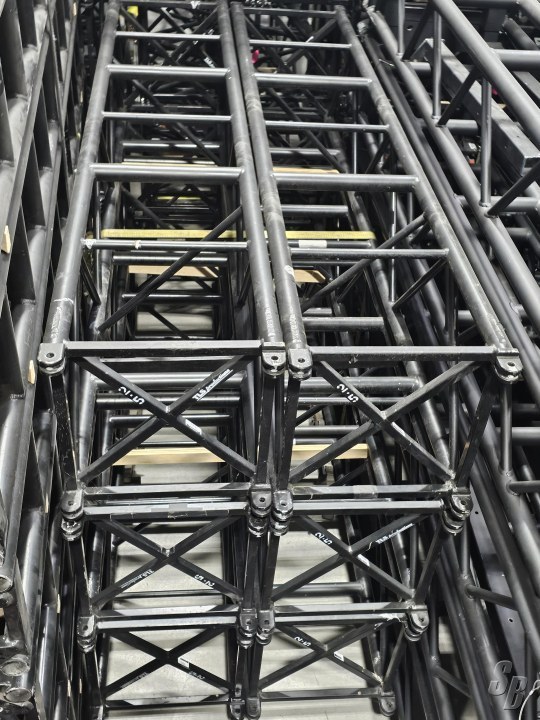

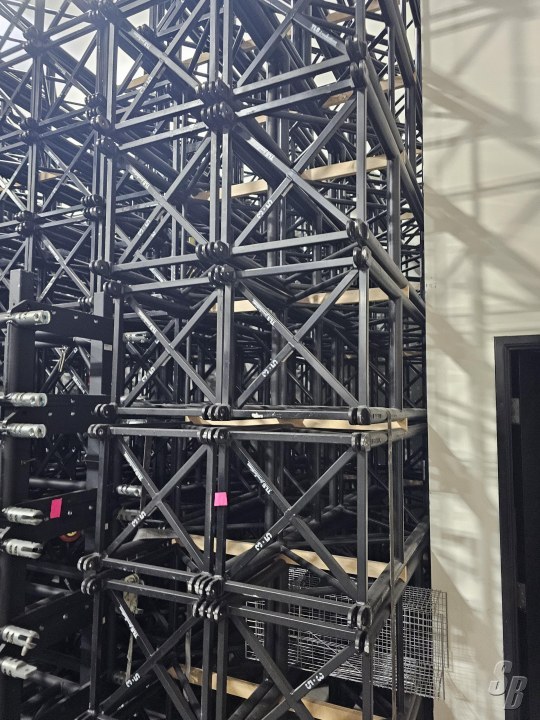

For Sale: SUPERTRUSS 20.5" X 20.5" BOX TRUSS METRIC LENGTH 3.5M JTE
[PRICED PER UNIT - 12 AVAILABLE AT TIME OF LISTING]
Listing last update on March 18, 2024 - Viewed 53 times

JAMES THOMAS B2035M - CUSTOM (YOM: 2007) (S#: TBD) SUPERB (8-9):

THOMAS HAS RETHOUGHT TRUSS DESIGN TO ENCOMPASS THE CHANGING DEMANDS OF THE TOURING INDUSTRY.

SUPERTRUSS DESIGN FEATURES :

• NEW DOUBLE END CONNECTORS, WHICH ARE ORIENTATED SO THAT THE TRUSS ELEMENTS ARE UNISEX (THEY CAN BE USED EITHER WAY)
• MADE FROM 6061T6 OR 6082T6 ALLOY, THE TRUSS HAS 2“ X 0.157“ MAIN CHORD TUBES AND 1“ X 0.125“ DIAGONAL TUBES.
• SUPERTRUSS SAVES TRUCK SPACE BECAUSE OF ITS VERY HIGH STRENGTH IN RELATION TO ITS SIZE AND ALSO THE SPACE SAVING DESIGN OF THE CORNERS. THE CORNERS ARE SIMPLICITY THEMSELVES.
  • THE 2 WAY CORNER, ONLY A CONNECTING GATE IS REQUIRED TO BRACE BETWEEN THE OUTER FORK CONNECTORS.
  • THE 3 WAY CORNER ONLY REQUIRES A CONNECTING GATE AND 2 SQUARE CONNECTING PLATES.
  • THE 4 WAY CORNER REQUIRES JUST 2 SQUARE CONNECTING PLATES.
• IN ORDER TO USE THE SUPERTRUSS WITH TOWERS, 2 SLEEVE CONNECTING PLATES WITH ROLLER WHEELS ARE REQUIRED WITH 1 OR 2 LADDERS DEPENDING ON HOW MANY TRUSS CONNECTIONS THERE ARE.
• 600 CORNERS REQUIRE 2 EXTENDED DOUBLE FORK CONNECTORS AND A CONNECTING GATE.
• OTHER ANGLES CAN BE EASILY MADE TO ORDER.
• VARIABLE AND VERTICAL CONNECTING FORKS ARE AVAILABLE FOR 0 - 900 OPERATION.

EXTRAS:

4 PINS AND R CLIPS PER SECTION

MODIFICATIONS:

NONE

HISTORY:

AUTOSHOW

COMMENTS:

TRUSSES ARE IN METRIC LENGTHS 1.5METER TO 3.5 METER

THIS UNIT WAS NEVER TOURED
