MEYER DS-4P : HORN-LOADED MID-BASS LOUDSPEAKER
[PRICED PER UNIT - 2 AVAILABLE AT TIME OF LISTING]
Listing last update on October 16, 2009 - Viewed 118 times

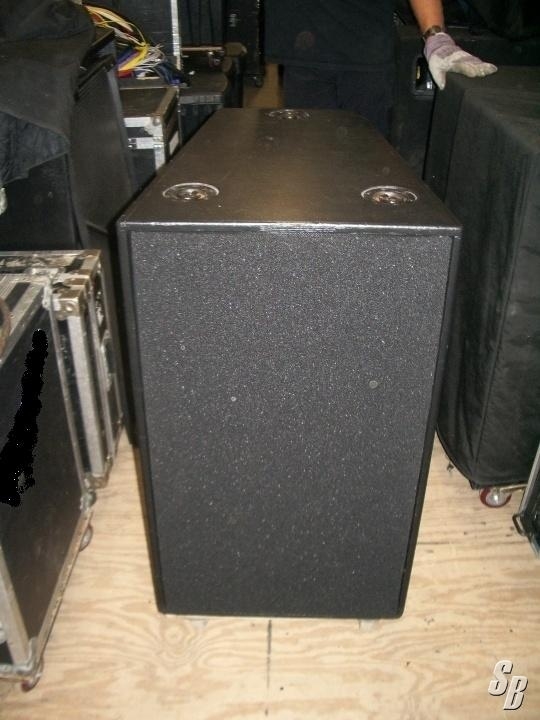

MEYER SOUND DS-4P HORN-LOADED MID-BASS LOUDSPEAKER IN GOOD CONDITION: (SN:TBD:

THE MEYER SOUND DS-4P IS AN ARRAYABLE, SELF-POWERED MID-BASS LOUDSPEAKER THAT PROVIDES HIGH POWER WITH EXTREMELY LOW DISTORTION.

DEVELOPED TO SUPPLEMENT THE 70 TO 200 HZ BAND IN FULL-RANGE SYSTEMS, THE DS-4P AFFORDS ADDITIONAL MID-BASS HEADROOM WITH ENHANCED DIRECTIONAL CONTROL. HOUSING TWO OF MEYER SOUNDæ‹… RUGGED 12-INCH DRIVERS IN A TRUE HORN ENCLOSURE, THE DS-4P PROVIDES MAXIMUM ENERGY TRANSFER IN THE MID-BANDS WITH MINIMUM FREQUENCY RESPONSE RIPPLE. THE DS-4P IS MOST EFFECTIVE WHEN USED IN MULTIPLES WITHIN AN ARRAY AND, BECAUSE IT SHARES THE SAME CABINET æ“¢OOTPRINT AS THE MSL-4, INCORPORATES EASILY INTO MSL-4 ARRAYS.

THE DS-4P INCORPORATES A TWO-CHANNEL CLASS AB/H POWER AMPLIFIER WITH COMPLEMENTARY POWER MOSFET OUTPUT STAGES AND A PEAK POWER RATING OF 1240 WATTS (620 WATTS PER CHANNEL). THE INTEGRAL ELECTRONICS MODULE ALSO FEATURES MEYER SOUNDæ‹… PROPRIETARY PHASE-CORRECTED ACTIVE PROCESSING CIRCUITS AND DRIVER PROTECTION VOLTAGE LIMITERS TO ENSURE EXCEPTIONAL PERFORMANCE AND RELIABILITY. A LASER-TRIMMED DIFFERENTIAL INPUT STAGE AFFORDS SUPERIOR COMMON-MODE REJECTION TO ALLOW SIGNAL RUNS USING SHIELDED, TWISTED-PAIR CABLE. THE INTEGRAL POWER SUPPLY SUPPRESSES HIGH VOLTAGE TRANSIENTS AND INCORPORATES MEYER SOUNDæ‹… INTELLIGENT AC SYSTEM FOR AUTOMATIC VOLTAGE SELECTION (ALLOWING WORRY-FREE WORLDWIDE OPERATION), EMI FILTERING, SOFT CURRENT TURN-ON AND SURGE SUPPRESSION.

PRICED EACH

FOB: GA
