EAW KF300Z (YOM: 2006) (S#: TBD) SUPERB (8-9)
[PRICED PER UNIT - 2 AVAILABLE AT TIME OF LISTING]
Listing last update on March 04, 2009 - Viewed 111 times

DESCRIPTION: EAW KF300Z (YOM: 2006) (S#: TBD) SUPERB (8-9)

FEATURES: FEATURES: THE KF300Z VIRTUAL ARRAY LOUDSPEAKER OFFERS 90-DEGREE HORIZONTAL DISPERSION AND IS ONE OF THE SMALLEST 3-WAY LOUDSPEAKERS AVAILABLE. THE MIDRANGE SECTION INCORPORATES A 7-IN RADIAL PHASE PLUG BASED ON EAW'S PATENTED 10-IN RADIAL PHASE PLUG USED IN OTHER KF SERIES PRODUCTS. APPEARANCE IS ENHANCED WITH A CURVED GRILLE MATCHING OTHER KF300Z AND COMPANION KF600Z MODELS.

KF300Z
MEDIUM FORMAT ARRAY LOUDSPEAKER


KEY FEATURES

3-WAY FULL RANGE
1 X 12 IN WOOFER, SEALED
1 X 7 IN CONE, HORN-LOADED
1 X 1.4 IN COMPRESSION DRIVER, HORN-LOADED
PORTABLE & INSTALLATION


APPLICATIONS

BAND PA
MEDIUM-SCALE EVENTS
CLUBS, CORPORATE AV, LIVE THEATRE, HOUSES OF WORSHIP



OPERATING MODE PASSIVE OR BI-AMP
OPERATING RANGE 65 HZ TO 17 KHZ, +/-3 DB
BEAMWIDTH 90° (H) X 45° (V)
POWER HANDLING/OUTPUT PASSIVE: 750W (4 OHMS) - 121DB SPL (LONG TERM).
BI-AMPED: (LF/MF) 750W (4 OHMS) - 121DB SPL; (HF) 200W (8 OHMS) - 124DB SPL

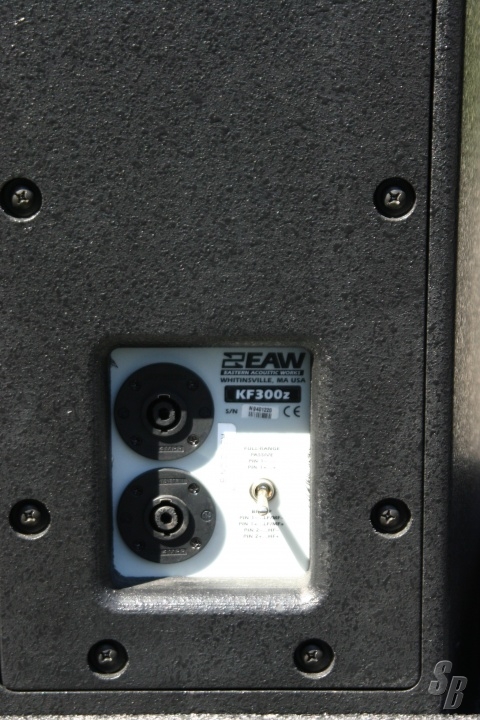

CONNECTIONS 2 NEUTRIK NL4 SPEAKON; 2 NEUTRIK NL8 SPEAKON
RIGGING/MOUNTING 3-POSITION FLYTRACK; THREADED MOUNTING POINTS
DIMENSIONS/WEIGHT 27.5" (H) X 14.75" (W) X 15.4" (D); 87 LBS

EXTRAS: NEW CONDITION BLACK ROAD CASE WITH LOCKING CASTERS INCLUDED.

MODIFICATIONS: NO

HISTORY: SPEAKERS WERE ONLY USED FOR ABOUT 2 MONTHS FOR SMALL BAND PA. THEY ARE IN LIKE NEW CONDITION WITH ONLY A FEW MINOR SCRATCHES.

COMMENTS: PRICE IS PER SPEAKER KF300Z'S IN A ROAD CASE. THEY ARE IN 100% WORKING ORDER AND HAVE NEVER BEEN MODIFIED. CONDITION OF THE ENTIRE PACKAGE IS SUPERB.

THIS UNIT WAS NEVER TOURED
