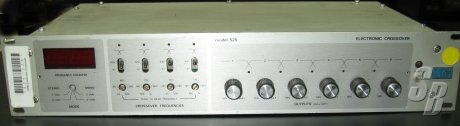

UREI MODEL 525 ELECTRONIC CROSSOVER
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Listing last update on April 23, 2007 - Viewed 173 times

DESCRIPTION: UREI 525 (?) (S#: 325) GOOD (7-8)

FEATURES: THE MODEL 525 WAS DESIGNED WITH THE VERSATILITY REQUIRED FOR USE IN PROFESSIONAL SOUND SYSTEMS. IT PROVIDES THE FREQUENCY BANDS AND SIGNAL LEVELS NECESSARY FOR WELL BALANCED MULTI-LEVEL AMPLIFICATION.
INPUTS: BALANCED BRIDGING, DIFFERENTIAL AMPLIFIER
IMPEDANCE: 40 OHMS BALANCED, 20 KOHMS UNBALANCED
MAX INPUT LEVEL: +20 DB
GAIN: UNITY, +/- 1 DB

CROSSOVER TYPE: 3RD ORDER BUTTERWORTH, 18 DB/OCTAVE
TUNING RANGE: FILTERS #1 & #3, CONTINUOUSLY VARIABLE FROM 50HZ TO 500 HZ (XL RANGE), AND 500HZ TO 5KHZ(X10 RANGE) AND 1 KHZ TO 10KHZ (X10 RANGE)

FREQUENCY COUNTER:
RANGE: 1 TO 9999 HZ
RESOLUTION: 1 HZ
ACCUARACY: 0.1%, +/- 1 HZ
EXTERNAL INPUT: -10DB TO +20DB

OUTPUTS (6): FLOATING, TRANSFORMER ISOLATED
OUTPUT LOAD: 600 OHMS OR GREATER
POWER OUTPUT: +20 DBM INTO 600 OHM LOAD
DISTORTION: LESS THAN 0.5% THD
FREQUENCY RESPONSE: +/-1 DB, 20 HZ TO 20 KHZ

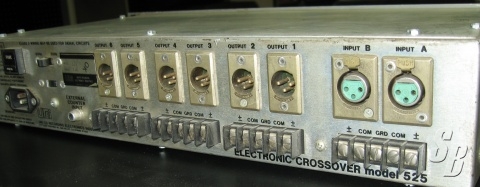

CONNECTORS: INPUTS AND OUTPUTS ON REAR PANEL BARRIER STRIPS AND XLR/QG CONNECTORS



EXTRAS: MANUAL IN PDF FILE (IT CAN BE PRINTED OUT, IF NECESSARY)

MODIFICATIONS: NONE

HISTORY: IT HASNT BEEN USED MUCH. MATTER OF PREFERENCE.

COMMENTS: NONE

THIS UNIT WAS NEVER TOURED
