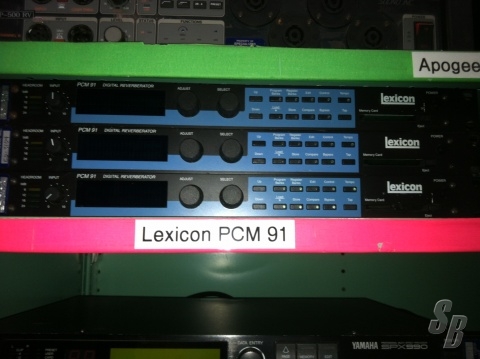

LEXICON PCM91 (YOM: 1999) (S#: TBD) GOOD (7-8)
[PRICED PER UNIT - 2 AVAILABLE AT TIME OF LISTING]
Listing last update on February 28, 2013 - Viewed 45 times

LEXICON PCM91 (YOM: 1999) (S#: TBD) GOOD (7-8)

FEATURES: ANALOG AUDIO INPUT XLR AND 1/4" BALANCED (T/R/S)
INPUT LEVEL -2DBU TO +20DBU, BALANCED;
-22DBU TO 0DBU, UNBALANCED
INPUT IMPEDANCE 100KΩ, BALANCED;50KΩ, UNBALANCED
ANALOG AUDIO OUTPUT XLR AND 1/4"T/R/S BALANCED
OUTPUT LEVEL +18DBM, BALANCED;+4DBM, UNBALANCED
OUTPUT IMPEDANCE 125Ω, BALANCED
DIGITAL AUDIO INPUT XLR, AES/EBU;
COAXIAL RCA, S/PDIF
FORMAT AES/EBU, BALANCED;
S/PDIF, UNBALANCED
SAMPLE RATE 44.1KHZ AND 48KHZ
DIGITAL AUDIO OUTPUT XLR, AES/EBU;
COAXIAL RCA, S/PDIF
FORMAT AES/EBU, BALANCED;
S/PDIF, UNBALANCED
SAMPLE RATE 44.1KHZ AND 48KHZ
CONVERSION 24-BIT A/D;24-BIT D/A
INTERNAL AUDIO DSP 24-BIT (PCM 81);20-BIT (PCM 91)
FREQUENCY RESPONSE 10HZ - 20KHZ ±.5DB
CROSSTALK -55DB 10HZ TO 20KHZ
THD <0.006%, 10HZ - 20KHZ
DYNAMIC RANGE D/A:>98DB TYPICAL, 10HZ - 20KHZ
A/D:>105DB TYPICAL, 10HZ- 20KHZ
A/A:>96DB TYPICAL, 10HZ - 20KHZ
MIDI INTERFACE 5-PIN DIN CONNECTORS FOR MIDI IN, THRU AND OUT
FOOTSWITCH 1/4"T/R/S CONNECTOR FOR TWO INDEPENDENT MOMENTARY FOOTSWITCHES (SYSTEM DETECTS NORMAL-OPEN, OR NORMAL-CLOSED ON POWER UP)
FOOT CONTROLLER 1/4"T/R/S CONNECTOR FOR FOOT PEDAL(100&OMEGA;- 10K&OMEGA;IMPEDANCE)
MEMORY CARD
CONNECTOR PCMCIA TYPE L CARDS, 68 PINS
STANDARDS PCMCIA 2.0 AND JEIDA 4.0
CARD FORMAT UP TO 1MB OF SRAM (ATTRIBUTE MEMORY NOT REQUIRED)
POWER REQUIREMENTS 100 - 240 VOLTS AC;50 - 60HZ;35 WATTS
AUTOMATIC SWITCHING (3-PIN IEC CONNECTOR)
REMOTE POWER IN 2.5 MM 9 VOLTS AC (NOT INCLUDED)
DIMENSIONS 19" W X 1.75" H (1U) X 12" D
(483 X 45 X 305 MM), RACK MOUNT STANDARD
WEIGHT 6.4 LBS.(2.9 KG)


EXTRAS: MANUAL AVAILABLE UPON REQUEST. ADDITIONAL PHOTOS OF AVAILABLE INDIVIDUAL UNITS UPON REQUEST.

MODIFICATIONS: NO MODIFICATIONS

HISTORY: UTILIZED IN A THEATRICAL TOURING ENVIRONMENT. NO ROCK TOURS.

COMMENTS: WELL MAINTAINED AND QC'D.

THIS UNIT WAS TOURED
