L ACOUSTIC 115XT HIQ (YOM: 2009) (S#: TBD) SUPERB (8-9)
[PRICE SHOWN FOR THE ENTIRE CONTENT OF THIS LISTING]
Listing last update on June 18, 2011 - Viewed 84 times

L ACOUSTIC 115XT HIQ (YOM: 2009) (S#: TBD) SUPERB (8-9)
[PRICE SHOWN FOR THE ENTIRE CONTENT OF THIS LISTING]

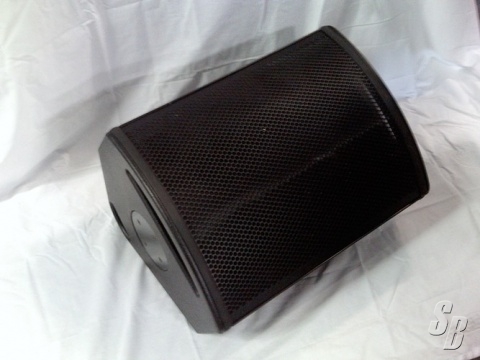

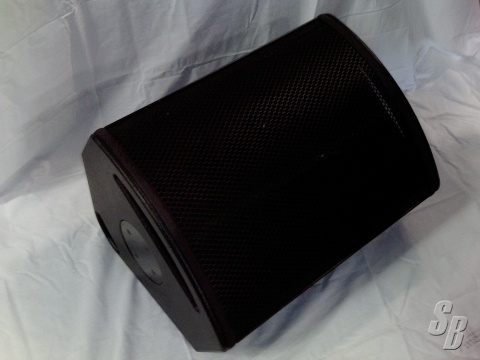

12 EA. L ACOUSTIC 115XT HIQ (YOM: 2009) (S#: TBD) SUPERB (8-9)

FEATURES: HESE MONITORS ARE VERY GENTLY USED, BUT IN PERFECT WORKING ORDER. THEY HAVE BEEN PROFESSIONALLY PAINTED BLACK.

ACTIVE STAGE MONITOR

* HIGH POWER AND SONIC PERFORMANCE, CLARITY AND PRECISION

* EXCEPTIONAL RIDER FRIENDLINESS

* TIGHT COVERAGE PATTERN AND EXCEPTIONAL IMMUNITY TO FEEDBACK

* DUAL WEDGE SHAPE FOR SHORT OR LONG-THROW FLOOR MONITORING

* LOW CABINET PROFILE FOR DISCRETE TV STAGE PRESENCE

* STURDY DESIGN AND CONSTRUCTION FOR EXTENDED LONGEVITY

* LA8 ADVANCED SYSTEM DRIVE AND PROTECTION

THE 115XT HIQ IS THE HIGH-END MODEL WITHIN THE L-ACOUSTICS® XT COAXIAL SERIES, DESIGNED FOR STAGE MONITOR AND DISTRIBUTED FOH APPLICATIONS. IT OPERATES AS AN ACTIVE 2-WAY ENCLOSURE, OVER A FREQUENCY BANDWIDTH FROM 50 HZ TO 20 KHZ WHICH CAN BE LOWERED TO 32 HZ WITH THE ADDITION OF THE SB18 SUBWOOFER.



THE 115XT HIQ ENCLOSURE CONTAINS A 3’’ DIAPHRAGM COMPRESSION DRIVER LOADED ONTO A CONSTANT DIRECTIVITY CONICAL WAVEGUIDE UNITED IN A COAXIAL CONFIGURATION WITH A 15’’ LOW FREQUENCY TRANSDUCER. INTEGRATED INTO A COMPACT LOW PROFILE BASS-REFLEX TUNED ENCLOSURE THIS COAXIAL TRANSDUCER ARRANGEMENT PRODUCES A 50° AXI-SYMMETRIC DIRECTIVITY OUTPUT ALONG WITH A SMOOTH TONAL RESPONSE FREE OF ANYSECONDARY LOBES OVER THE ENTIRE FREQUENCY RANGE, RESULTING IN EXCEPTIONAL IMMUNITY TO FEEDBACK ESPECIALLY IN MONITORING SITUATIONS.



MADE OF HIGH-GRADE BALTIC BIRCH PLYWOOD, THE WEDGE-SHAPED CABINET DESIGN MAKES THE 115XT HIQ PERFECTLY SUITED TO SHORT OR LONG THROW MONITORING USE WITH TWO FIXED ANGLE SETTINGS OF 30Ëš AND 60° FROM VERTICAL. THE 115XT HIQ CAN ALSO BE POLE-MOUNTED USING THE INTEGRATED SOCKET OR FLOWN USING THE COMPLEMENTARY ETR15 BRACKET OR XTLIFTBAR ACCESSORY.



THE CONTROL AND AMPLIFICATION OF THE 115XT HIQ IS MANAGED BY THE L-ACOUSTICS® LA8 PLATFORM. THE ACTIVE DSP FILTERING ENCOMPASSES ADVANCED CROSSOVER FUNCTIONS, SYSTEM EQ, HF AND LF TRANSDUCER TIME ALIGNMENT, AND DUAL PROTECTION OF THE TRANSDUCERS (PEAK AND RMS). THE L-ACOUSTICS® LA8 AMPLIFIED CONTROLLER OFFERS THE FOLLOWING DRIVE MODES:

*FULL RANGE MODE FOR 115XT HIQ STANDALONE USE AT NOMINAL BANDWIDTH ([HIQ_FR], [HIQ_FI] AND [HIQ_MO] PRESETS)

*HIGH-PASS MODE WITH 100 HZ HIGH-PASS FILTER TO POSSIBLY ASSOCIATE THE COMPLEMENTARY SB18 SUBWOOFER ([HIQ_FR_100], [HIQ_FI_100] AND [HIQ_MO_100] PRESETS)


FOR EACH MODE A DISTINCTION IS DRAWN BETWEEN [FRONT], [FILL] AND [MONITOR] PRESETS AS THEY RESPECTIVELY MATCH FRONT OF HOUSE, DISTRIBUTED APPLICATIONS AND HALF-SPACE LOADING OPERATING CONDITIONS.

THE PERFORMANCES OF THE 115XT HIQ ENCLOSURE DEPEND UPON THE CHOICE OF PRESET AND PHYSICAL SYSTEM CONFIGURATION.

EXTRAS: NO EXTRAS.

MODIFICATIONS: CABINETS HAVE BEEN PROFESSIONALLY PAINTED BLACK.

HISTORY: LIVE SOUND REINFORCEMENT COMPANY

COMMENTS: NO PROBLEMS

THIS UNIT WAS TOURED-

SOLD AND PRICED AS A LOT OF 12 SPEAKERS.
