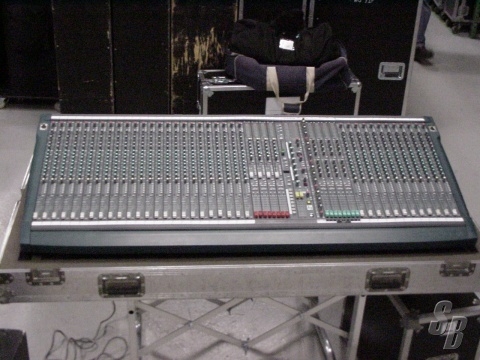

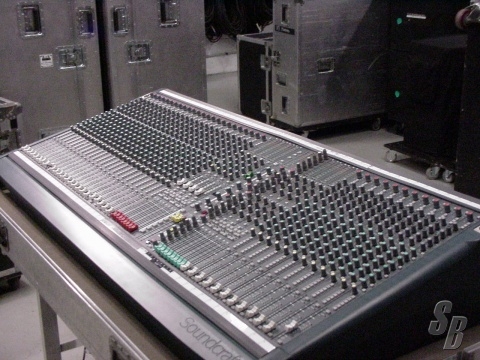

SOUNDCRAFT K3 STANDARD (YOM: ?) (S#: ?) AVERAGE FOR AGE (6-7)
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Listing last update on May 10, 2008 - Viewed 63 times

DESCRIPTION: SOUNDCRAFT K3 STANDARD (YOM: ?) (S#: ?) AVERAGE FOR AGE (6-7)

FEATURES: SOUNDCRAFT K3 STANDARD
-36 MONO INPUTS
-PAD/PHASE/HPF PER CHANNEL

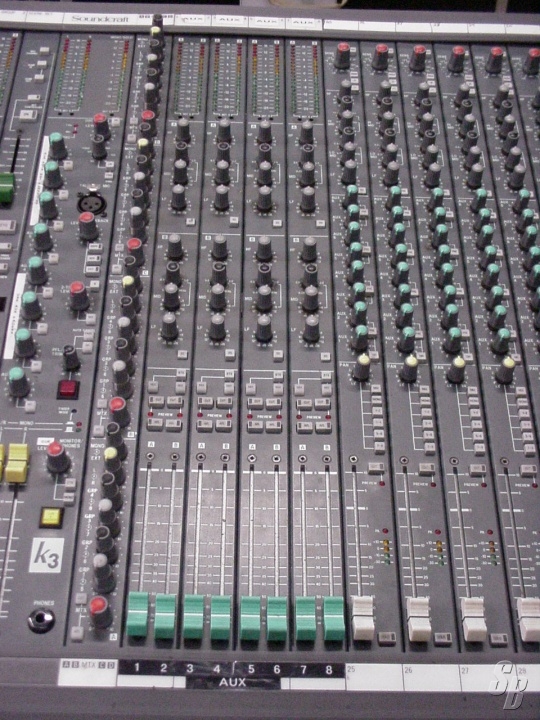

-8 AUX OUTS
-8 GROUPS
-4 MATRIX OUTS

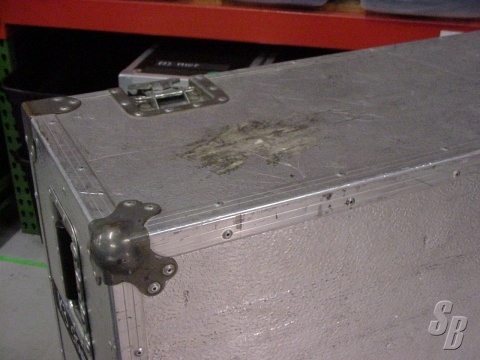

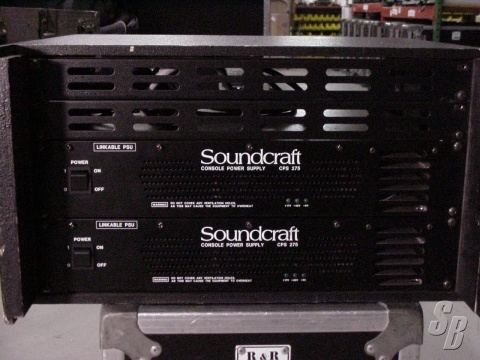

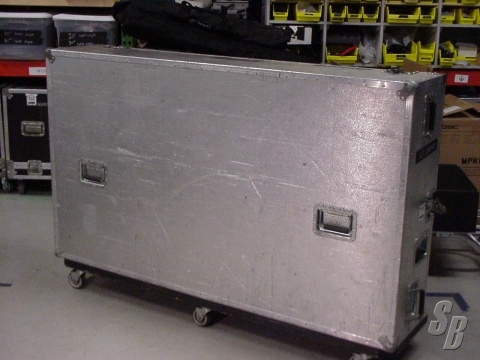

EXTRAS: INCLUDES (2) PSU, ROAD CASE, BUT NO PSU CABLES

MODIFICATIONS: NO MODIFICATIONS.

HISTORY: THIS CONSOLE WAS USED FOR LOCAL RENTALS.

COMMENTS:
ALL THE INPUTS WERE TESTED USING A SHURE BETA 87A MICROPHONE WITH THE OUTPUTS GOING TO A PAIR OF MEYER SOUND UPM-1P'S.

-PHANTOM POWER WORKED ON ALL 36 CHANNELS
-PHASE, AND HIGHPASS FUNCTIONS WORKING ON ALL 36 CHANNELS
-GROUP, MIX-PAN, AND MONO ROUTING BUSSES FUNCTIONAL ON ALL 36 INPUT CHANNELS. WITH THE EXCEPTION TO CH. 9 (SEND TO GROUP 8 IS INTERMITTENT.
-AUX 3 AND 4 METERS ARE SLOW TO REACT AND ARE INTERMITTENT.
-AUX 5 AND 6 CUT WHEN YOU TAP ON MODULE.
-AUX 1, 2, 7, 8 ARE FUNCTIONAL.
-ALL THE EQ FILTERS WERE FUNCTIONAL. WITH THE EXCEPTION TO CH. 18 WITH A NOISY LOW-MID SWEEP.
-ALL PFL AND AFL MONITORING BUSSES FUNCTIONAL.
-ALL 4 STEREO RETURNS FULLY FUNCTIONAL.
-ALL SCENE STORAGE CAPABILITIES FUNCTIONAL.
-TALKBACK ROUTING HAS NO OUTPUT TO AUX 4 AND GROUP 7.
-OSCILLATOR MODULE FUNCTIONAL
-MATRIX INPUTS AND OUTPUTS ALL FUNCTIONAL, WITH THE EXCEPTION OF THE MIX-RIGHT BUS. (NO AUDIO SENT TO MATRIX [A-C] FROM THE RIGHT MIX)
-2-TRACK INPUTS (A AND B) FUNCTIONAL
-L/R TO WEDGE INTERMITTENT



THIS UNIT WAS NEVER TOURED
