EAW DX1208 12X8 DIGITAL MATRIX MIXER WITH DSP
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Listing last update on November 15, 2016 - Viewed 106 times

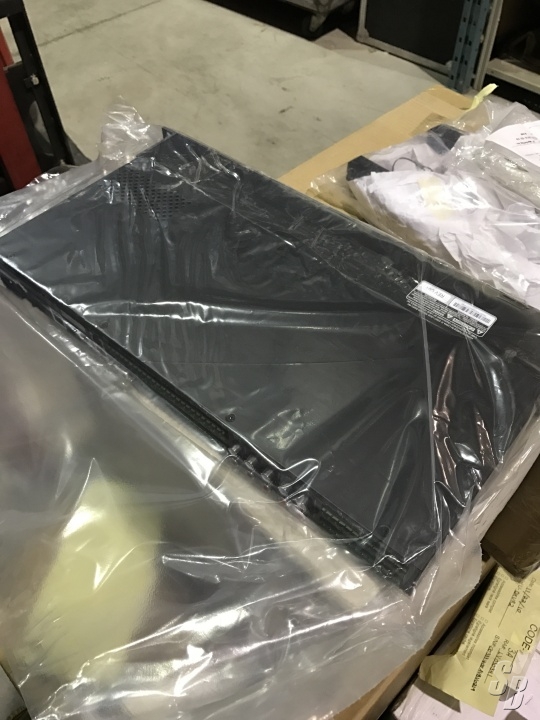

EAW DX1208 (YOM: ?) (S#: TBD) LIKE NEW (9-10)

FEATURES: "THE DX1208 IS A 12-INPUT, 8-OUTPUT DSP MATRIX MIXER DESIGNED FOR USE IN A VARIETY OF COMMERCIAL AND INSTALLED SOUND APPLICATIONS SUCH AS CHURCHES, COURTROOMS, CONVENTION CENTERS, AND HOTELS. EIGHT INPUTS ARE MIC/LINE CAPABLE, WITH SELECTABLE 48-VOLT PHANTOM POWER PROVIDED FOR EACH INPUT. THESE 8 INPUTS AND THE 8 OUTPUTS ARE ACCESSED USING EUROBLOCK DETACHABLE CONNECTORS. FOUR ADDITIONAL INPUTS ON UNBALANCED RCA CONNECTORS ALLOW THE USER TO 'STACK' INPUTS (INPUTS 5-8), INCREASING THE NUMBER OF AUDIO SOURCES THAT CAN BE CONNECTED. AN ADDITIONAL FOUR DIGITAL INPUTS ARE AVAILABLE ON S/PDIF CONNECTORS WITH SAMPLE RATE CONVERSION TO 48 KHZ. ALL 12 INPUTS ARE INCLUDED IN THE AUDIO MATRIX AND CAN BE ASSIGNED DSP FUNCTIONS PRIOR TO DISTRIBUTING SIGNAL AT LINE LEVEL.

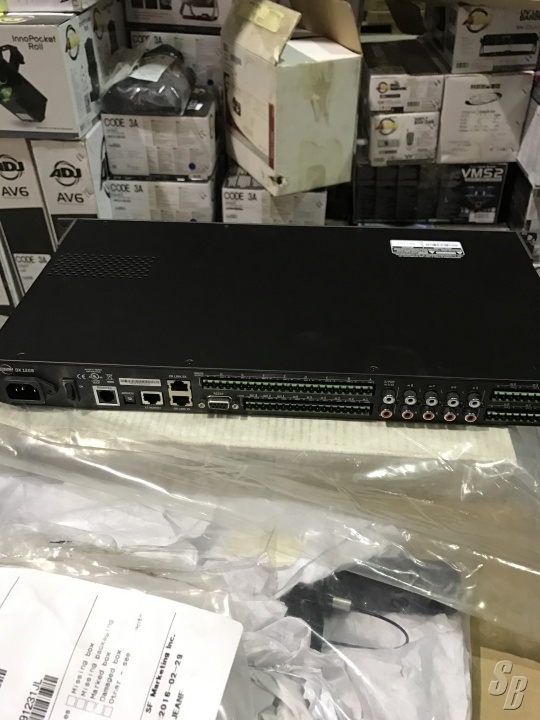

THE DX1208 CAN ALSO RECEIVE UP TO 6 LOGIC INPUTS AND SEND UP TO 3 LOGIC OUTPUTS, PROGRAMMABLE VIA THE INCLUDED DX NAVIGATOR CONTROL SOFTWARE. CONTROL OF THE DX1208 VIA THIRD PARTY SYSTEMS (I.E., AMX AND CRESTRON) IS EASILY ATTAINED WITH AN RS-232C SERIAL CONNECTION (DB9) ON THE REAR PANEL. TWO RJ-45 CONNECTIONS ARE PROVIDED AS WELL FOR LINKING MULTIPLE (UP TO EIGHT) DX LINK ENABLED PRODUCTS TOGETHER IN A RING NETWORK TOPOLOGY.

A REMOTE CONTROL PORT (RJ-25 CONNECTOR) IS INCLUDED ON THE REAR PANEL, FACILITATING THE CONNECTION OF TWO DIFFERENT TYPES OF REMOTES (UR-1 AND UR-2), ALL MOUNTED ON WALL PANELS. UP TO 10 REMOTES CAN BE ATTACHED TO THE DX1208 (MORE WHEN EXTERNAL POWER IS SUPPLIED), AND EACH IS INDIVIDUALLY ADDRESSABLE AND CONFIGURABLE.

THE DX1208 IS SUPPLIED WITH DX NAVIGATOR CONTROL SOFTWARE THAT ALLOWS ACCESS TO ALL OF THE SYSTEM'S SETTINGS AND CON GURATIONS USING A PERSONAL COMPUTER (PC). THE EXPECTED RANGE OF USER-ADJUSTABLE PROCESSING, SUCH AS EQ LTERS, GATES, COMPRESSORS, LIMITERS, AGC, DUCKING AND PRIORITY ASSIGNMENT, DELAY, GAIN, AND CROSSOVERS ARE INCLUDED. THE AUTOMIX FEATURE EMPLOYS A GAIN SHARING AUTOMIXER, TO KEEP THE OVERALL SYSTEM GAIN CONSTANT. IN ADDITION, UP TO 24 PROGRAMMABLE PRESETS ARE AVAILABLE PER DX1208, WHICH CAN BE USED TO STORE AND RECALL FREQUENTLY USED SETTINGS. THE PROGRAMMING INTERFACE IS EXIBLE, WITH CONNECTION VIA THE USB PORT ON THE FRONT PANEL, OR THE ETHERNET JACK OR DB9 CONNECTOR ON THE REAR PANEL.

THE DX1208 IS UL AND CE APPROVED. IT IS DESIGNED FOR CONTINUOUS USE IN PROFESSIONAL XED INSTALLATION SYSTEMS AND EMPLOYS A UNIVERSAL POWER SUPPLY (100-240 VAC, 50/60 HZ).

KEY FEATURES
¥ 32-BIT DSP AND 24-BIT ANALOG/DIGITAL CONVERSION
¥ 8 BALANCED MIC/LINE INPUTS ON EUROBLOCK CONNECTORS
¥ INDIVIDUALLY SELECTABLE 48V PHANTOM POWER ON MIC/LINE INPUTS 1-8
¥ 4 ADDITIONAL UNBALANCED LINE INPUTS STACKED TO INPUTS 5-8 ON RCA CONNECTORS
¥ INPUTS 9/10 AND 11/12 ON S/PDIF CONNECTORS FOR DIGITAL INPUTS
¥ GATE, COMPRESSOR/AGC, AND SIX BAND EQ ON EACH INPUT
¥ MUTE AND SOLO BUTTON ON EACH INPUT
¥ 8 BALANCED LINE-LEVEL OUTPUTS ON EUROBLOCK CONNECTORS
¥ LIMITER, EIGHT BAND EQ PLUS TWO CROSSOVER LTERS, AND DELAY ON EACH OUTPUT
¥ 6 LOGIC INPUTS AND 3 LOGIC OUTPUTS
¥ DX LINK ENABLES SMALL INSTALLATION NETWORKS, PROVIDING AN ADDITIONAL 16 INPUTS (IDX) AND 16 OUTPUTS (ODX)
¥ AUTOMIX FEATURE MAXIMIZES ACOUSTIC GAIN WITHOUT FEEDBACK
¥ ADJUSTABLE DUCKING WITH 5 PRIORITY LEVELS ASSIGNABLE TO EACH INPUT (INPUTS 1-12 AND IDX INPUTS 1-16)
¥ 1 REMOTE CONTROL PORT FOR CONNECTION AND CONTROL OF UP TO 10 REMOTES

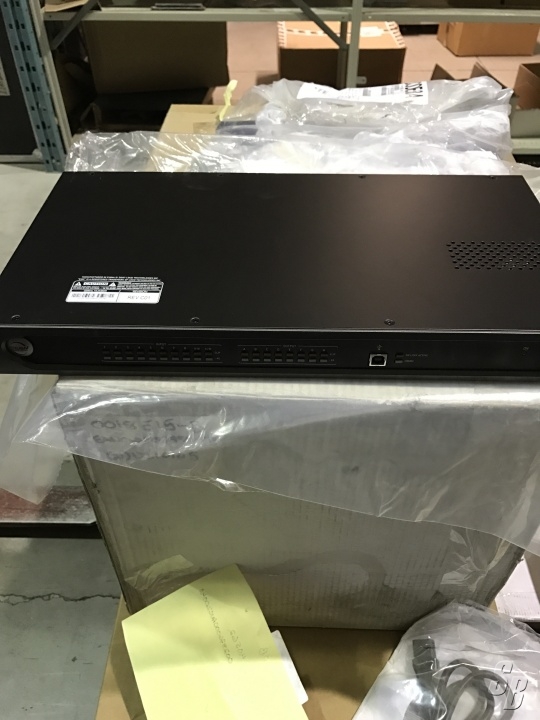

¥ 1 USB PORT ON THE FRONT PANEL FOR CONTROL AND PROGRAMMING WITH A PC
¥ REAR PANEL DB9 CONNECTOR FOR RS-232C COMMUNICATIONS WITH THIRD PARTY DEVICES (AMX, CRESTRON)
¥ REAR PANEL ETHERNET CONNECTION CAN ALSO BE USED FOR CONTROL AND PROGRAMMING
¥ COMPREHENSIVE GRAPHICAL USER INTERFACE USING DX NAVIGATOR SOFTWARE"


EXTRAS: NO

MODIFICATIONS: NONE

HISTORY: DEMO'D

COMMENTS: N/A

THIS UNIT WAS NEVER TOURED
