ALLEN & HEATH ML5000 48 CH. ANALOG CONSOLE
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Listing last update on February 19, 2014 - Viewed 136 times

ALLEN & HEATH ML5000 (YOM: ?) (S#: TBD) SUPERB (8-9)

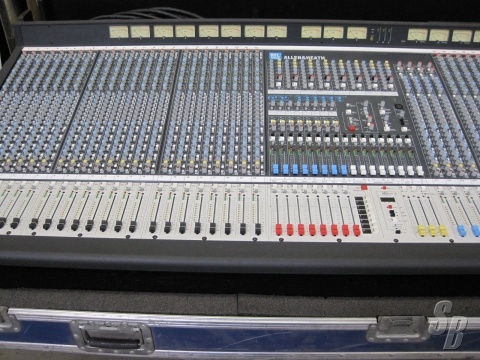

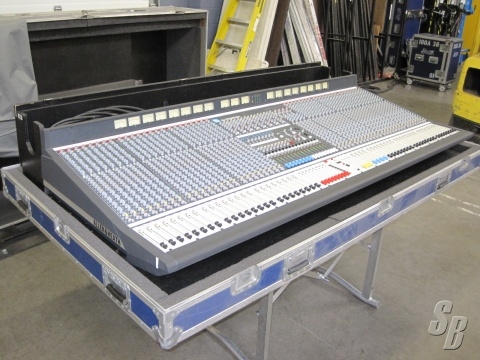

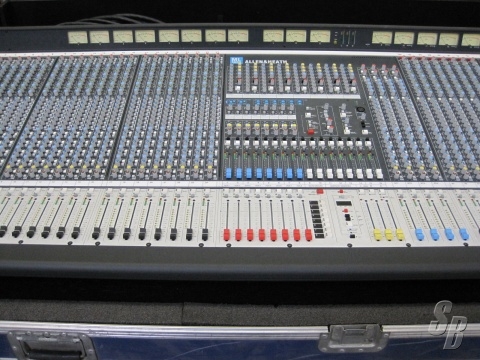

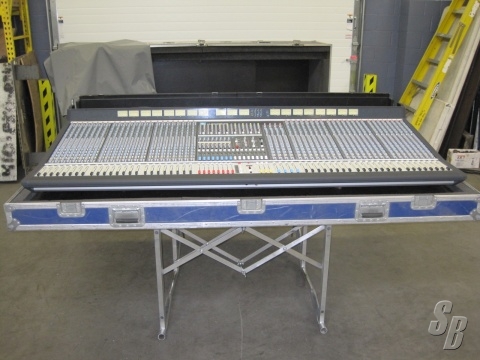

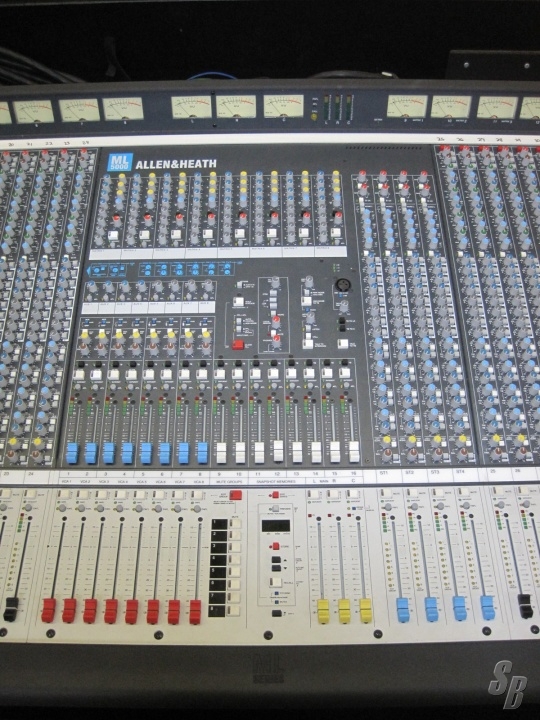

FEATURES: ML5000 48CH+4 STEREO VCA MIXING CONSOLE IN GREAT CONDITION.

THE ALLEN & HEATH ML5000 IS A LARGE FORMAT VCA EQUIPPED DUAL FUNCTION LIVE SOUND CONSOLE. IT CAN BE QUICKLY CONFIGURED FOR FRONT-OF-HOUSE (FOH) OR STAGE MONITOR MIXING. AS ONE CONSOLE SUITABLE FOR BOTH APPLICATIONS IT IS EQUALLY WELL SUITED TO INSTALLATION, RENTAL AND TOURING. IT OFFERS AN IO CAPABILITY AND FEATURE SET THAT SATISFIES THE LATEST TRENDS IN LIVE SOUND ENGINEERING, IN PARTICULAR THE GROWING NUMBER OF INPUTS AND OUTPUTS FOR MULTI-SPEAKER HOUSE AND MONITOR SYSTEMS, DEMANDS OF STEREO IN-EAR MONITORING, 3 SPEAKER LCR IMAGING, ADVANCED GROUPING AND AUTOMATION. THE DESIGN ENSURES ON-THE-ROAD DURABILITY, A CLEAR LAYOUT FOR EASY WALK UP AND GO OPERATION, AND NO-COMPROMISE AUDIO PERFORMANCE.

INPUTS AND OUTPUTS
3 STANDARD FRAME SIZES: 32+4, 40+4, 48+4 (MONO + STEREO CHANNELS)
OPTIONAL ‘B’ STEREO VERSIONS: 28+8, 36+8, 44+8 (MONO + STEREO CHANNELS)
32, 40, 48 MONO MIC/LINE INPUTS WITH INSERTS AND DIRECT OUTPUTS
4 DUAL STEREO LINE INPUTS STANDARD (8 OPTIONAL)
24 INPUT SIDECAR TO EXPAND TO A MAXIMUM 96 INPUTS
MAIN LEFT, RIGHT AND CENTRE OUTPUTS WITH INSERTS, CENTRE CONFIGURABLE AS THE ENGINEERS MONITOR
8 GROUPS, 16 AUXES: GROUP/AUX 1-8 AND AUX 9-16 WITH FADERS AND INSERTS, AUX 1-8 WITH ROTARIES
MATRIX 1-8 WITH INSERTS AND EXTERNAL INPUTS
2-TRACK MONITOR INPUT AND RECORDING SEND
STEREO HEADPHONES AND LOCAL MONITORS
DUAL MIC TALKBACK INPUT AND CLEARCOM COMPATIBLE INTERCOM INTERFACE

GROUPS AND AUTOMATION
8 VCA GROUPS WITH MUTES AND PAFL MONITORING
8 AUDIO GROUPS WITH LCRPLUS™ SUB GROUPING
8 MUTE GROUPS
128 SNAPSHOT MEMORIES FOR MUTE AND/OR VCA ASSIGNMENT STORE, RECALL AND PREVIEW
SOLO-IN-PLACE WITH CLEAR ALL AND TOGGLE LAST
MIDI MUTE ON/OFF, SNAPSHOT RECALL AND DUMP IN/OUT CONTROL
CHANNELS CAN BE MADE SAFE INDEPENDENTLY FROM THE AUTOMATION AND SOLO-IN-PLACE
PC WINDOWS™ ARCHIVER PROGRAM AVAILABLE FREE FROM ALLEN & HEATH

PROCESSING AND CONTROL
4-BAND FULL SWEEP MONO EQ WITH FULLY PARAMETRIC MIDS, 4-BAND FIXED FREQUENCY STEREO EQ
SWEEPABLE HIGH PASS FILTER
LCR PLUS 3 SPEAKER IMAGING SYSTEM
PROTECTED MODE SWITCHING TO CONFIGURE THE CONSOLE FOR FOH OR MONITOR APPLICATION
INTELLIGENT PAFL SYSTEM WITH ALL-CLEAR, PFL/IN-PLACE AFL, PRIORITY, AUTO-CANCEL/ADD MODE…
ASSIGNABLE TALKBACK AND INTERCOM
1KHZ TONE AND PINK NOISE GENERATOR FOR SYSTEM LINE-UP AND TESTING
FULL CONSOLE MONITORING AND EXTENSIVE METERING OF INPUTS, MIX BUSSES AND OUTPUTS

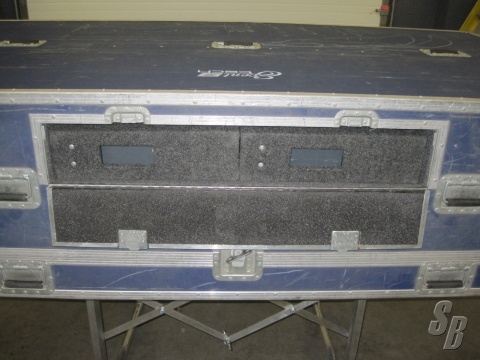

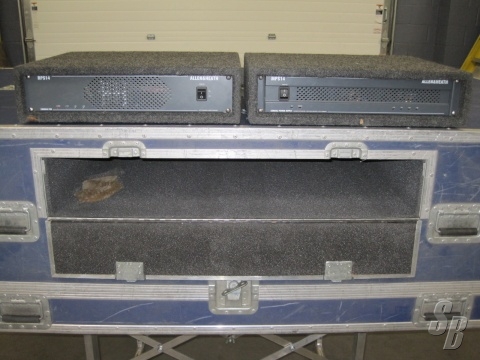

EXTRAS: INCLUDES ROAD CASE AND 2 EXTERNAL POWER SOURCES.

MODIFICATIONS: NO MODIFICATIONS, ANY & ALL MAINTENANCE DONE WITH FACTORY AUTHORIZED PARTS & SERVICE.

HISTORY: USED IN THE MD/DC/VA AREA FOR EVENT PRODUCTION SOUND REINFORCEMENT.

COMMENTS: CONSOLE IS IN SUPERB CONDITION AND IS READY FOR USE!

THIS UNIT WAS NEVER TOURED
