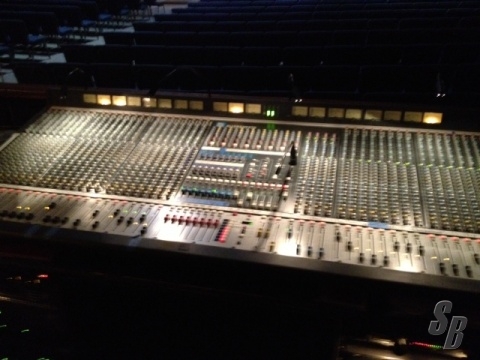

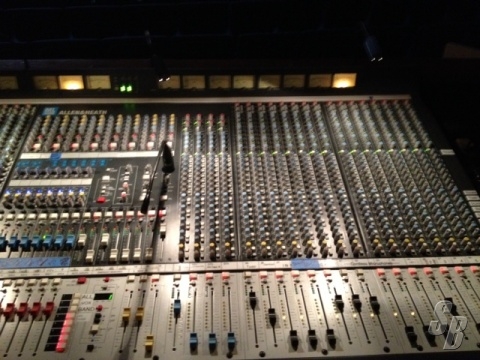

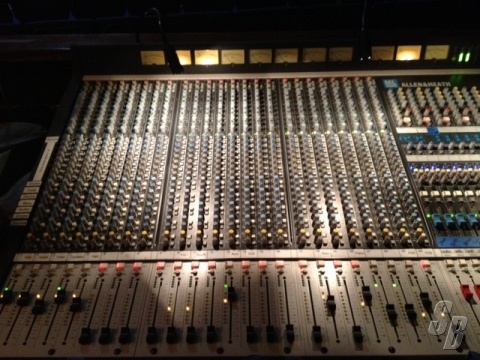

ALLEN & HEATH ML5000
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Listing last update on September 09, 2013 - Viewed 116 times

ALLEN & HEATH ML5000 (YOM: 2001) (S#: TBD) SUPERB (8-9)

FEATURES: INSTALLED NEW AT A CHURCH 01/2002 AND NEVER MOVED, WILL BE USED UNTIL NEW SOUND SYSTEM ARRIVES APPROXIMATELY END OF SEPT.. VERY MINOR ISSUES, SOME BULBS IN VU METERS, ONE INTERMITTENT BACK LIGHT ON MUTE BUTTON.
ML5000 KEY FEATURES
THE ALLEN & HEATH ML5000 IS A LARGE FORMAT VCA EQUIPPED DUAL FUNCTION LIVE SOUND CONSOLE. IT
CAN BE QUICKLY CONFIGURED FOR FRONT-OF-HOUSE (FOH) OR STAGE MONITOR MIXING. AS ONE CONSOLE
SUITABLE FOR BOTH APPLICATIONS IT IS EQUALLY WELL SUITED TO INSTALLATION, RENTAL AND TOURING. IT OFFERS AN
IO CAPABILITY AND FEATURE SET THAT SATISFIES THE LATEST TRENDS IN LIVE SOUND ENGINEERING, IN PARTICULAR
THE GROWING NUMBER OF INPUTS AND OUTPUTS FOR MULTI-SPEAKER HOUSE AND MONITOR SYSTEMS, DEMANDS
OF STEREO IN-EAR MONITORING, 3 SPEAKER LCR IMAGING, ADVANCED GROUPING AND AUTOMATION. THE
DESIGN ENSURES ON-THE-ROAD DURABILITY, A CLEAR LAYOUT FOR EASY WALK UP AND GO OPERATION, AND NOCOMPROMISE AUDIO PERFORMANCE.
INPUTS AND OUTPUTS
• 3 STANDARD FRAME SIZES: 32+4, 40+4, 48+4 (MONO + STEREO CHANNELS)
• OPTIONAL ‘B’ STEREO VERSIONS: 28+8, 36+8, 44+8 (MONO + STEREO CHANNELS)
• 32, 40, 48 MONO MIC/LINE INPUTS WITH INSERTS AND DIRECT OUTPUTS
• 4 DUAL STEREO LINE INPUTS STANDARD (8 OPTIONAL)
• 24 INPUT SIDECAR TO EXPAND TO A MAXIMUM 96 INPUTS
• MAIN LEFT, RIGHT AND CENTRE OUTPUTS WITH INSERTS, CENTRE CONFIGURABLE AS THE ENGINEERS MONITOR
• 8 GROUPS, 16 AUXES: GROUP/AUX 1-8 AND AUX 9-16 WITH FADERS AND INSERTS, AUX 1-8 WITH ROTARIES
• MATRIX 1-8 WITH INSERTS AND EXTERNAL INPUTS
• 2-TRACK MONITOR INPUT AND RECORDING SEND
• STEREO HEADPHONES AND LOCAL MONITORS
• DUAL MIC TALKBACK INPUT AND CLEARCOM COMPATIBLE INTERCOM INTERFACE
GROUPS AND AUTOMATION
• 8 VCA GROUPS WITH MUTES AND PAFL MONITORING
• 8 AUDIO GROUPS WITH LCRPLUS™ SUB GROUPING
• 8 MUTE GROUPS
• 128 SNAPSHOT MEMORIES FOR MUTE AND/OR VCA ASSIGNMENT STORE, RECALL AND PREVIEW
• SOLO-IN-PLACE WITH CLEAR ALL AND TOGGLE LAST
• MIDI MUTE ON/OFF, SNAPSHOT RECALL AND DUMP IN/OUT CONTROL
• CHANNELS CAN BE MADE SAFE INDEPENDENTLY FROM THE AUTOMATION AND SOLO-IN-PLACE
• PC WINDOWS™ ARCHIVER PROGRAM AVAILABLE FREE FROM ALLEN & HEATH
PROCESSING AND CONTROL
• 4-BAND FULL SWEEP MONO EQ WITH FULLY PARAMETRIC MIDS, 4-BAND FIXED FREQUENCY STEREO EQ
• SWEEPABLE HIGH PASS FILTER
• LCRPLUS™ 3 SPEAKER IMAGING SYSTEM
• PROTECTED MODE SWITCHING TO CONFIGURE THE CONSOLE FOR FOH OR MONITOR APPLICATION
• INTELLIGENT PAFL SYSTEM WITH ALL-CLEAR, PFL/IN-PLACE AFL, PRIORITY, AUTO-CANCEL/ADD MODE…
• ASSIGNABLE TALKBACK AND INTERCOM
• 1KHZ TONE AND PINK NOISE GENERATOR FOR SYSTEM LINE-UP AND TESTING
• FULL CONSOLE MONITORING AND EXTENSIVE METERING OF INPUTS, MIX BUSSES AND OUTPUTS

EXTRAS: ALLEN & HEATH MPS14 POWER SUPPLY

MODIFICATIONS: CURRENTLY IN USE AND WORKING GREAT.

HISTORY: HAS ONLY BEEN USED IN A CHURCH, HAS NOT BEEN MOVED SINCE INSTALLED WHEN NEW.

COMMENTS: VU METER LIGHTS INOP ON SOME. ONE MUTE BUTTON BACK LIGHT INTERMITTENT.

THIS UNIT WAS NEVER TOURED
