ID # 111901    CURRENT CATEGORY - CONSOLE/DIGITAL

For Sale: DIGICO D5 LIVE DIGITAL CONSOLE
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Viewed 381 times

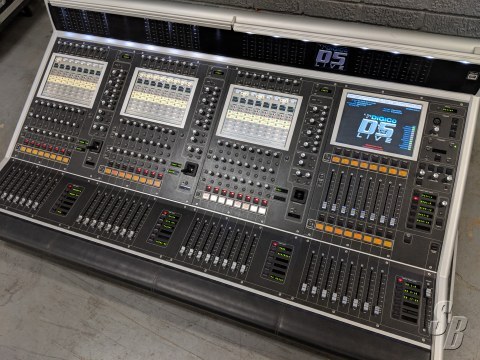

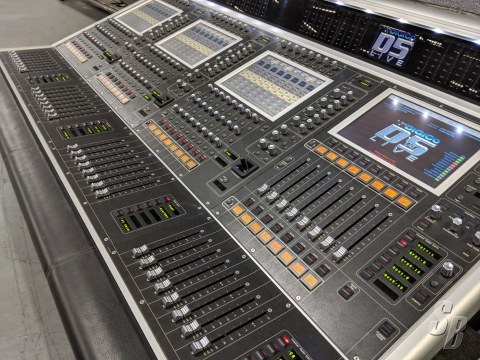

DIGICO D5 LIVE DIGITAL CONSOLE

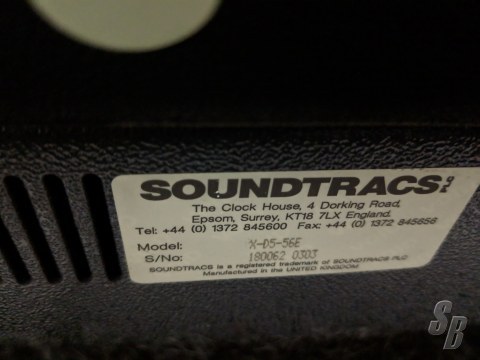

DIGICO D5 LIVE (YOM: ?) (S#: 180062-0303) SUPERB (8-9) FEATURES:

D5 LIVE : OVERVIEW

THE D5 LIVE IS THE DIGITAL MIXING SYSTEM THAT CHANGED THE PROFESSIONAL AUDIO INDUSTRY’S PERCEPTIONS OF WHAT A DIGITAL CONSOLE CAN DO, AND HOW IT SHOULD DO IT.

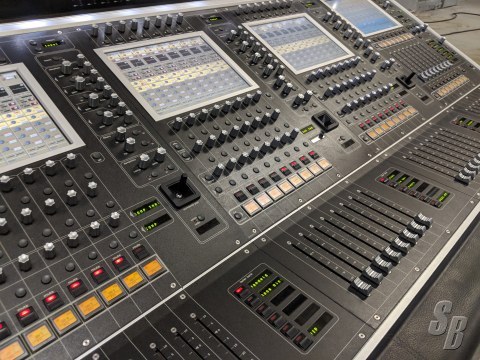

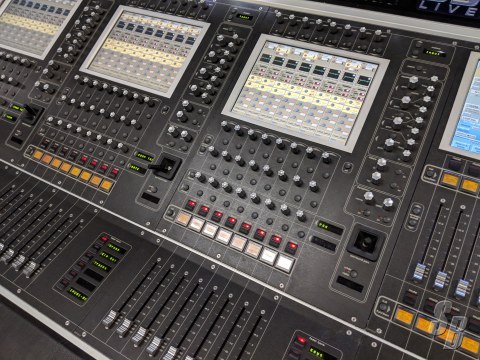

WORKSURFACE

THE D5 LIVE SOFTWARE GIVES YOU UNPARALLELED FLEXIBILITY IN CONFIGURING YOUR CONSOLE PRECISELY TO SUIT THE SHOW. THE CONTROL SURFACE CONSISTS OF THREE INPUT SECTIONS, EACH WITH THEIR OWN DEDICATED TOUCH SCREEN, 8 FADERS AND 6 INDIVIDUALLY SELECTABLE BANK SWITCHES ALLOWING MULTIPLE USER OPERATION. THE MASTER SECTION HAS ITS OWN TOUCH SCREEN WITH 16 FADERS PLUS MASTER AND TWO LOTS OF SELECTABLE BANK SWITCHES FOR INSTANT ACCESS TO GROUPS, AUXES, MATRIX AND CONTROL GROUPS.

ENGINE

THE ENGINE ITSELF IS INTEGRAL TO THE CONSOLE WORKSURFACE, ITS INTERNAL BUSSES CAN BE SET UP AS MONO OR STEREO AUXILIARIES AND MONO OR STEREO OR SURROUND BUSSES (THE CONSOLE IS FULLY 5.1-READY AS WELL AS FOR LCR(S), WITH THREE JOYSTICK SURROUND SOUND PANNERS FOR INSTANT SOUND PLACEMENT). AND YOU CAN INSTANTLY SELECT A BASIC SET-UP FOR EITHER FRONT-OF-HOUSE OR MONITOR MIXING. WITH BOTH TYPES OF CONSOLE SHARING THE SAME FIBRE OPTIC LOOP, AUTOMATIC GAIN TRACKING™ ALLOWS EITHER CONSOLE OPERATOR TO ALTER INPUT GAIN WITHOUT AFFECTING THE MIX ON EITHER CONSOLE.
ALL D5 SYSTEMS INCLUDES THE DIGITAL EFFECTS CARD WHICH ALLOWS YOU TO RUN UP TO SIX DIGITAL EFFECTS PER CHANNEL SIMULTANEOUSLY, INCLUDING DEDICATED REVERB ALGORITHMS, FLANGING, PHASING, DOUBLE TRACKING, VOCODER, DELAYS, DYNAMICS, COMPRESSION AND EQUALISATION FOR UP TO 7.1 SURROUND SOUND OUTPUTS AND UP TO TWELVE 28 BAND GRAPHIC EQUALISERS.
IT ALSO INCLUDES THE INSERTABLE PROCESSING CHANNELS WHICH PROVIDE A TOTAL OF 32 IPCS, EACH COMPLETE WITH 6 BANDS OF FULLY PARAMETRIC EQUALISATION, A FULLY FEATURED COMPRESSOR / LIMITER AND DIGITAL DELAY OF UP TO 512 MILLISECONDS.
IN A COMPLETE HOUSE-AND-MONITOR D5 LIVE SYSTEM, GAIN TRACKING™, A WORLD FIRST FOR DIGICO, ALLOWS EITHER CONSOLE OPERATOR TO CHANGE ANY INPUT GAIN WITHOUT AFFECTING THE SOUND BALANCE ON EITHER CONSOLE - GAIN TRACKING™ IS SELECTABLE ON EACH CHANNEL INDEPENDENTLY ON EACH CONSOLE.

I/O

THE D5 LIVE HAS FOUR MADI CONNECTIONS AND TWO OPTICAL (THE SECOND OPTICAL ALLOWING FOR A REDUNDANT LOOP) THIS ALLOWS A COMBINATION OF UP TO FOUR OF ANY DIGICO I/O RACKS TO BE USED WITH THE CONSOLE. THUS, GIVING THE ABILITY TO CONNECT UP TO 224 INPUTS AND 224 OUTPUTS.

MOST POPULAR SYSTEMS:

THE 112 EX SYSTEM
COMPRISES THE CONSOLE WORKSURFACE PLUS FLIGHTCASE, A 40 ANALOGUE I/O AND 16 AES EBU I/O LOCAL DIGIRACK, TWO 56-IN, 8-OUT STAGE DIGIRACKS A 150MTR. DRUM OF FIBRE OPTIC CABLE AND A 5MTR. FIBRE OPTIC CONNECTION BETWEEN THE TWO STAGE DIGIRACKS.

THE FMX PACKAGE
GIVES A FULL 112 MIC INPUTS ON STAGE, WITH A WORKSURFACE FOR MONITORS AND A SECOND WORKSURFACE FOR FRONT-OF-HOUSE, BOTH WITH THEIR OWN LOCAL DIGIRACKS. THREE 150MTR. DRUMS OF FIBRE OPTIC CABLE ARE PROVIDED TO ALLOW FOR A DIGITAL SPLIT AND FULL REDUNDANCY OF YOUR FIBRE MULTICORE. THE D5 LIVE FMX PACKAGE CAN ALSO BE SPLIT INTO TWO INDEPENDENT, FULLY-FEATURED D5 LIVE 56 EX PACKAGES, THEREFORE MAXIMISING RENTAL FLEXIBILITY.



EXTRAS:

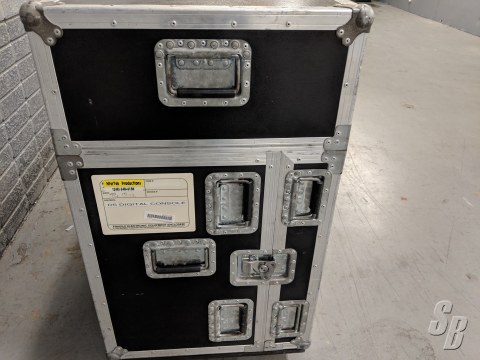

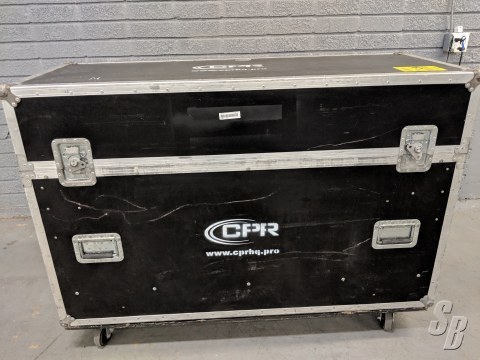

THIS UNIT COMES WITH A ROAD CASE WITH DOGHOUSE AND CASTERS

MODIFICATIONS:

NONE

HISTORY:

CORPORATE EVENTS

COMMENTS:

NONE

THIS UNIT WAS NEVER TOURED

WWW.SOUNDBROKER.COM LINKING BUYERS AND SELLERS TOGETHER SINCE 1997 FOR NEW AND USED PROFESSIONAL AUDIO, LIGHTING, STAGING, PROJECTORS, AND VIDEO EQUIPMENT.

Additional Details
ID#: 111901
Listing Type:
Standard
Model: D5 LIVE
Manufacturer: DIGICO
Condition: SUPERB (8-9)
Shipping Info: 0.00 lbs.,
Seller's Location: MO, USA
Updated: November 17, 2018
M.S.R.P.: $0.00
Offered at: $9,650.00
