For Sale: AVID SC48
[PRICED PER UNIT - 1 AVAILABLE AT TIME OF LISTING]
Listing last update on July 20, 2020 - Viewed 82 times

AVID SC48 (YOM: 20??) (S#: TBD) SUPERB (7-8)

COMES WITH:

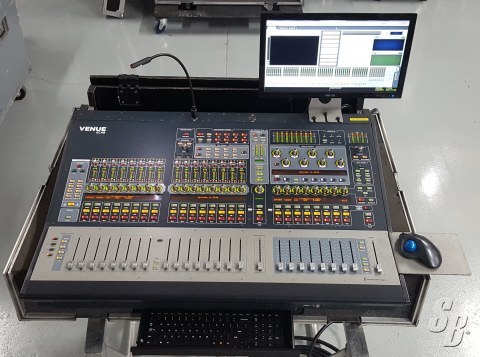

• MONITOR DISPLAY,
• SPEAKER MONITOR STAND
• TRACK BALL.
• TRACK BALL MOUNT BUILT INTO CASE
• COMES WITH SC48 AO16 ANALOG OUTPUT CARD

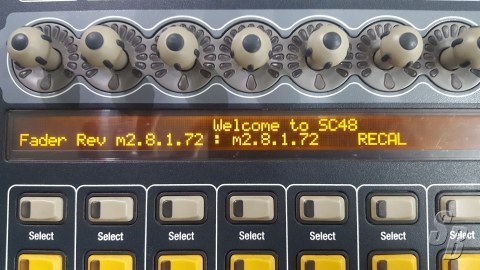

• ALSO INCLUDING A SCREEN SHOT SHOWING REV M2.8.1.72

MODIFICATIONS: NO MODIFICATIONS.

HISTORY: LIVE SOUND PRODUCTION CO.

COMMENTS: NO PROBLEMS

THIS UNIT WAS TOURED

FEATURES FOR VENUE SC48 HARDWARE SPECIFICATIONS:

• MAXIMUM HEIGHT (FRONT)
• MAXIMUM HEIGHT (REAR) 3.9 INCHES (100 MM)
• 7.3 INCHES (186 MM)
• MAXIMUM WIDTH 38.95 INCHES (989 MM) WITH ENDCAPS
• MAXIMUM DEPTH 28.15 INCHES (715 MM)
• WEIGHT 125 LBS (56.7 KG)
• POWER REQUIREMENTS 100–240 V, 50–60 HZ, 200 W
• USB PORTS (5) USB 2.0
• IEEE-1394 PORT FIREWIRE (FOR PRO TOOLS ONLY)
• GPI PORT DB9 FEMALE
• FOOTSWITCH CONNECTORS (2) 1/4-INCH TRS
• MIDI IN/OUT 5-PIN DIN FEMALE
• WORD CLOCK IN/OUT BNC FEMALE
• VGA PORT DB-15 MINI-FEMALE (1024 X 768 RESOLUTION, MIRRORED DISPLAY MODE)
• DVI PORT DVI FEMALE (1024 X 768 RESOLUTION, MIRRORED DISPLAY MODE)
• ECX ETHERNET CONTROL RJ-45 (FOR ECX REMOTE CONTROL)
• CONSOLE LIGHT CONNECTORS (2) XLR3-F

SC48 GENERAL AUDIO SPECIFICATIONS:

• INTERNAL SAMPLE FREQUENCY 48 KHZ
• EXTERNAL SAMPLE FREQUENCY 48 KHZ +/-10 PPM (WORD CLOCK INPUT)
• PROCESSING DELAY LESS THAN 2.3 MS (48 CHANNELS, STAGE INPUT THROUGH L-R BUS TO STAGE OUTPUT)
• INTERNAL PROCESSING UP TO 48-BIT, FIXED POINT (288 DB INTERNAL DYNAMIC RANGE)
• FREQUENCY RESPONSE +/-0.2 DB (22 HZ – 20 KHZ BW, RELATIVE TO 1 KHZ)
• DYNAMIC RANGE 108 DB TYP
• CROSSTALK -100 DB TYP (ADJACENT STAGE INPUTS TO L-R BUS, @ 1KHZ)
• RESIDUAL OUTPUT NOISE -90 DBU TYP (20 HZ – 20 KHZ BW)



EXTRAS: NONE.
