MEYER SOUND MSL4 (YOM: ?) (S#: TBD) GOOD (7-8) MUST SELL--MAKE AN OFFER
[PRICED PER UNIT - 6 AVAILABLE AT TIME OF LISTING]
Listing last update on April 10, 2012 - Viewed 162 times

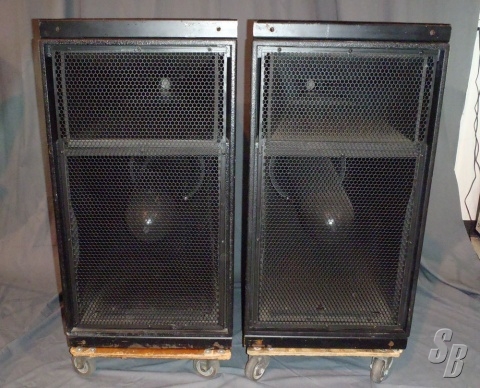

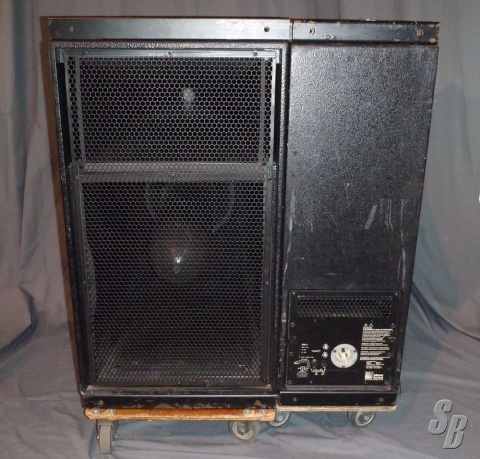

MEYER SOUND MSL4 (YOM: 2002, 97,95) (S#:195A1058, 02152915,02152917, 97155204, TBD) GOOD (7-8)

FEATURES: GOOD CONDITION. THESE ALL HAVE A FEW SCRAPES AND BRUISES BUT HAVE BEEN TOUCHED UP. THESE FUNCTION PERFECTLY. THEY ARE MISSING THE GRILLE FOAM BUT HAVE THE METAL GRILLES. THEY DO NOT COME WITH POWER CABLES.

THE MEYER SOUND MSL-4 IS A HIGH-Q, ARRAYABLE LOUDSPEAKER DESIGNED FOR A WIDE VARIETY OF MEDIUM- TO LONG-THROW APPLICATIONS. THE MSL-4å„¡ TIGHTLY DEFINED COVERAGE PATTERN ALLOWS SEAMLESS INTEGRATION INTO ARRAY CLUSTERS, WHICH MAY BE TIGHT-PACKED FOR LONG THROW OR SPLAYED FOR BROADER COVERAGE.

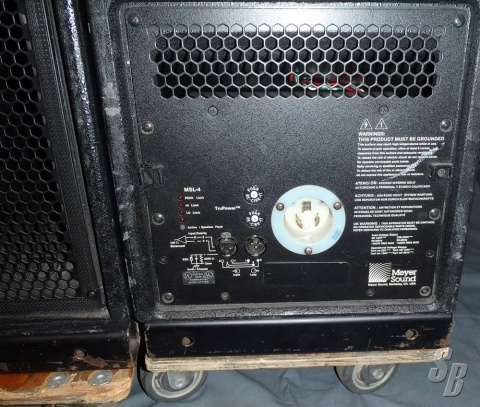

THE MSL-4窶儡 BUILT-IN POWER AMPLIFIER AND CONTROL ELECTRONICS ARE CONTAINED IN AN EASILY ACCESSIBLE, FIELD-REPLACEABLE MODULE. THE AMPLIFIER, A CLASS AB/H DESIGN WITH COMPLEMENTARY MOSFET OUTPUT STAGES, PRODUCES PEAK OUTPUT OF 1240 WATTS (620 WATTS PER CHANNEL). THE INTEGRATED CONTROL ELECTRONICS INCLUDES TRUPOWER LIMITING FOR DRIVER PROTECTION, AS WELL AS ACTIVE PHASE CORRECTION CIRCUITS TO MAINTAIN EXCEPTIONALLY COHERENT PHASE RESPONSE. SUPERIOR COMMON-MODE REJECTION FROM LASER-TRIMMED DIFFERENTIAL INPUTS ALLOWS VERY LONG SIGNAL RUNS. AN INTELLIGENT AC POWER SUPPLY AFFORDS AUTOMATIC VOLTAGE SELECTION, EMI FILTERING, SOFT CURRENT TURN-ON AND SURGE SUPPRESSION TO ENSURE SYSTEM STABILITY AND LONG-TERM RELIABILITY.

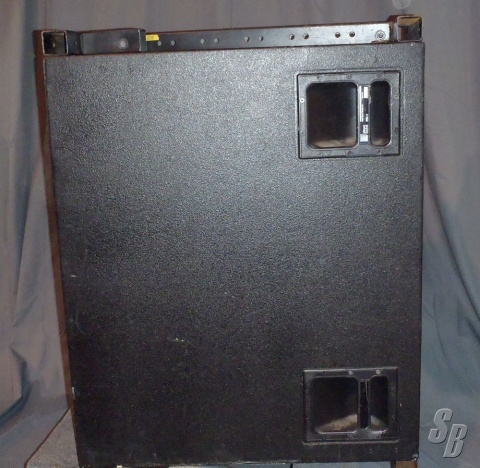

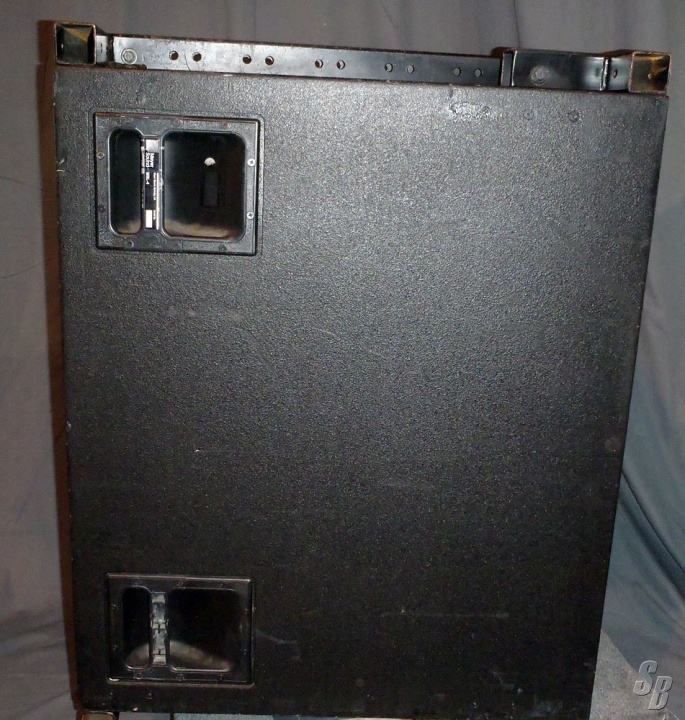

ALL COMPONENTS ARE HOUSED IN A RUGGED, MULTI-PLY HARDWOOD CABINET WITH A BLACK TEXTURED FINISH. THE MSL-4 COMES STANDARD WITH SIX AIRCRAFT PAN FITTINGS (RING AND STUD), WITH QUICKFLY RIGGING OPTIONAL.

THE MSL-4 IS COMPATIBLE WITH MEYER SOUND窶儡 RMS REMOTE MONITORING SYSTEM.

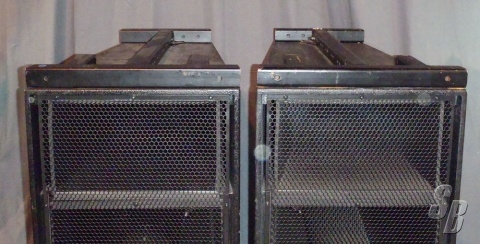

EXTRAS: EACH COMES WITH FLYWARE FOR THE TOP AND BOTTOM OF THE EACH SPEAKER.

MODIFICATIONS: COMES COMPLETE WITH FLYWARE.

HISTORY: USED IN VARIOUS RENTAL APPLICATIONS. THEY WERE NEVER ABUSED.

COMMENTS: NO PROBLEMS.

THIS UNIT WAS NEVER TOURED
